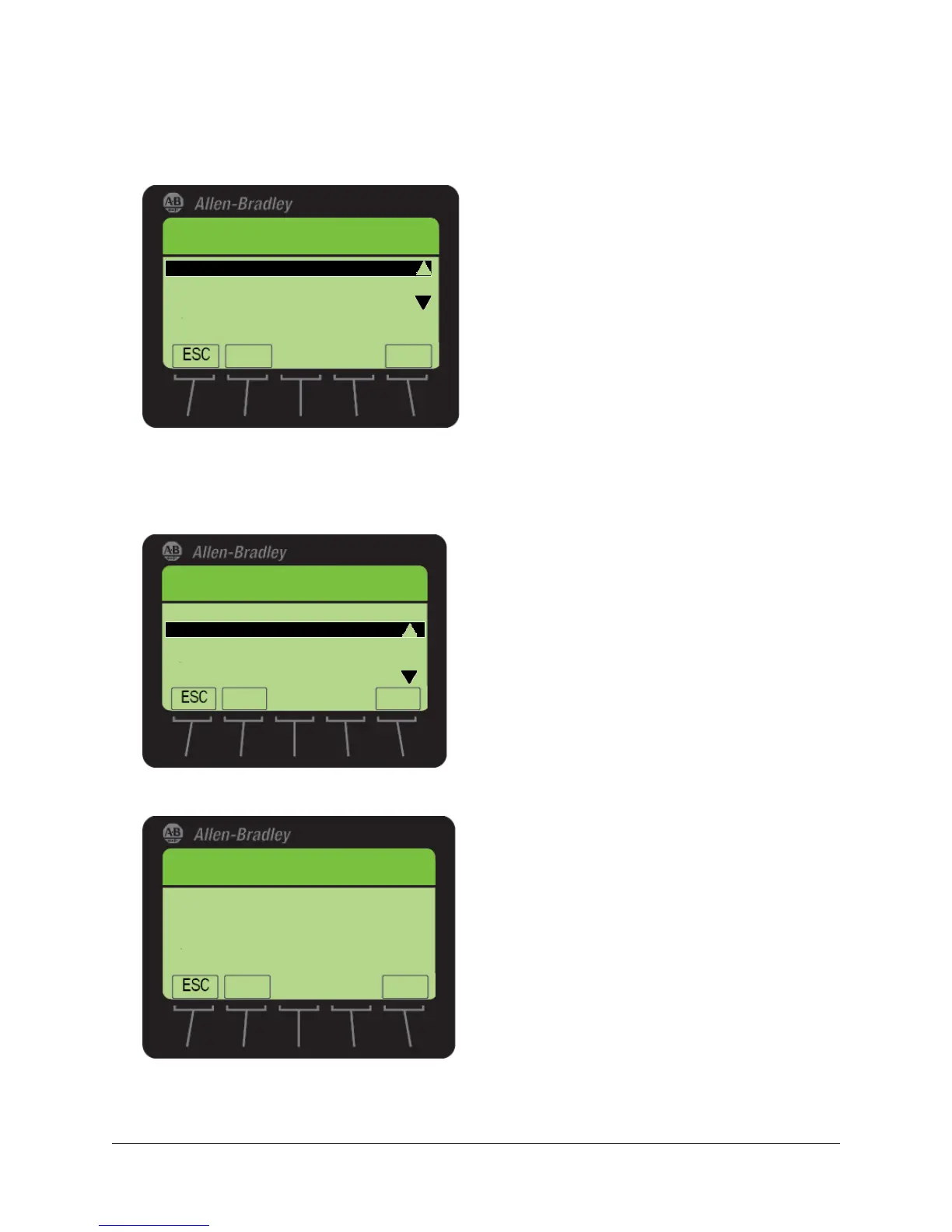

12. Pressing the ‘ENTER’ soft key in the previous step has led you to a new screen, which allows you to select the type of
startup you wish to perform. For this lab session, we will choose ‘General Startup’. This is highlighted by default. Press
the ‘ENTER’ soft key located on the top row of the HIM keypad to make this your selection.
PowerFlex 755
Startup
ABORT ENTER
General Startup
Appl Specific
Exit Startup
Setting the Motor Control Mode
13. Pressing the ‘ENTER’ soft key in the previous step has led you to the ‘General Startup Main Menu’. You will go through
steps listed in this menu to configure your drive. Press ‘ENTER’ soft key to enter the first section ‘Motor Control’.
ABORT ENTER
General Startup
Motor Control
Motor Data
Feedback
Main Menu
Limits
Complete these steps in order:
14. The introduction screen provides information about the ‘Motor Control section. Press the ‘ENTER’ soft key to continue.
This section selects the type
of Motor Control the drive will
use.
Press ENTER
ABORT ENTER
Startup
Motor Control
To Next Page
