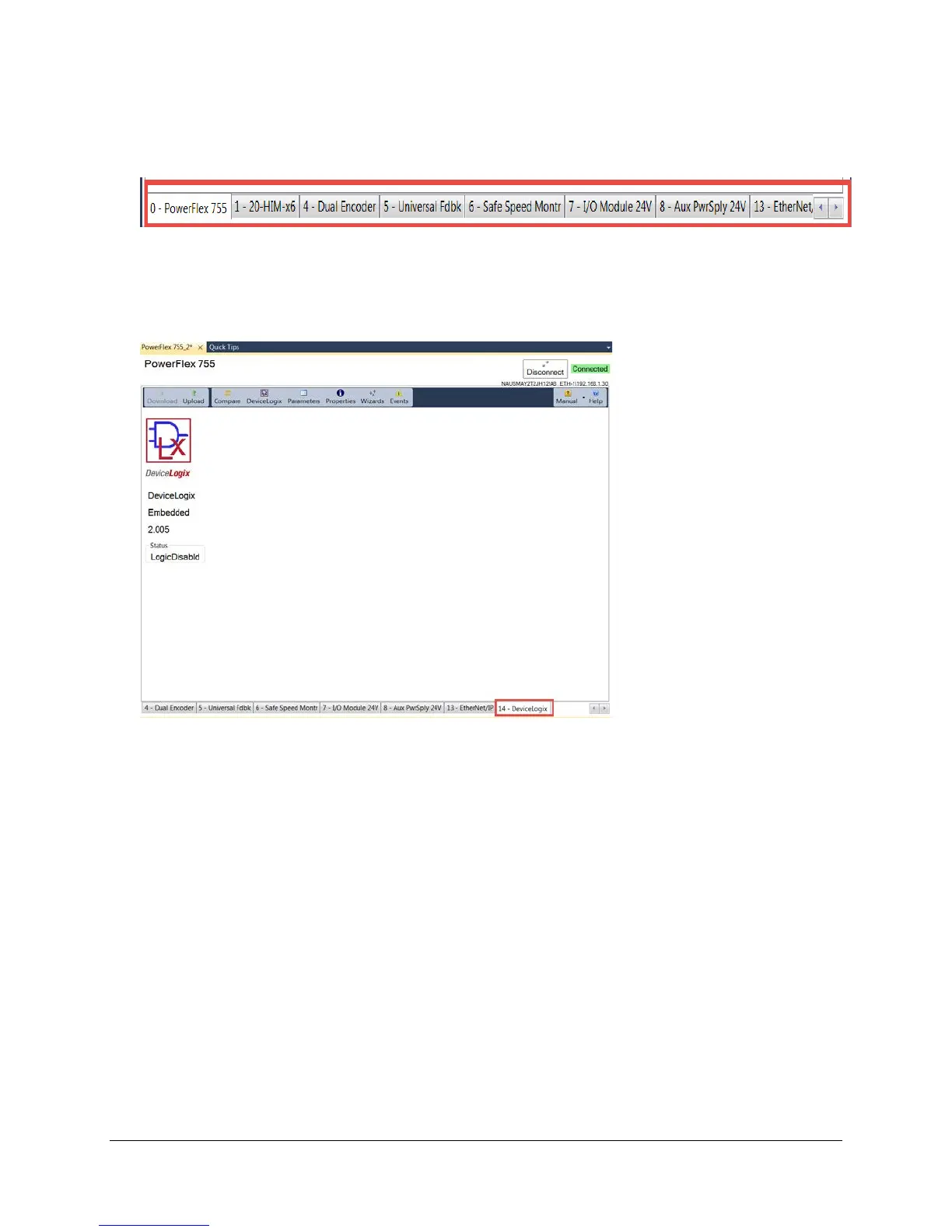

16. Observe the multiple tabs available for each optional module (card) in the drive. These tabs indicate the function of the
module (card) and display important information, such as voltage and amp ratings, series, revision, and operational
status. Your Demo has only peripherals 0, 1, and 7.
Take some time to explore them.
17. You can display the status view for any peripheral (e.g. the DeviceLogix adaptor or 20-HIM-x6) by selecting the
peripheral’s tab. If your demo box does not include the stated cards, use the available tabs and explore the peripherals
on your demo.
18. After checking peripherals 0, 1, and 7; return to peripheral ‘0-PowerFlex 755’.
