Click Next > to continue, viewing the sequential process, continue to click Next > until you reach the Start / Stop step of the
wizard.

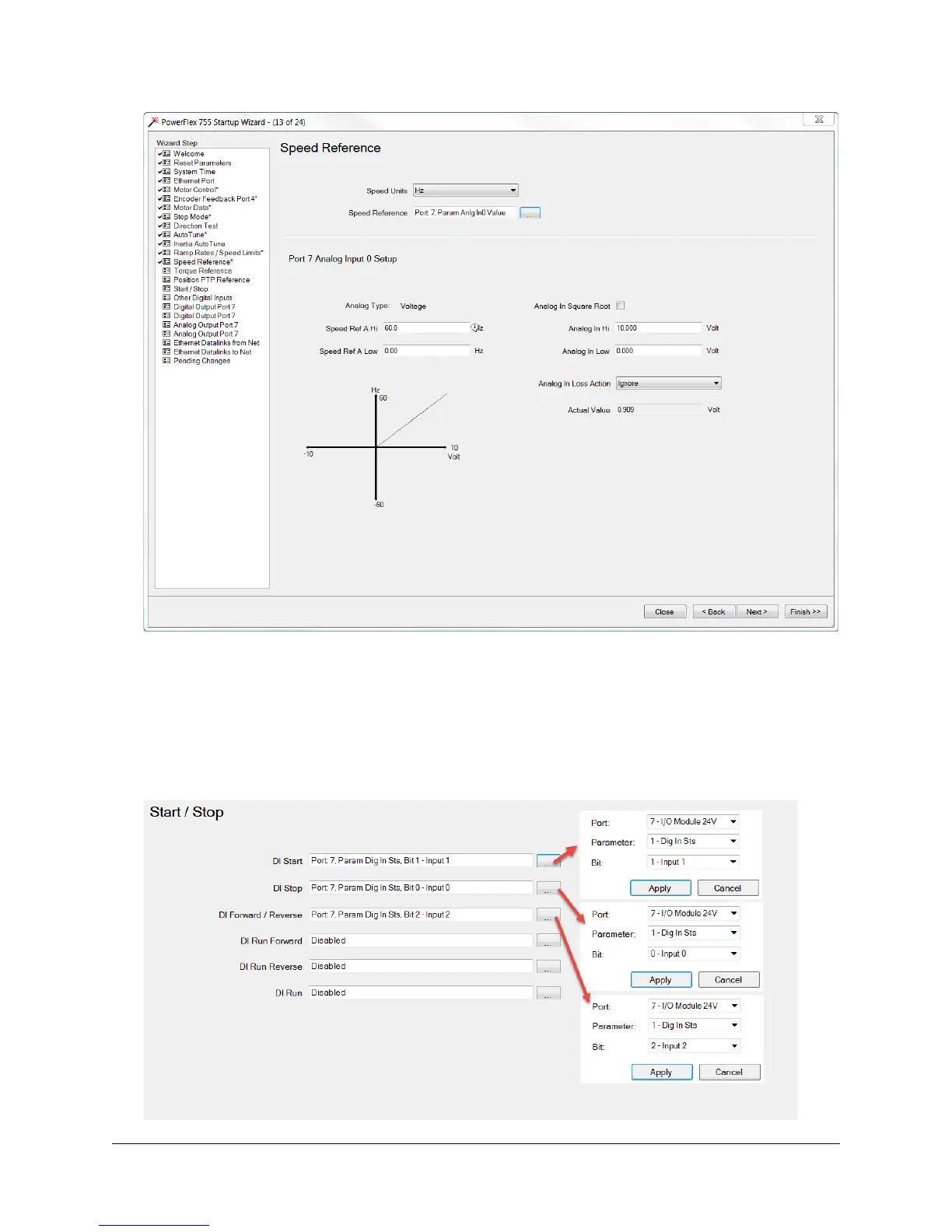

39. The Start / Stop step of the drive is next. Make the selections below:
 DI Start: Port 7 [I/O Module 24 V] Parameter 1 [Dig In Sts] Bit 1 [Input 1]
 DI Stop: Port 7 [I/O Module 24 V] Parameter 1 [Dig In Sts] Bit 0 [Input 0]
 DI Forward / Reverse: Port 7 [I/O Module 24 V] Parameter 1 [Dig In Sts] Bit 2 [Input 2]
