73 of 136
Click Next > to the Other Digital Inputs step of the wizard.

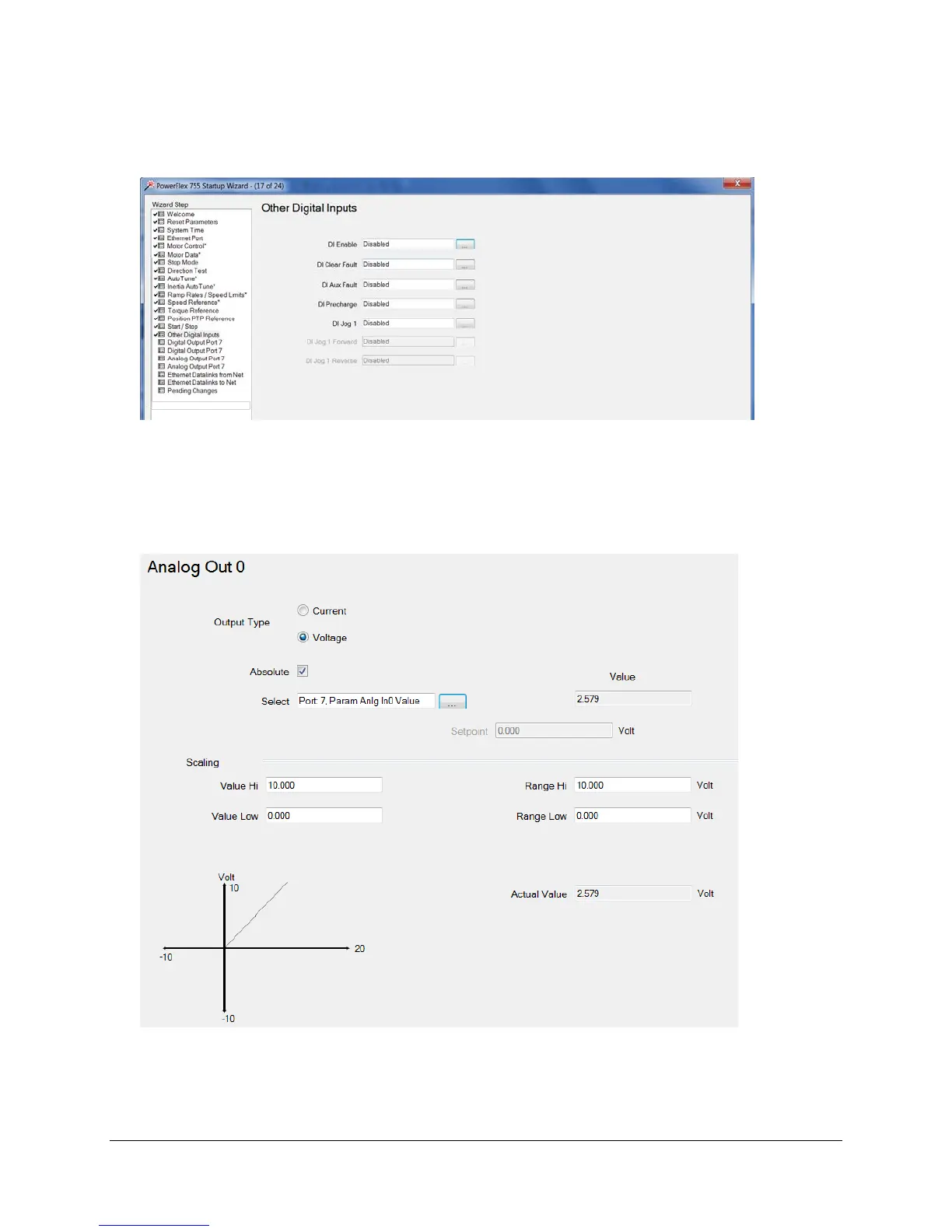

40. The Other Digital Inputs step is next. No changes need to be made here.
Click Next > to continue to ‘Analog Output Port 7’ ‘Analog Out 0’
Note: There are other digital inputs available to the user; however the wizard shows the commonly programmed
inputs. All the available digital inputs can be accessed via the HIM or software tool. See the user manual for those
parameter numbers.
41. Set your analog output to read the voltage from the drive by following the capture
Note: Port: 7 – I/O Module 24V. Parameter 50 – Anlg In0 Value
42. Continue to click Next > until you reach the Pending Changes step of the wizard.
