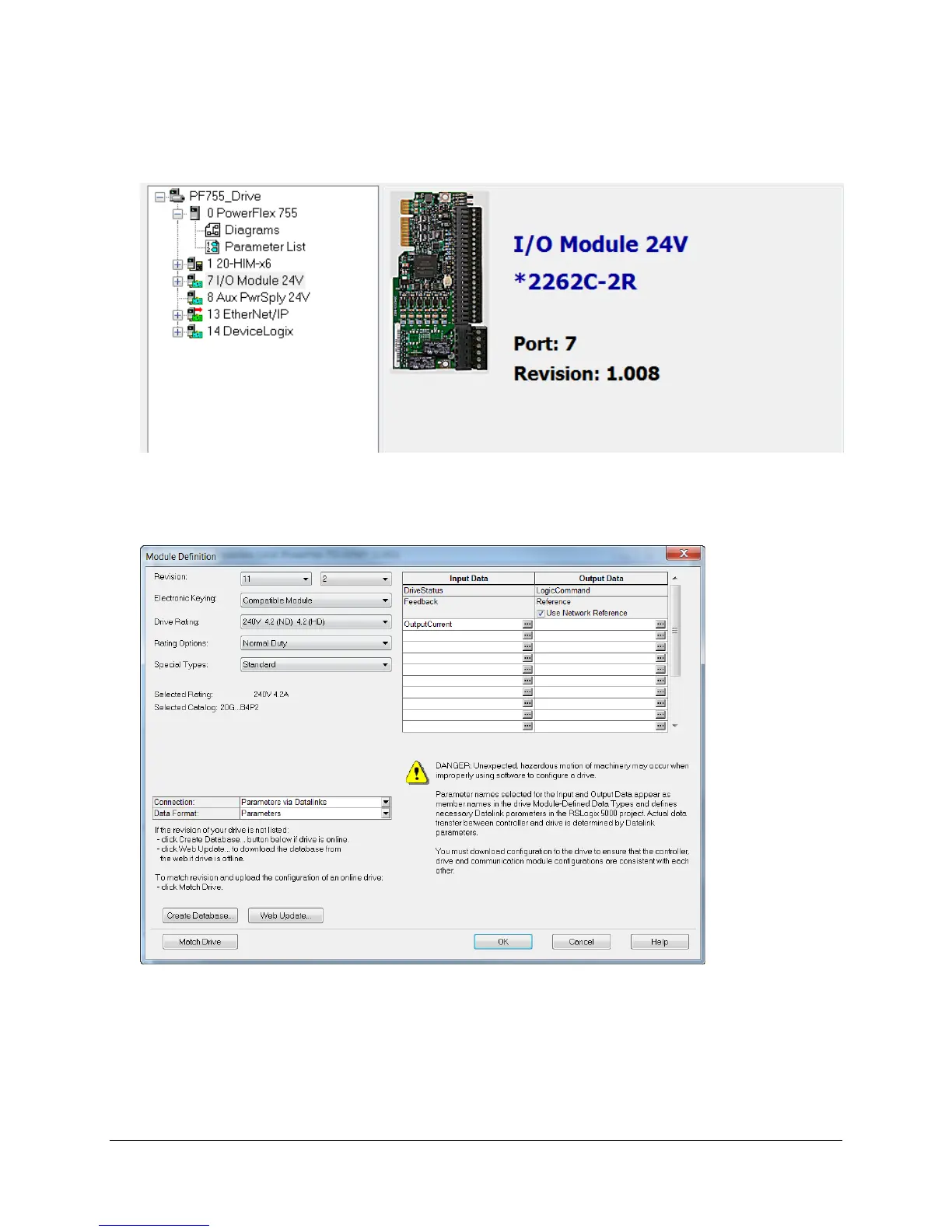

13. Observe the multiple tabs available for each optional peripheral in the drive. These tabs indicate the
function of each module and display important information such as: port, voltage and amp ratings,
series, and revision. Click on each port peripheral to review.
NOTE: Your window may be different from pictured image as demo boxes vary.
14. Leave the Drive tab and proceed to the General tab. Within the Module Definition section of the General
tab, click the “Change…” button to open the Module Definition window.
Within the Module Definition window, you can perform the following actions:
Set the Revision of the drive firmware, and set the Electronic Keying
Select the Drive Rating, Rating Options, and Drive Type
Create database files from the online drive or download database files from the web
Perform a full or Partial Drive Match
Configure the input and output datalinks
