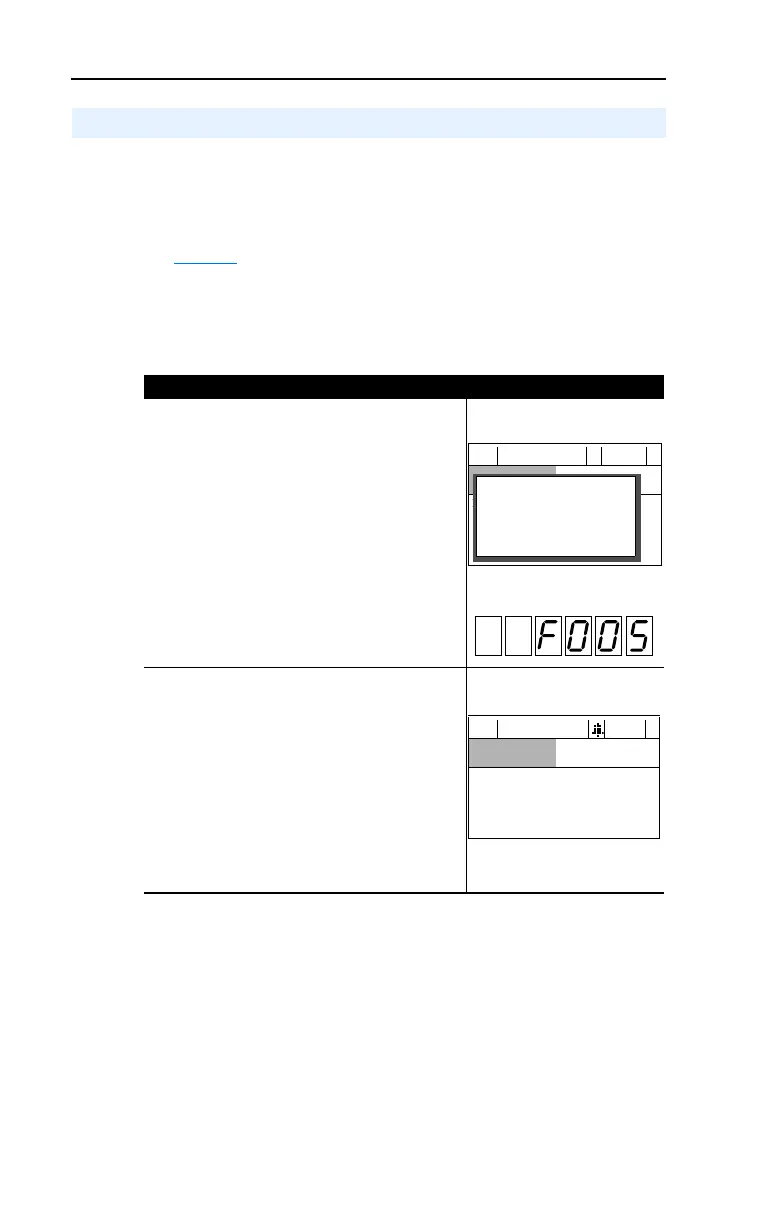

4-2 Troubleshooting
The condition or state of your drive is constantly monitored. Any
changes will be indicated through the LEDs and/or the HIM (if present).
LED Indications
See page 2-2 for information on LED status indicators.
HIM Indication
The LCD and LED HIMs also provide visual notification of a fault or
alarm condition.
Drive Status
Condition Display
Drive is indicating a fault.
The LCD HIM immediately reports the fault condition
by displaying the following.
“Faulted” appears in the status line
Fault number
Fault name
Time that has passed since fault occurred
Press Esc to regain HIM control.
The LED HIM reports the fault condition by displaying
the specific fault code.
LCD HIM
LED HIM
Drive is indicating an alarm.
The LCD HIM immediately reports the alarm condition
by displaying the following.
Alarm name (Type 2 alarms only)
Alarm bell graphic
LCD HIM
LED HIM
No indication.
F-> Faulted Auto
0.0
Hz
Main Menu:
Diagnostics
Parameter
— Fault — F 5
OverVoltage
Time Since Fault
0000:23:52
F-> Power Loss Auto
0.0
Hz
Main Menu:
Diagnostics
Parameter
Device Select
