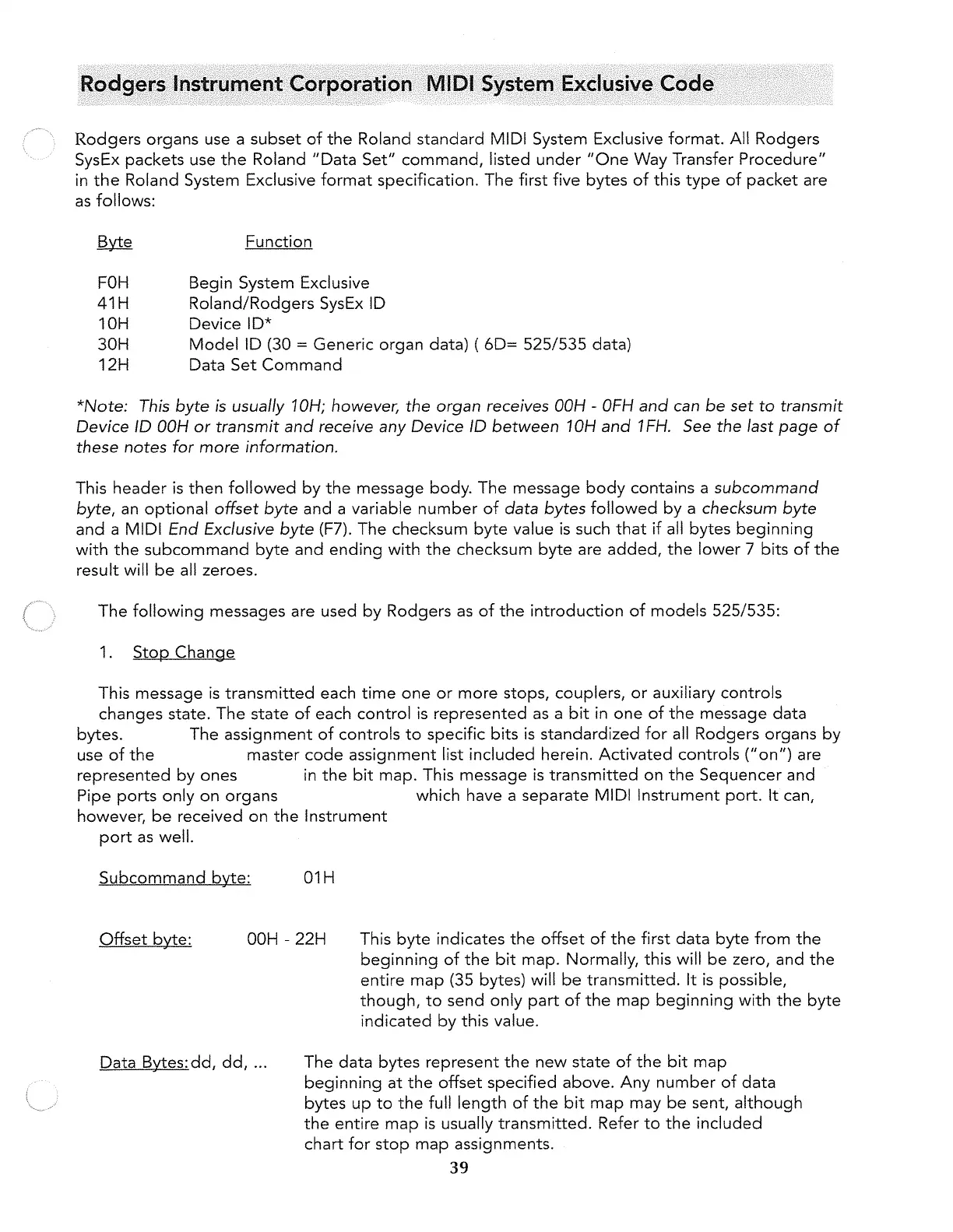

Rodgers
organs
use a
subset
of
the
Roland
standard
MIDI
System Exclusive format.
All
Rodgers
SysEx
packets
use
the
Roland
"Data
Set"
command,
listed
under
"One
Way Transfer
Procedure"
in
the
Roland System Exclusive
format
specification. The first five
bytes
of
this
type
of
packet
are
as follows:
~
Function
FOH
Begin System Exclusive
41
H
Roland/Rodgers
SysEx
ID
10H Device
ID*
30H Model
ID
(30 = Generic
organ
data) ( 6D=
525/535
data)
12H Data
Set
Command
*Note: This
byte
is
usually
10H;
however,
the
organ receives
OOH
-
OFH
and
can
be
set
to
transmit
Device
10
OOH
or
transmit
and
receive any Device 10
between
10H
and
1
FH.
See
the
last
page
of
these
notes
for
more
information.
This
header
is
then
followed by
the
message
body. The
message
body
contains a
subcommand
byte,
an optional
offset
byte
and
a variable
number
of
data
bytes
followed by a checksum
byte
and
a
MIDI
End Exclusive
byte
(F7). The checksum
byte
value
is
such
that
if
all
bytes
beginning
with
the
subcommand
byte
and
ending
with
the
checksum
byte
are
added,
the
lower 7 bits
of
the
result
will
be
all
zeroes.
The
following
messages
are
used
by Rodgers as
of
the
introduction
of
models
525/535:
1.
Stop
Change
This
message
is
transmitted
each
time
one
or
more
stops,
couplers,
or
auxiliary controls
changes
state.
The
state
of
each
control
is
represented
as a bit
in
one
of
the
message
data
bytes. The
assignment
of
controls
to
specific bits
is
standardized
for
all
Rodgers
organs
by
use
of
the
master
code
assignment
list included herein. Activated controls
("
on") are
represented
by
ones
in
the
bit map. This
message
is
transmitted
on
the
Sequencer
and
Pipe
ports
only
on
organs
which have a
separate
MIDI
Instrument port.
It
can,
however,
be
received
on
the
Instrument
port
as well.
Subcommand
byte:
01
H
Offset
byte:
OOH
- 22H This
byte
indicates
the
offset
of
the
first
data
byte from
the
beginning
of
the
bit
map.
Normally, this
will
be
zero,
and
the
entire
map
(35 bytes)
will
be
transmitted.
It
is
possible,
though,
to
send
only
part
of
the
map
beginning
with
the
byte
indicated by this value.
Data Bytes:
dd, dd,
...
The
data
bytes
represent
the
new
state
of
the
bit
map
beginning
at
the
offset specified
above.
Any
number
of
data
bytes
up
to
the
full
length
of
the
bit
map
may
be
sent,
although
the
entire
map
is
usually
transmitted.
Refer
to
the
included
chart
for
stop
map
assignments.
39
