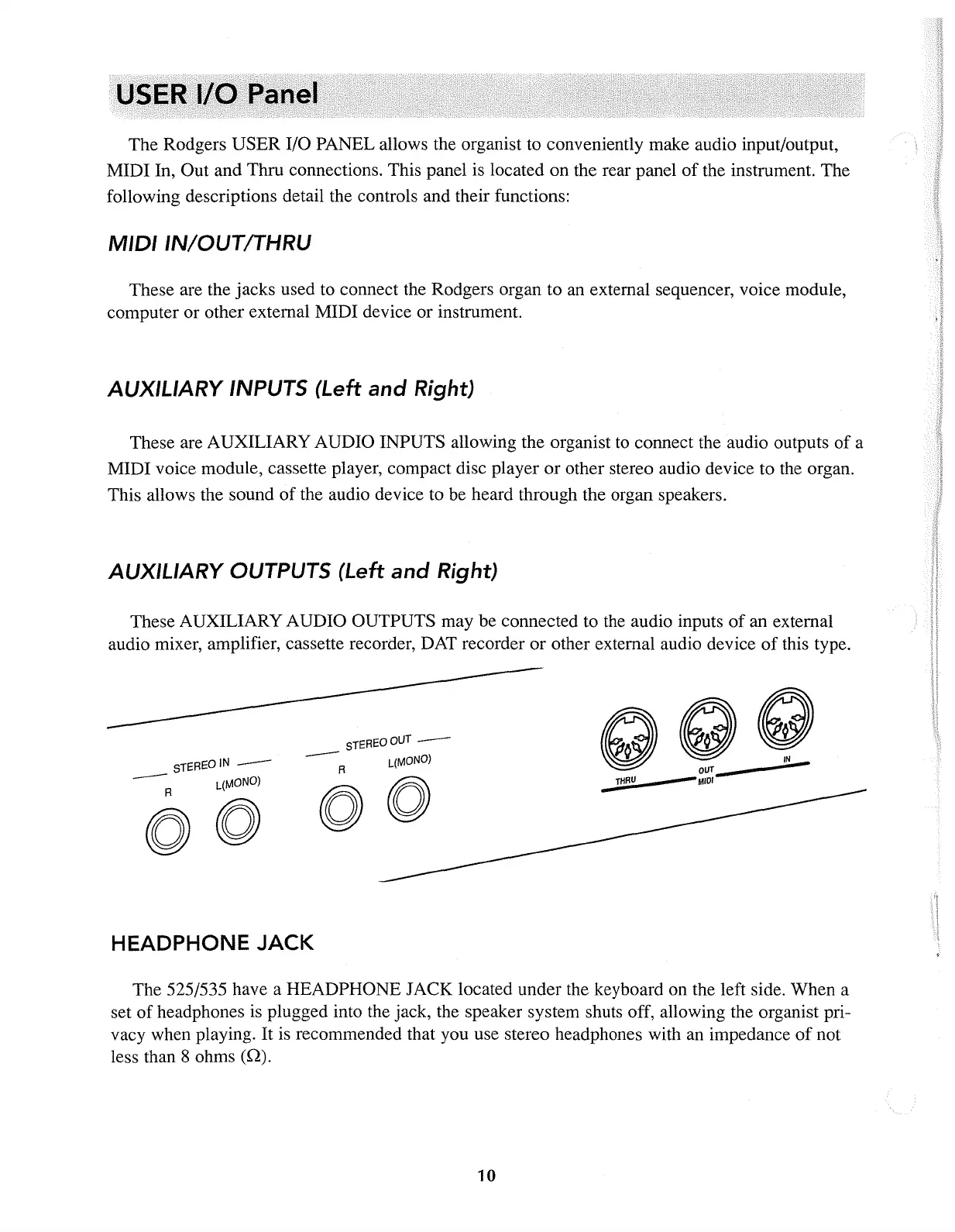

The Rodgers USER I/O PANEL allows the organist to conveniently make audio input/output,
MIDI In, Out and Thru connections. This panel is located on the rear panel
of
the instrument. The
following descriptions detail the controls and their functions:
MIDIIN/OUT/THRU
These are the jacks used to connect the Rodgers organ to
an
external sequencer, voice module,
computer or other external MIDI device or instrument.
AUXILIARY INPUTS (Left
and
Right)
These are AUXILIARY AUDIO INPUTS allowing the organist
to
connect the audio outputs
of
a
MIDI voice module, cassette player, compact disc player
or
other stereo audio device to the organ.
This allows the sound
of
the audio device to be heard through the organ speakers.
AUXILIARY OUTPUTS (Left
and
Right)
These AUXILIARY AUDIO OUTPUTS may be connected to
the
audio inputs
of
an external
audio mixer, amplifier, cassette recorder,
DAT
recorder or other external audio device
of
this type.
STEREO
IN
-
-
L(MONO)
60
STEREO
OUT
-
--
L{MONO)
R
00
g~~
T/iflU
-/.IIDI-
-
HEADPHONE JACK
The 525/535 have a HEADPHONE JACK located under the keyboard on the left side. When a
set
of
headphones is plugged into the jack, the speaker system shuts off, allowing the organist pri-
vacy when playing. It
is
recommended that you use stereo headphones with
an
impedance
of
not
less than 8 ohms
(Q).
10
