Rodgers 535 - MIDI Implementation Chart

[RODGERS ELECTRONIC]
Model 525 / 535

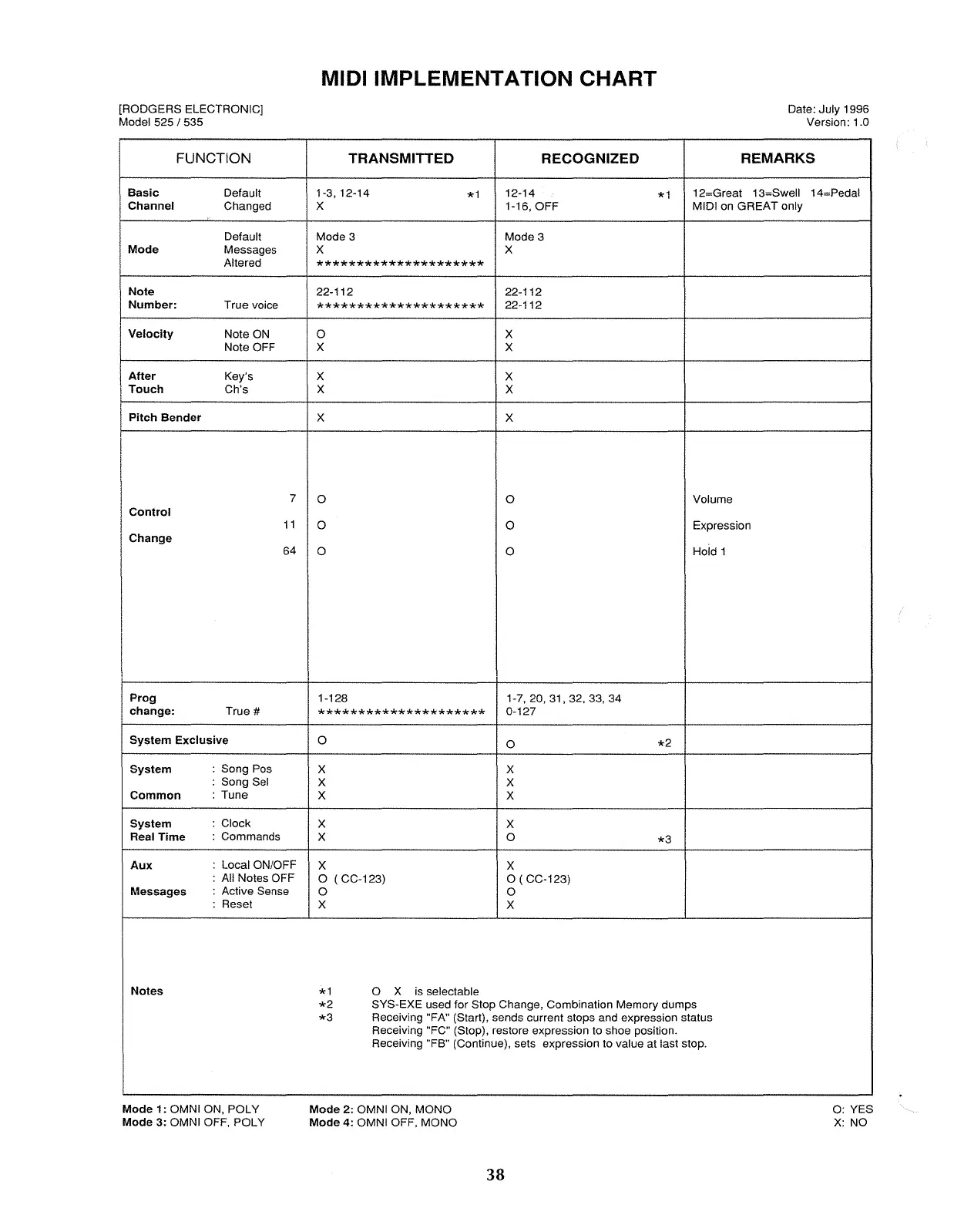

MIDI IMPLEMENTATION CHART
Date: July 1996
Version: 1.0
FUNCTION TRANSMITTED
RECOGNIZED
REMARKS
Basic Default 1-3,12-14
*1
12-14
*1
12=Great 13=Swell
14=Pedal
Channel
Changed X 1-16, OFF
MIDI on GREAT only
Default Mode 3 Mode 3
Mode
Messages X X
Altered
*********************
Note 22-112
22-112
Number:
True voice
*********************
22-112
Velocity
Note ON 0 X
Note OFF X
X
After Key's
X X
Touch Ch's
X X
Pitch Bender
X X
7
0
0
Volume
Control
11
0
0
Expression
Change
Hoid 1
64
0 0
Prog 1-128
1-7,20,31,32,33,34
change: True #
*********************
0-127
System Exclusive
0
0
*2
System
: Song Pos
X X
: Song Sel
X X
Common
: Tune
X X
System
: Clock
X
X
Real Time
:
Commands
X
0
*3
Aux
Local ON/OFF
X X
All Notes OFF
0 ( CC-123)
o (CC-123)
Messages
Active Sense
0
0
Reset
X
X
Notes
*1
0
X is selectable
*2
SYS-EXE used for Stop Change, Combination Memory dumps
*3
Receiving "FA" (Start), sends current stops and expression status
Receiving "FC" (Stop), restore expression to shoe position.
Receiving "FB" (Continue), sets expression to value at last stop.
Mode 1: OMNI ON, POLY
Mode 3: OMNI OFF. POLY
Mode 2: OMNI ON, MONO
Mode 4: OMNI OFF, MONO
38
0: YES
X: NO
