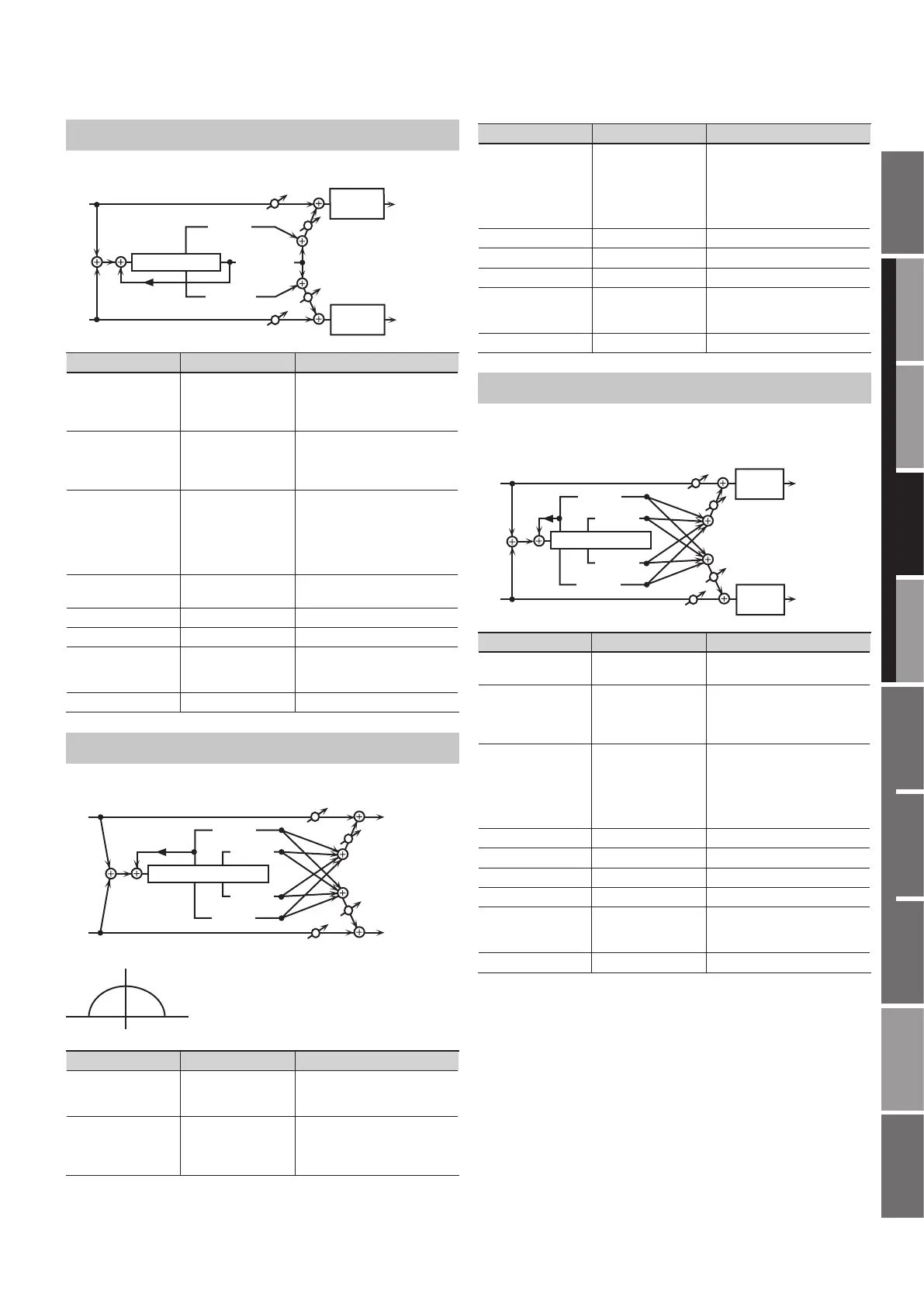

47: 3TAP PAN DELAY
Produces three delay sounds; center, left and right.
L in
R in
L out
R out
Left Tap
Right Tap
Triple Tap Delay
2-Band
EQ
2-Band
EQ
Balance W
Balance D
Balance W
Balance D
Feedback
Center Tap
Parameter Value Explanation
Delay Left/Right/
Center
0–2600 msec, note
Adjusts the time from the
original sound until the left,
right, and center delayed sounds
are heard
Center Feedback # -98–+98%
Adjusts the amount of the delay
sound that’s fed back into the
eect. Negative (-) settings invert
the phase.
HF Damp 200–8000 Hz, BYPASS
Adjusts the frequency above
which sound fed back to the
eect is ltered out. If you do
not want to lter out any high
frequencies, set this parameter
to BYPASS.
Left/Right/Center
Level
0–127 Volume of each delay
Low Gain -15–+15 dB Gain of the low range
High Gain -15–+15 dB Gain of the high range
Balance # D100:0W–D0:100W
Volume balance between the
direct sound (D) and the delay
sound (W)
Level 0–127 Output Level
48: 4TAP PAN DELAY
This eect has four delays.
L in
R in
L out
R out
Quadruple Tap Delay
Balance W
Balance D
Balance W
Balance D
Delay 1
Delay 2
Delay 3
Delay 4
Feedback
Stereo location of each delay
1
2 3
4
L
R
Parameter Value Explanation
Delay 1-4 Time 0–2600 msec, note
Adjusts the time from the
original sound until delay sounds
1–4 are heard
Delay 1 Feedback # -98–+98%
Adjusts the amount of the delay
sound that’s fed back into the
eect. Negative (-) settings invert
the phase.
Parameter Value Explanation
HF Damp 200–8000 Hz, BYPASS
Adjusts the frequency above
which sound fed back to the
eect is ltered out. If you do
not want to lter out any high
frequencies, set this parameter
to BYPASS.
Delay 1-4 Level 0–127 Volume of each delay
Low Gain -15–+15 dB Gain of the low range
High Gain -15–+15 dB Gain of the high range
Balance # D100:0W–D0:100W
Volume balance between the
direct sound (D) and the delay
sound (W)
Level 0–127 Output Level
49: MULTI TAP DELAY
This eect provides four delays. Each of the Delay Time parameters can be set to a note
length based on the selected tempo. You can also set the panning and level of each
delay sound.
L in
R in
L out
R out
Multi Tap Delay
Balance W
Balance D
Balance W
Balance D
Delay 1
Delay 3
Delay 4
Delay 2
Feed
back
2-Band
EQ
2-Band
EQ
Parameter Value Explanation
Delay 1-4 Time 0–2600 msec, note
Adjusts the time until Delays 1–4
are heard.
Delay 1 Feedback # -98–+98%
Adjusts the amount of the delay
sound that’s fed back into the
eect. Negative (-) settings invert
the phase.
HF Damp 200–8000 Hz, BYPASS
Adjusts the frequency above
which sound fed back to the
eect is ltered out. If you don’t
want to lter out any the high
frequencies, set this parameter
to BYPASS.
Delay 1-4 Pan L64–63R Stereo location of Delays 1–4
Delay 1-4 Level 0–127 Output level of Delays 1–4
Low Gain -15–+15 dB Gain of the low range
High Gain -15–+15 dB Gain of the high range
Balance # D100:0W–D0:100W
Volume balance between the
direct sound (D) and the eect
sound (W)
Level 0–127 Output Level
