Roland Jupiter-80 Service Notes

8
Jun. 2011 JUPITER-80

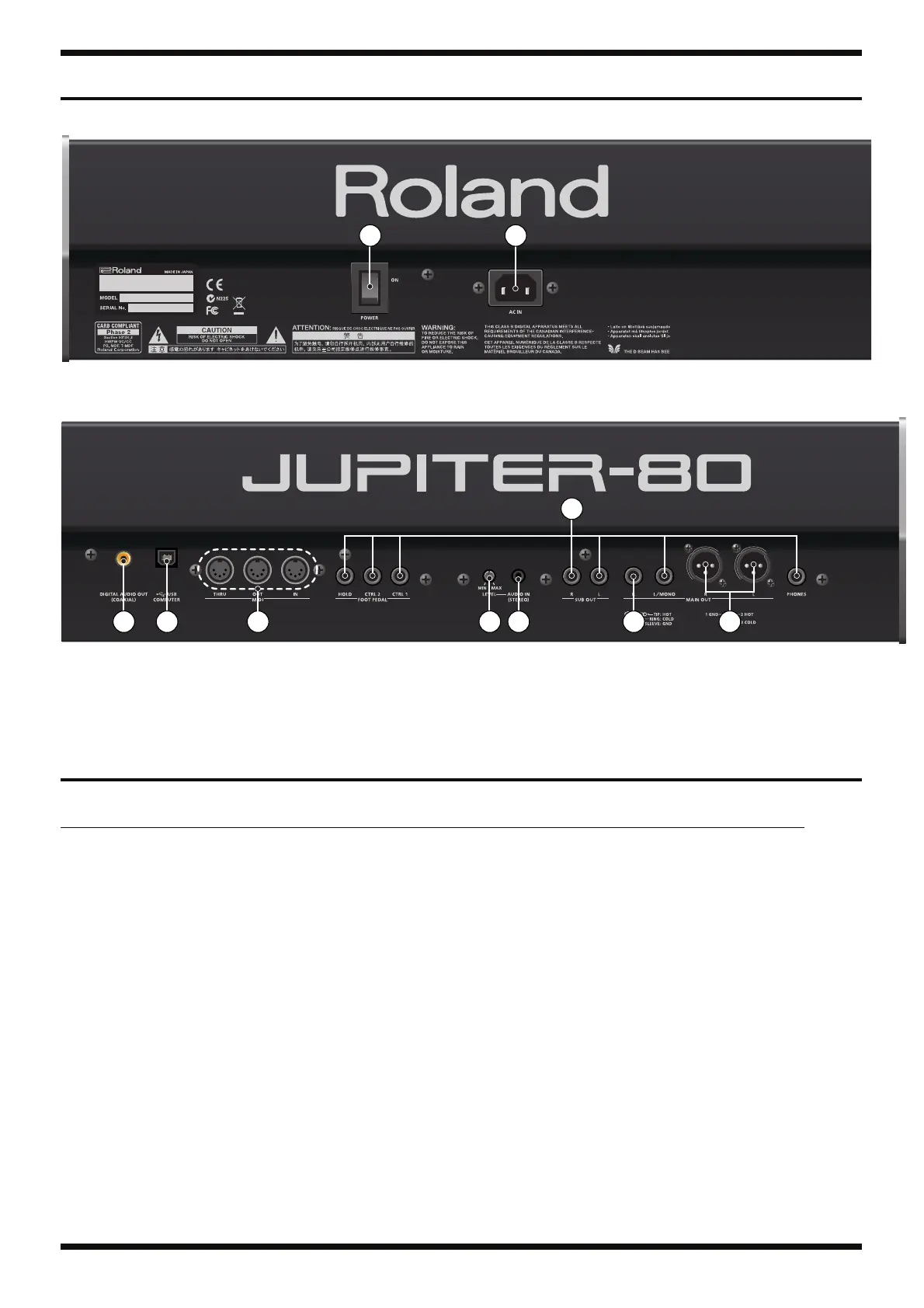

Location of Controls (Rear)
fig.panel-rear-1.eps
fig.panel-rear-2.eps
Location of Controls (Rear) Parts List
21
7 8 9
10
4 53
6
No. Part Code Part Name Description Q’ty
1 01786012 SEESAW SWITCH JW-M11RKK 1
01786045 SW HOLDER AT-217K 1
2 5100021369 WIRING W2 (INLET) 1
3 5100019749 RCA CONNECTOR LPR6521-1301FC 1
4 5100009531 USB CONNECTOR B TYPE FEMALE YKF45-0044N 1
5 13429273 MIDI CONNECTOR YKF51-5046 (TRIPRET) 1
6 13449275 6.5MM JACK YKB21-5074 7
7 02781390 9M/M ROTARY POTENTIOMETER RK09K12A0D0S 20KAX2 1
8 04452945 3.5MM JACK YKB21-5344N 1
9 13449252 6.5MM JACK YKB21-5006 (STEREO W/SW) 1
10 5100004097 XLR CONNECTOR NC3MAH-0 NEW-A V1 2

Roland Jupiter-80 Specifications

General

Pitch wheel	Yes
Product type	Digital synthesizer
Product color	Black
Sound effects	Reverberation
Keyboard number of keys	76
Maximum polyphony (notes)	256
Headphone outputs	1
USB ports quantity	2
6.35 mm (1⁄4-inch) output	6
Display type	LCD
Power source type	AC

Weight and Dimensions

Depth	439 mm
Width	1231 mm
Height	140 mm
Weight	17700 g
