Roland JUPITER-X User Manual

JUPITER-X Owner’s Manual Ver. 3.0 and later

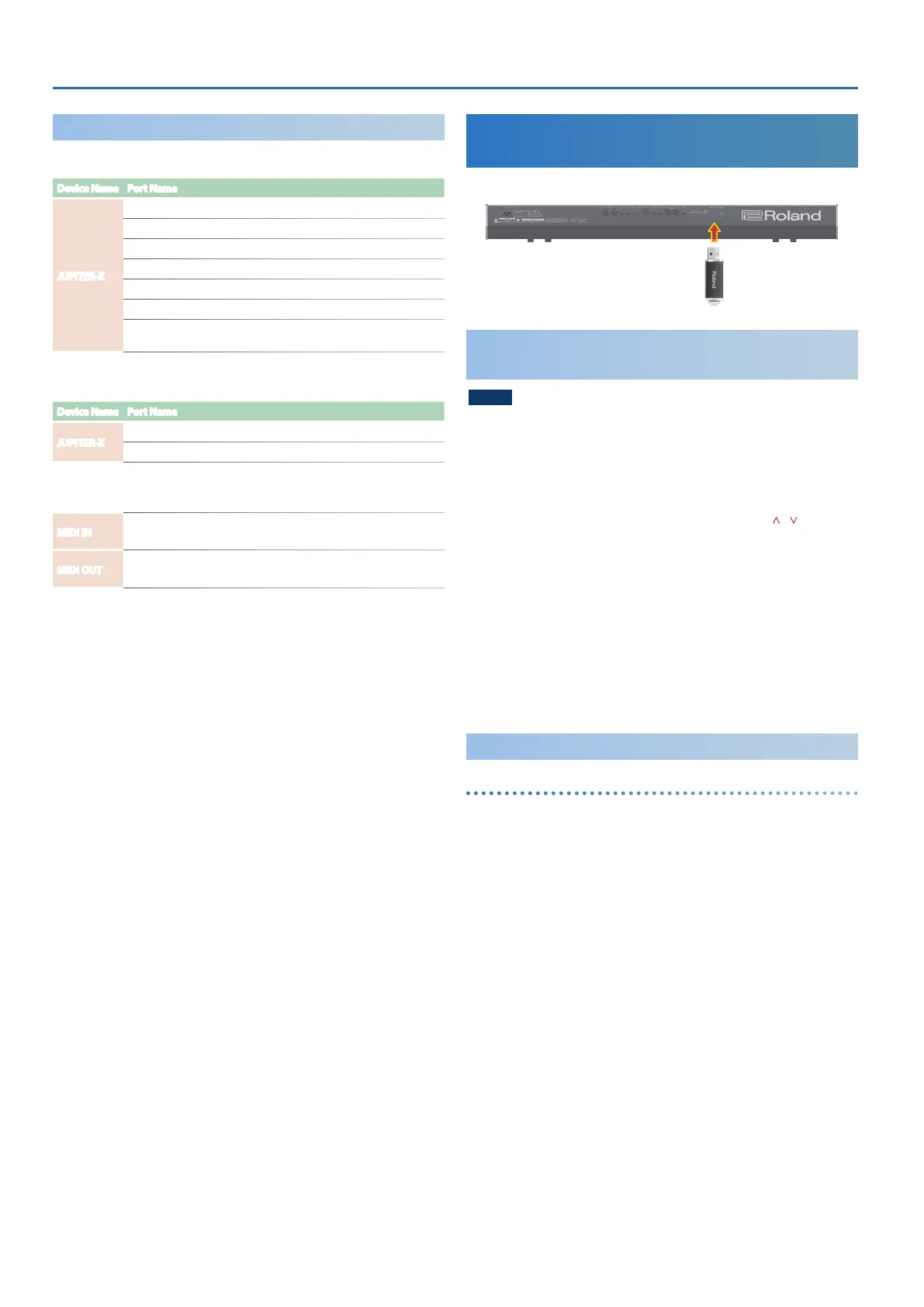

24
Port Names When Using the VENDOR Driver
Audio input device
Device Name Port Name
JUPITER-X
IN MIX (mixed output of the JUPITER-X)
IN 1 (output of the JUPITER-X’s part 1)
IN 2 (output of the JUPITER-X’s part 2)
IN 3 (output of the JUPITER-X’s part 3)
IN 4 (output of the JUPITER-X’s part 4)
IN 5 (output of the JUPITER-X’s part R)
IN MIC (output of the signal that is input from the JUPITER-X’s MIC
IN jack)
Audio output device
Device Name Port Name
JUPITER-X
OUT (USB audio input to the JUPITER-X)
OUT MIC (treated as mic input to the JUPITER-X)
MIDI input/output device
MIDI IN
JUPITER-X
JUPITER-X DAW CTRL
MIDI OUT
JUPITER-X
JUPITER-X DAW CTRL
* DAW CTRL is not used for normal MIDI communication.
Connecting a USB Flash Drive
(USB MEMORY Port)
You can connect a USB flash drive here.
USB flash drive
Formatting a USB Flash Drive
(FORMAT USB MEMORY)
NOTE
5
If the USB flash drive contains important data, be aware that this
operation erases all data from the drive.
1. Press the [MENU] button.
2. Use the [1] knob to select “UTILITY”, and then press the
[ENTER] button.
You can also make this selection by using the PAGE [ ] [ ] buttons
instead of the [1] knob.
3. Use the [1] knob to select “FORMAT USB MEMORY”, and
then press the [ENTER] button.
A confirmation message appears.
If you decide to cancel, press the [EXIT] button.
4. To execute, use the [2] knob to select “OK”, and then press
the [ENTER] button.
When formatting is complete, the screen indicates “Completed!”
* Never turn off the power or disconnect the USB flash drive during a
process, such as while the “Executing…” display is shown.
Backup/Restore
Backing up data to USB flash drive (BACKUP)
Here’s how to back up user data to a USB flash drive.
Data that is backed up
5
All scene data (including vocoder and arpeggio settings)
5
User tone data
5
System settings (including system effects)
1. Press the [MENU] button.
2. Use the [1] knob to select “UTILITY”, and then press the
[ENTER] button.
You can also make this selection by using the PAGE [
ä
] [
å
] buttons
instead of the [1] knob.
3. Use the [1] knob to select “BACKUP”, and then press the
[ENTER] button.
The BACKUP NAME screen appears.
4. Use the PAGE [<] [>] buttons to move the cursor, and use
the [2] knob to change the file name.
5. When you’ve specified the file name, press the [ENTER]
button.
A confirmation message appears.
If you decide to cancel, press the [EXIT] button.

Roland JUPITER-X Specifications

Power

power supply	AC 117–240 V, 50/60 Hz
power consumption	20W

Sound and Effects

preset tones	4, 000 or greater
user tones	256
drum kits	90 or greater

Connectivity

bluetooth profile support	A2DP, GATT
headphones jacks	Stereo miniature phone type, Stereo 1/4-inch phone type
main out jacks	1/4-inch phone type, XLR type

Weight and Dimensions

width	1, 090 mm
depth	447 mm
height	119 mm
weight	16.9 kg
