Roland JUPITER-X User Manual

JUPITER-X Owner’s Manual Ver. 3.0 and later
11
B AC-IN jack
Connect the included power cord here.
C [
L
] switch
This turns the power on/off (p. 12).
D MIDI (OUT/IN) ports
Used for connecting external MIDI devices and for transmission of
MIDI messages.
E CTRL jack
Connect an expression pedal (EV-5; sold separately).
* Use only the specified expression pedal. By connecting any other
expression pedals, you risk causing malfunction and/or damage to the
unit.
F HOLD jack
Connect a pedal switch (DP series; sold separately).
G AUX IN jack
Connect an external audio device.
Use a stereo mini plug for this connection.
H MIC
[MIC GAIN] knob
Adjusts the volume of the mic input.
MIC IN jack
Connect a dynamic
microphone or electret
condenser microphone (plug-in
power system) here.
* A condenser microphone
(phantom powered) cannot be
used.
I OUTPUT L/R jacks
These are output jacks for audio signals.
J OUTPUT (BALANCED) L/R jacks
These are output jacks for
audio signals.
K PHONES jack
You can connect a set of headphones here.
L USB port
USB MEMORY port
You can connect a USB flash drive here.
Connect or disconnect the USB flash drive while the JUPITER-X is
powered-off.
* Never turn off the power or disconnect the USB flash drive during a
process, such as while the “Executing…” display is shown.
USB COMPUTER port
Use a USB cable to connect this port to a USB port of your
computer.
This allows the JUPITER-X to operate as a USB MIDI device.
M Ground terminal
* Connect this to an external earth or ground if necessary.
1: GND2: HOT
3: COLD
※ 入力端子の場合
1: GND 2: HOT
3: COLD
※ 出力端子の場合
TIP: HOT
RING: COLD
SLEEVE: GND
Pin assignment of MIC IN jack
Pin assignment of OUTPUT (BALANCED) L/R jacks
1: GND2: HOT
3: COLD
※ 入力端子の場合
1: GND
2: HOT
3: COLD
※ 出力端子の場合
TIP: HOT
RING: COLD
SLEEVE: GND

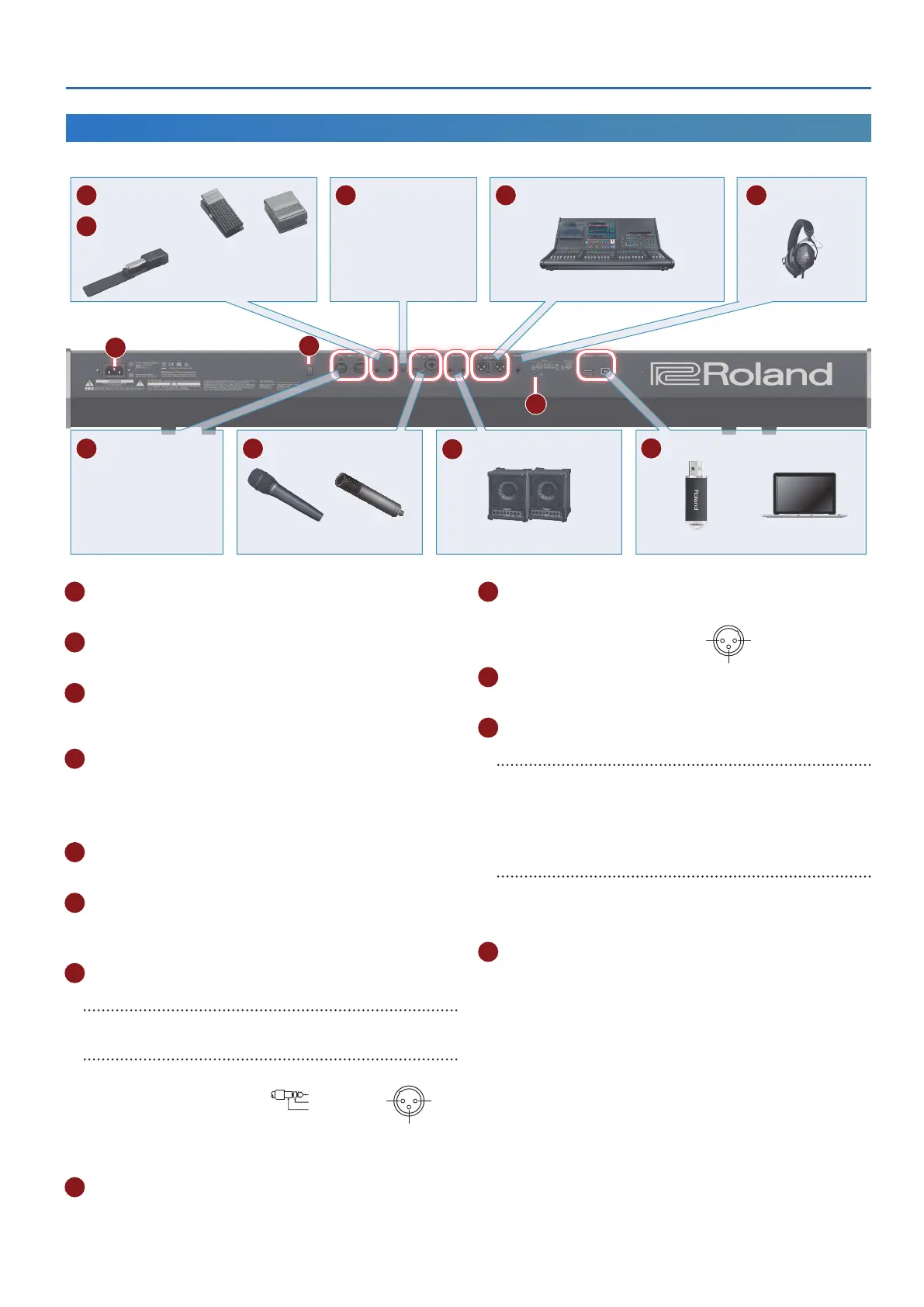

Rear Panel (Connecting Your Equipment)
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
B
C
G AUX IN jack
Connect an audio device.
L USB port
I OUTPUT jacks
K PHONES jack
H MIC
J OUTPUT (BALANCED) jacksE CTRL jack
F HOLD jack
Expression pedal (EV-5)
or
Pedal switch (DP series)
Mixer
Monitor speaker
(Amplifier built-in)
USB flash drive Computer
Headphones
Dynamic microphone Electret microphone
(mono)
D MIDI ports
Connect a MIDI device.
M

Roland JUPITER-X Specifications

Power

power supply	AC 117–240 V, 50/60 Hz
power consumption	20W

Sound and Effects

preset tones	4, 000 or greater
user tones	256
drum kits	90 or greater

Connectivity

bluetooth profile support	A2DP, GATT
headphones jacks	Stereo miniature phone type, Stereo 1/4-inch phone type
main out jacks	1/4-inch phone type, XLR type

Weight and Dimensions

width	1, 090 mm
depth	447 mm
height	119 mm
weight	16.9 kg
