Roland OCTAPAD SPD-20 PRO User Manual

25

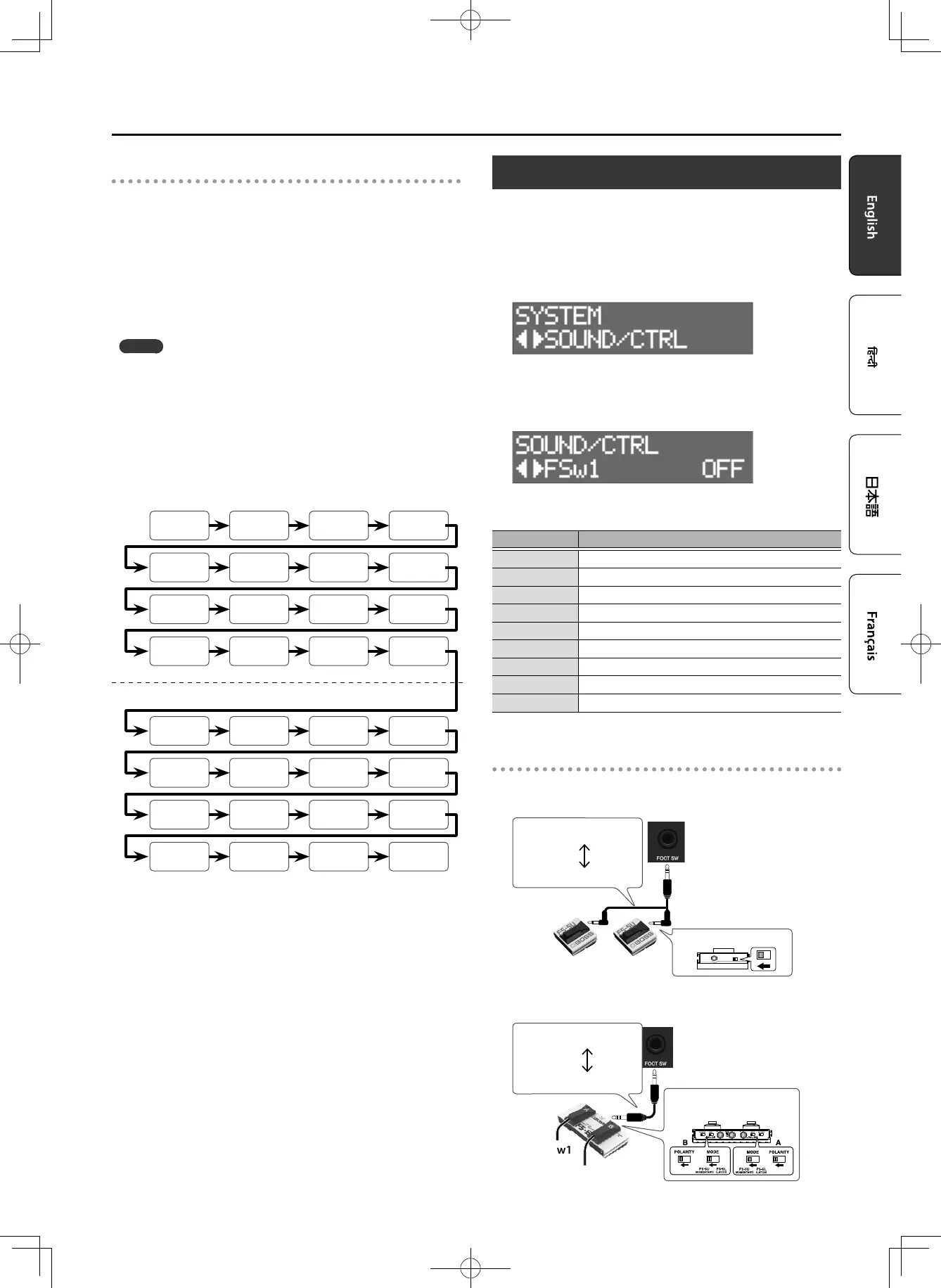

Connecting External Devices
Controlling hi-hat open/close
If a hi-hat control pedal is connected to the HH CTRL jack, it functions
as a hi-hat control pedal for the hi-hat sound (HC) that is assigned
to a pad. The closed hi-hat sound is heard if you strike the pad
while pressing the pedal. When you strike the pad while gradually
releasing the pedal, the sound transitions from the half-open to the
open hi-hat sound, and the tonal character and decay length change
smoothly. If you press the pedal, you hear the foot-close sound. You
can play a foot-splash by pressing the pedal and then immediately
releasing it.
MEMO
5 The volume of the pedal hi-hat sound is specied by the pedal
level (PedalHHVolume) (p. 18).
5 If a hi-hat sound (HC) is assigned to multiple pads, you’ll hear
the pedal hi-hat sound of the pad that has the highest priority as
shown in the illustration below.
5 If a hi-hat sound is not assigned to any pad, pressing the pedal
does not produce sound.
PAD1
PAD5
EXT1(H)
EX1(R)
PAD1
PAD5
EXT1(H)
EXT1(R)
PAD2
PAD6
EXT2(H)
EX2(R)
PAD2
PAD6
EXT2(H)
EXT1(R)
PAD3
PAD7
EXT3(H)
EX3(R)
PAD3
PAD7
EXT3(H)
EXT3(R)
PAD4
PAD8
EXT4(H)
EX4(R)
PAD4
PAD8
EXT4(H)
EXT4(R)
MAIN LAYER
High priority
Low Priority
SUB LAYER
EX1(H): EXTERNAL TRIGGER INPUT 1 (HEAD)
EX1(R): EXTERNAL TRIGGER INPUT 1 (RIM)
Assigning the Footswitch
Here’s how to assign the function of a footswitch connected to the
FOOT SW jack.
1. Press the [SYSTEM] button.
2. Use the [K][J] buttons to select “SOUND/CTRL.”
3. Press the [ENTER] button.
4. Use the [K][J] buttons to select “FSw1” or “FSw2.”
5. Use the [–][+] buttons to select a value.
Value Explanation
OFF Disables the function of the footswitch.
KIT#DEC Returns to the previous kit.
KIT#INC Advances to the next kit.
CHAIN#DEC Returns to the previous step of the kit chain.
CHAIN#INC Advances to the next step of the kit chain.
MFX1 SW Turns MFX1 on/o.
MFX2 SW Turns MFX2 on/o.
MFX3 SW Turns MFX3 on/o.
SOUNDOFF Stops all sound being played by the OCTAPAD.
Connecting a footswitch
Connecting an FS-5U
FSw2FSw1
TIP
Stereo 1/4” phone type
1/4” phone type x 2
RING
POLARITY switch
Connecting an FS-6
Stereo 1/4” phone type
Stereo 1/4” phone type
FSw2
FSw1
MODE/POLARITY switch

Roland OCTAPAD SPD-20 PRO Specifications

General

Pads	8
Presets	50
Effects	Reverb, Delay
Display	LCD
Connectivity	MIDI In/Out
Power	AC Adaptor
Pad Type	Rubber
Outputs	Headphone Output
Inputs	Footswitch Input
