5-5 Optimizing Printing to Match Media Thickness
Chapter 5 Feature Reference
82

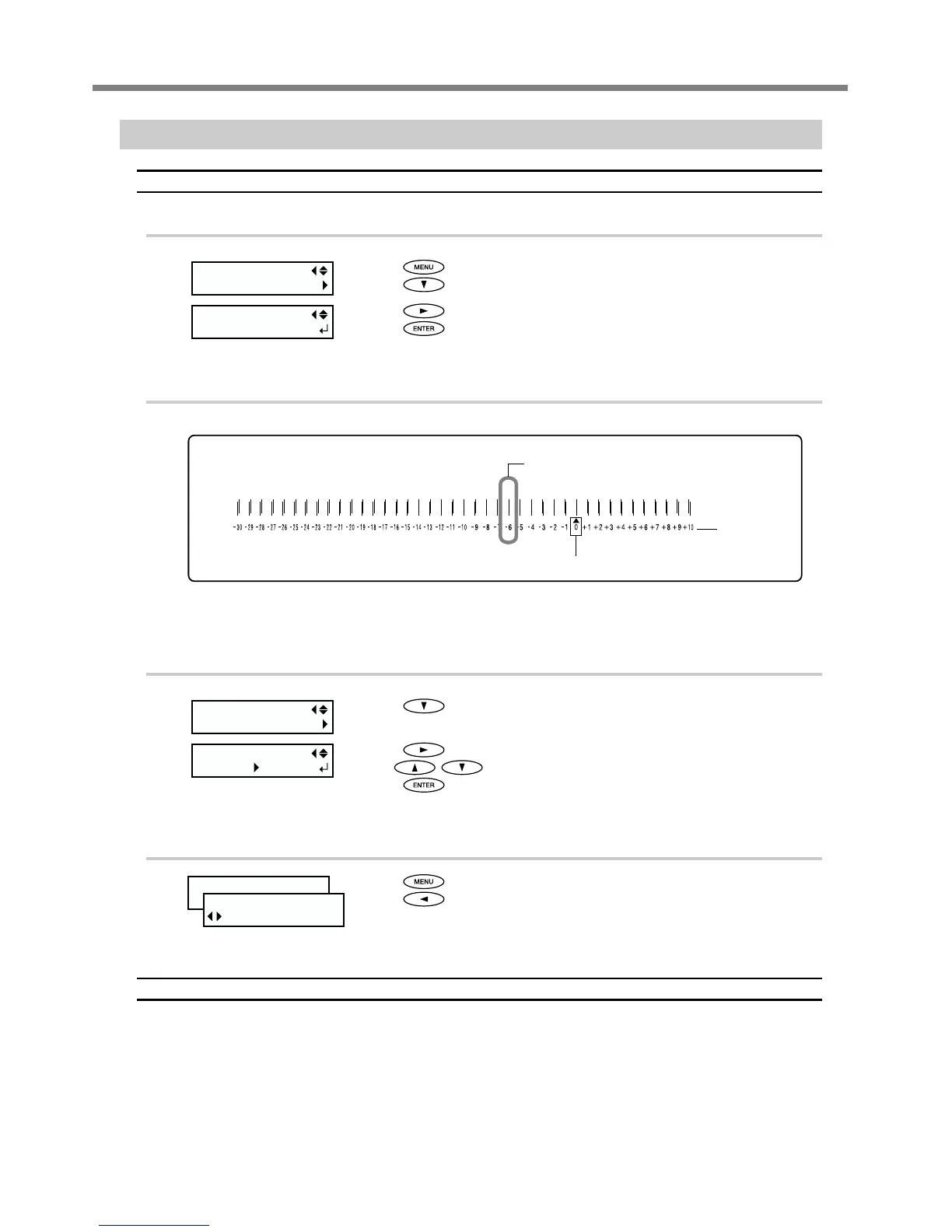

Correcting for Misalignment in Bidirectional Printing
Procedure
1.
Print a test pattern.
➊
Press .
Press
.
➋
Press .
Press
to start printing.
2.
Read the correction values from the test pattern.
3.
Enter the correction values that you read.
➊
Press .
➋
Press .
Use
to set the correction values.
Press
to enable the setting.
4.
Go back to the original screen.
Press .
Press
to go back to the original screen.
Description
The bidirectional-printing mode (in which the heads perform printing during both their outbound pass and return pass)
offers the advantage of being able to shorten printing times, but subtle misalignment occurs during the outbound and
return passes. The procedure to correct this and eliminate misalignment is bidirectional correction. This misalignment
varies according to the head height and the thickness of the media, so we recommend performing correction to match
the media you're using.
Simple
W 1839mm
SETUP SHEET
ROLL
MENU
ADJUST BI-DIR
ADJUST BI-DIR
TEST PRINT
Test pattern
Choose the value that produces
the least misalignment.
Correction-
value scale
ADJUST BI-DIR
SIMPLE SETTING
SIMPLE SETTING
0
- 6
Current correction value
To Next Page
