Roland V-Synth Service Notes

29
Mar.2003

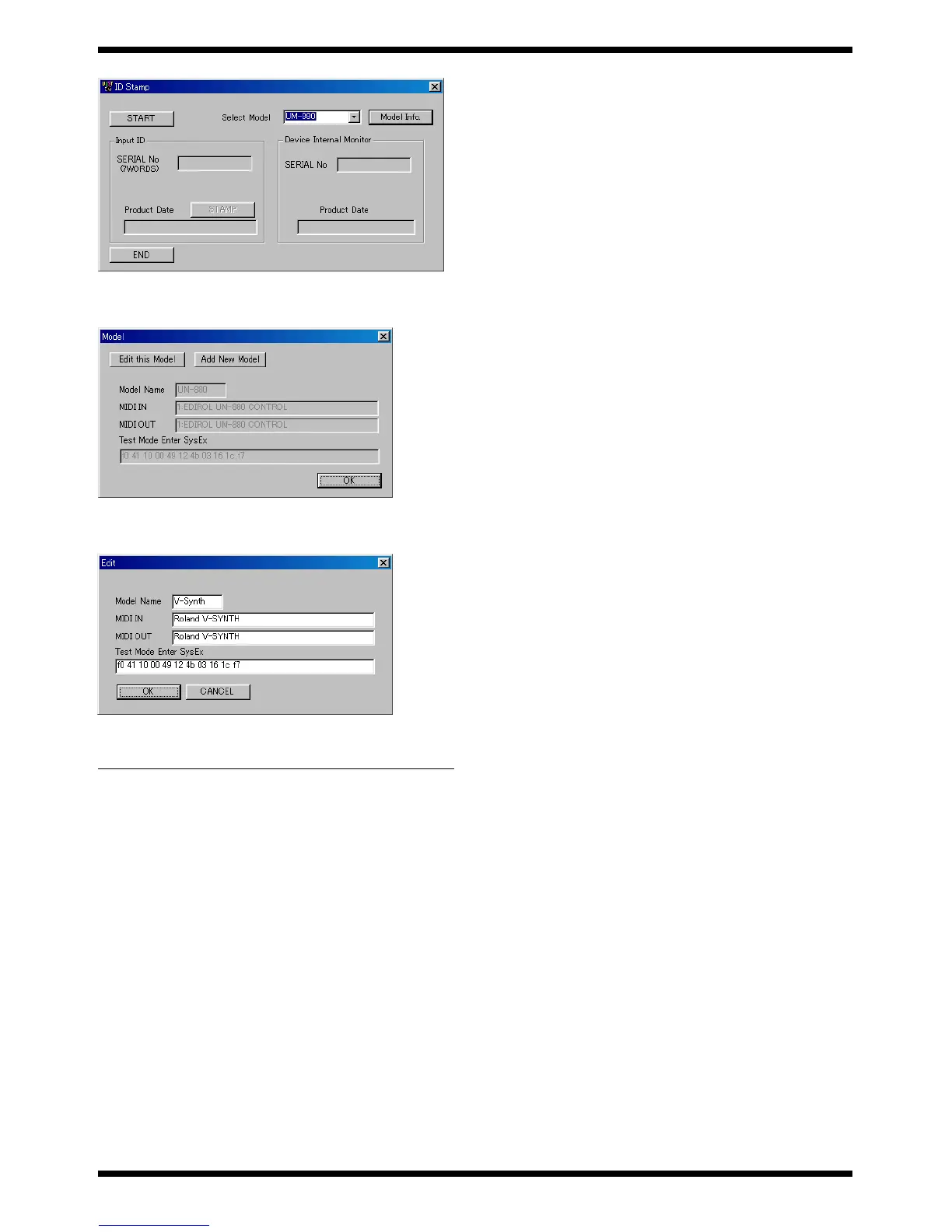

fig.13-31_50
2. Click [Model Info.].
3. A window will appear.
fig.13-32_50
4. Click [Add New Model].
5. A window will appear.
fig.13-33_50
Input the following items into the appropriate fields.
6. Press OK.
Model Name V-Synth
MIDI IN Roland V-SYNTH
MIDI OUT Roland V-SYNTH
Test Mode Enter SysEx f0 41 10 00 49 12 4b 03 16 1c f7

Roland V-Synth Specifications

General

Arpeggiator	Yes
Velocity Sensitivity	Yes
Aftertouch	Yes
Vocoder	Yes
USB	No
Keyboard	61 keys (velocity and aftertouch sensitive)
Effects	Chorus, Delay, Reverb, Distortion, Flanger, Phaser
Sampling	Yes
Display	320x240 pixel color LCD
MIDI	In/Out/Thru
Type	Synthesizer
LFO	Yes
Storage	SmartMedia card
Outputs	Stereo
Headphones	Yes
Power Supply	AC
Inputs	Stereo Line, Microphone
Audio Inputs	Stereo Line, Mic
