Roland V-Synth Service Notes

30
V-SYNTH

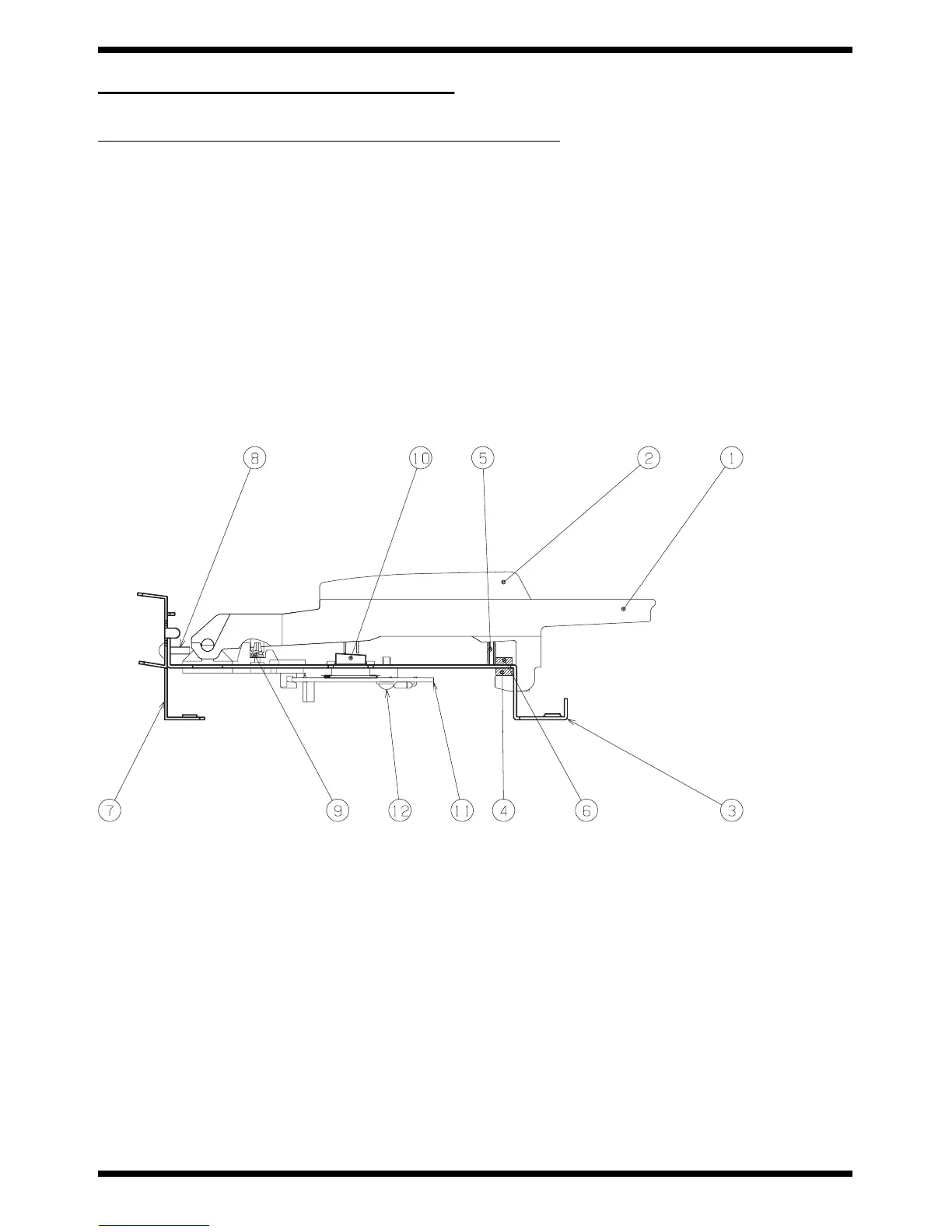

KEYBOARD PARTS LIST
fig.keyboard-explo
NO PART CODE PART NAME DESCRIPTION Q’TY
1 00893723W0 NATURAL KEY C/F SK-9 (W/WEIGHT) 10
00893734W0 NATURAL KEY E/B SK-9 (W/WEIGHT) 10
00893756W0 NATURAL KEY D SK-9 (W/WEIGHT) 5
00893767W0 NATURAL KEY G SK-9 (W/WEIGHT) 5
00893745W0 NATURAL KEY A SK-9 (W/WEIGHT) 5
00893778W0 NATURAL KEY C’/F’ SK-9 (W/WEIGHT) 1
2 00893790W0 SHARP KEY SK-9 (W/WEIGHT) 25
72232823 CHASSIS 61P-J ASSY SK-9 1
‘CHASSIS 61P-J ASSY’ includes the following parts.
3 01127212 SK-9 CHASSIS 61P-C 1
4 00893701 CUSHION SK-9 61P 1
5 01122023 SK-9 GUIDE 61
6 01127223 AFTERTOUCH SK-961 1
7 02674012 KBD HOLDER SK-9 3
7 03120734 KBD HOLDER 2
8 40011067 SCREW 3X8 BINDING TAPTITE B FE ZC 10
9 01231534 SPRING-WT2 SK-9 61
10 00893823 RUBBER SWITCH 12P 4
10 00893834 RUBBER SWITCH 13P 1
11 70672823 PWB LOW ASSY SK-961 1
11 70899323 CONTACT BOARD ASSY SK961PWB HI AFT ASSY 1
12 40233545 SCREW VWH TAPTIGHT B 3X10MM ZC 13

Roland V-Synth Specifications

General

Arpeggiator	Yes
Velocity Sensitivity	Yes
Aftertouch	Yes
Vocoder	Yes
USB	No
Keyboard	61 keys (velocity and aftertouch sensitive)
Effects	Chorus, Delay, Reverb, Distortion, Flanger, Phaser
Sampling	Yes
Display	320x240 pixel color LCD
MIDI	In/Out/Thru
Type	Synthesizer
LFO	Yes
Storage	SmartMedia card
Outputs	Stereo
Headphones	Yes
Power Supply	AC
Inputs	Stereo Line, Microphone
Audio Inputs	Stereo Line, Mic
