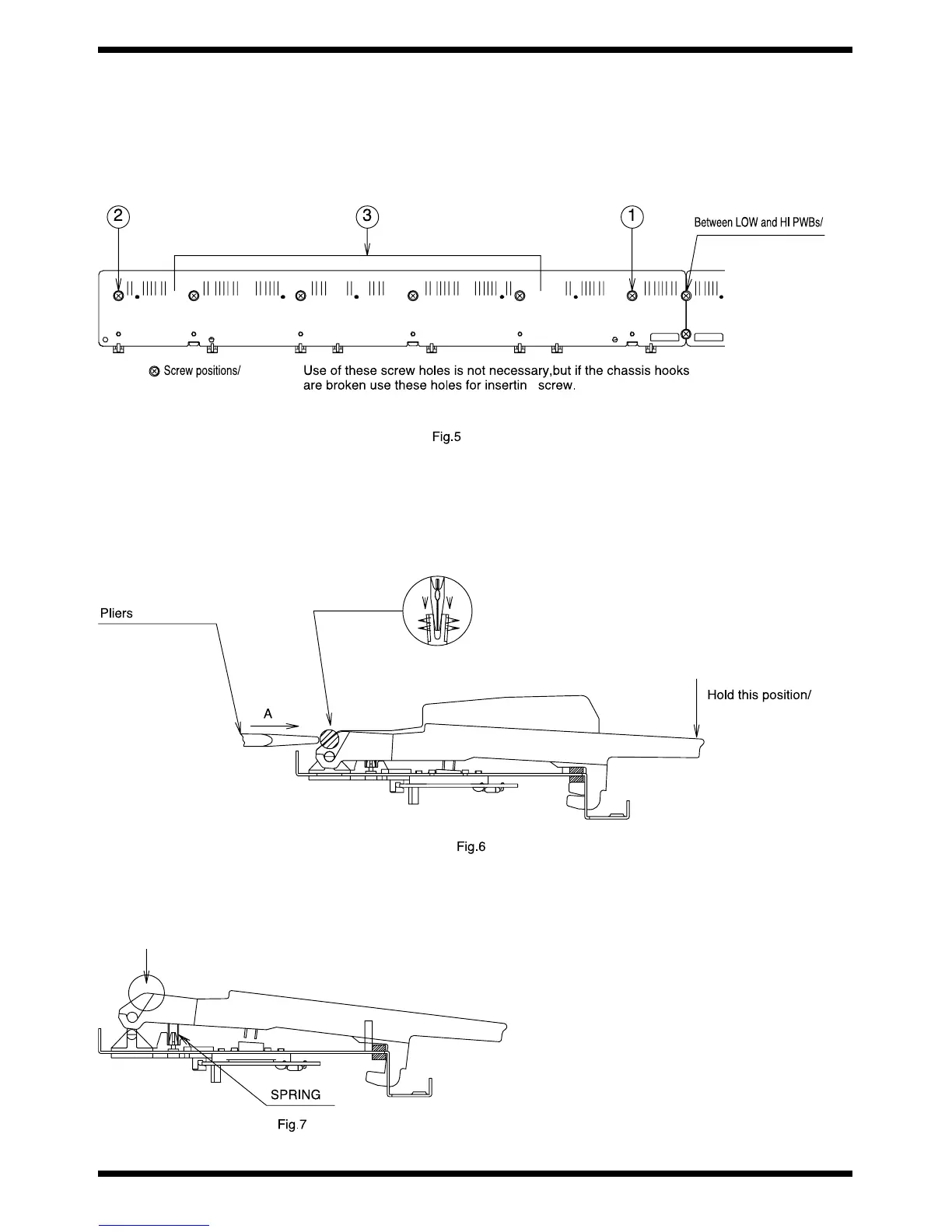

3. Then,using the screws,fasten the LOW and HI PCBs to the chassis from
the center of the keyboard,that is,from the LOW PCB as shown in
fig.5.While you are screwing down the PCB,it may float from the
chassis.To avoid this,after screwing in the PCB at the center of the
keyboard,screw down opposite end,before screwing in other areas in the
middle of the PCB.(See fig.5)In addition,the PCBs may be warped by
soldering,etc.It is recommended that each PCB be fastended screws while
holding down the middle of the PCB lightly.Finally,screw down the
adjacent area between the LOW and HI PCBs.
fig.5-e
Note) When using an electric screwdriver,be careful of the torque.
If excessive force is applied,the PCB may break or chip. (Suitable torque:8kgf-
cm)
<Key removal>
Hold the tip of the key,put pliers into the bearing side,and spread out.(Refer to
fig.6)
f
ig.6-e
<Key installation>
Place a spring on the chassis.Next,place a key(see fig.7)and press the bearing
side.
fig.7-e
* ** * * * *
*
