1
M a c h i n e
Highlights
6

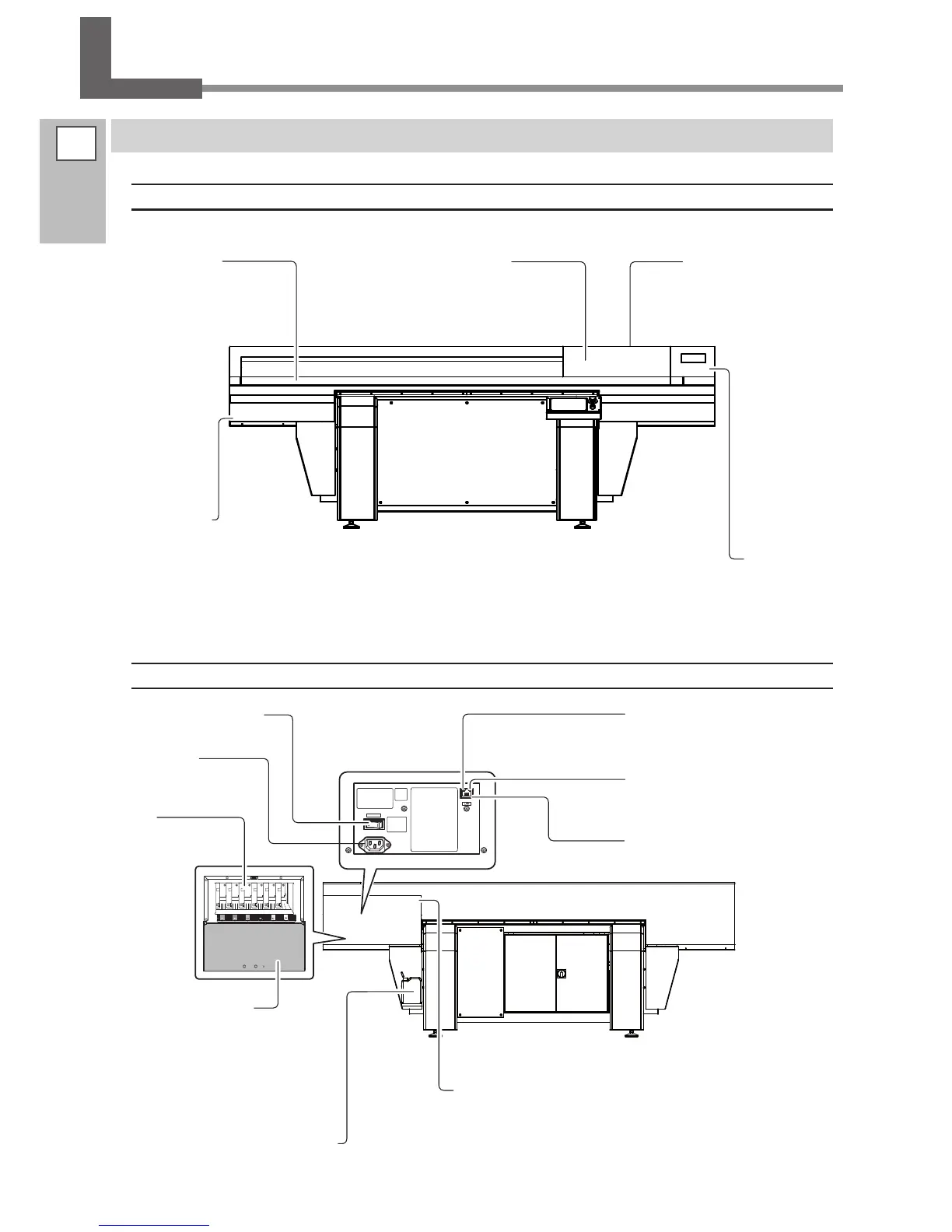

Part Names and Functions
Printer Unit
Front
Rear
Ventilating equipment attachment opening
This is where air intake is performed to lessen the characteris-
tic odor of inks. Ventilating equipment is required separately.
) "Setup guide"
Maintenance
cover
Yo u r e m o v e
this when you
perform clean-
ing of the print
heads.
Loading lever
You operate this when
you load media.
Operation
panel
) P. 7,
"Operation
Panel"
Front cover 1
Be sure to close
this when you
perform print-
ing.
Side cover
You remove this when
you perform mainte-
nance.
Main power switch
Power-cord
connector
Status LED
This ashes yellow while data is
being received from the network.
Link LED
This lights up green when the
connection to the network is
correct.
Cartridge
slots
There are
where ink
cartridges
are in-
stalled.
Drain bottle
Ethernet connector
This is used to connect the
printer to a network.
Ink cartridge cover
Be sure to close this
cover except when
absolutely necessary,
such as when you are
replacing ink car-
tridges.
To Next Page
