Product Specification
Physical Specification
Dimensions
1440 x 375 x 275mm (HxWxD)
Materials
x Chassis – 2.5mm, 6063 extruded aluminium with 25μm anodised finish.
x Panels – 3.2mm Aluminium composite.
x LED lens – Impact resistant 3mm Polycarbonate.
x Base – Impact resistant, 5mm polycarbonate.
Mass < 32 kg
Operating Temperature -30°C to +50°CE
Operating Humidity Range 5% to 95%

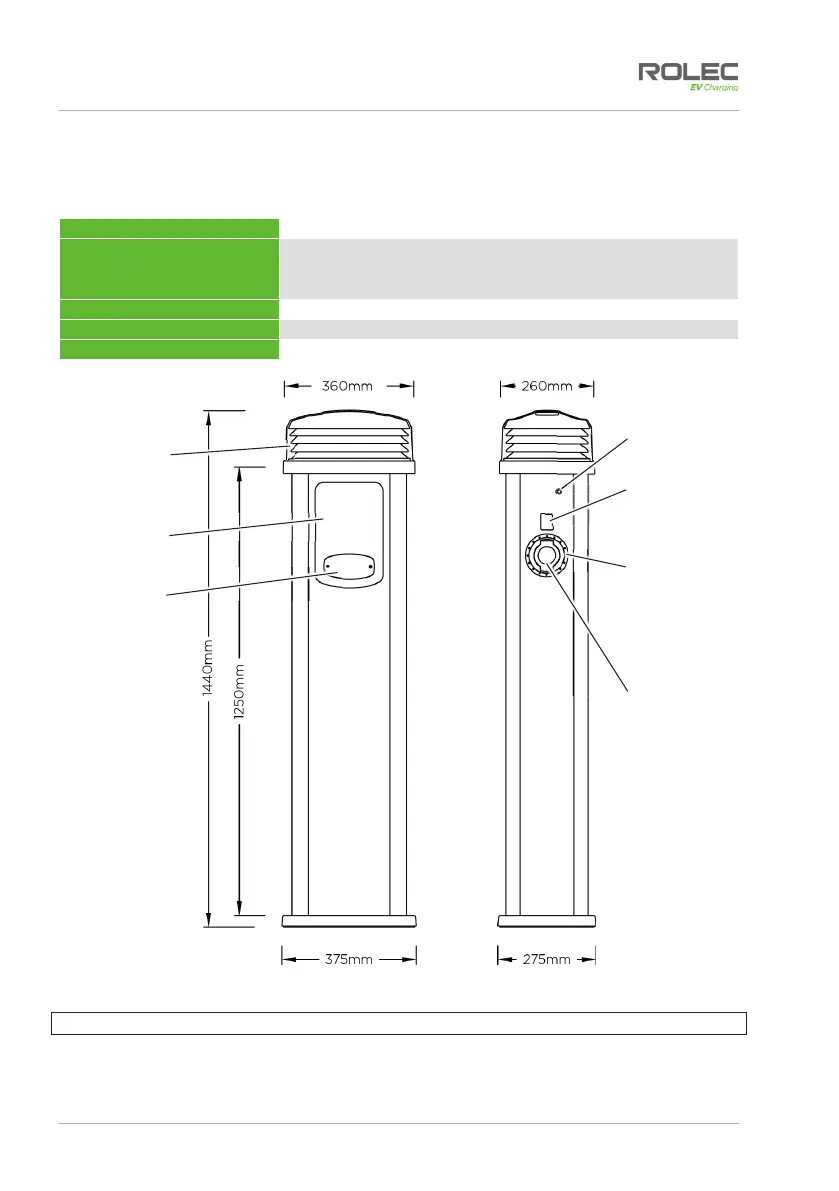

Figure 1 General Arrangement and Dimensions
NOTE: GPRS antenna is mounted on the back of the pedestal.
LED
Illumination
Charging
Socket
LED ‘Halo’
Status
Indicator
User
Instructions
Light Sensor
RFID Sensor
QR Code
Socket ID
Label
