EVQROCM-01-V01-R0 Installation and Operation Manual Quantum:EV OpenCharge
September 2020 Page 9 of 21
Labelling
Installers must observe any/all warning labels displayed on the equipment or inside the
equipment enclosure.
Labels may be in the form of adhesive ‘stickers’, plates, and/or moulded into the surface
of components.

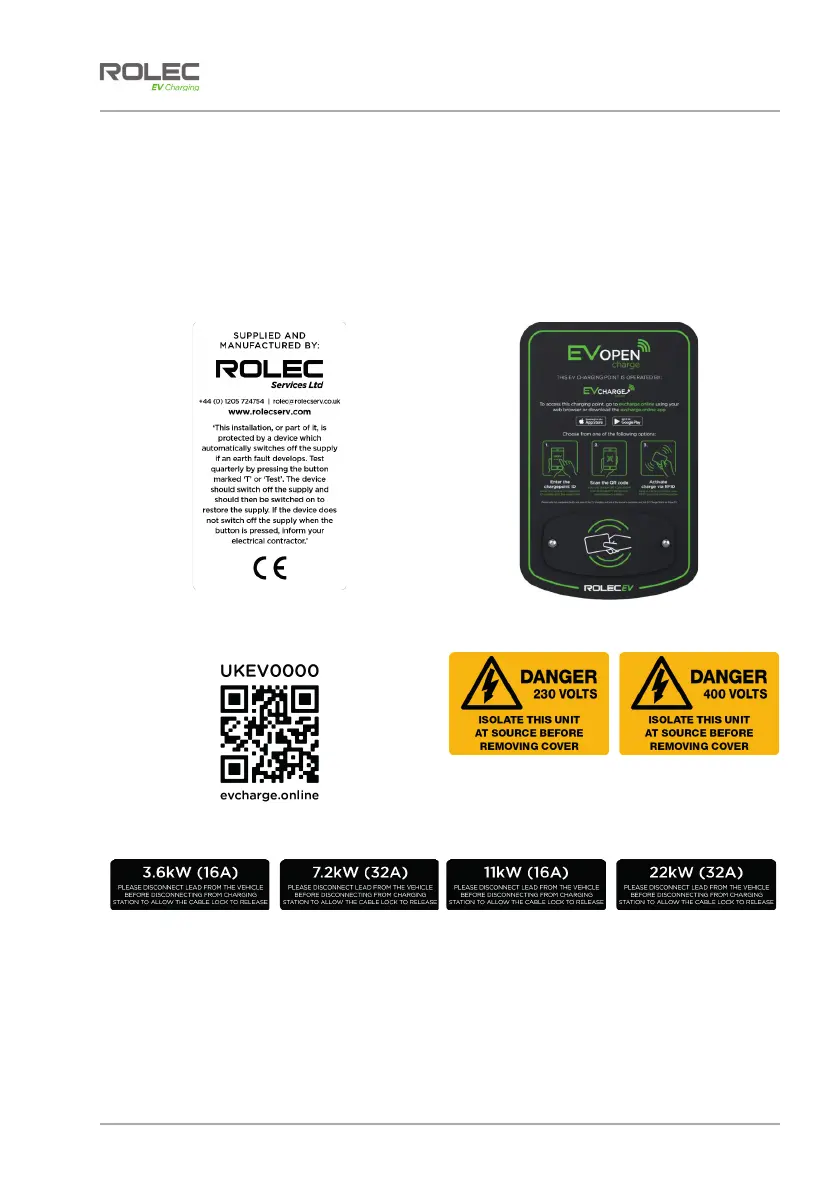

Information Labels
Figure 2 Typical Product / Rating Label
Figure 3 Front Facia Label
Figure 4 Socket QR Code Label
Figure 5 Electricity Warning Label (as appropriate)
Figure 6 Power Rating Label (as appropriate)
