22
R62 / R62T / R65 / R65T - Rev. A
4.6 HANDLE LUBRICATION (extraordinary maintenance)

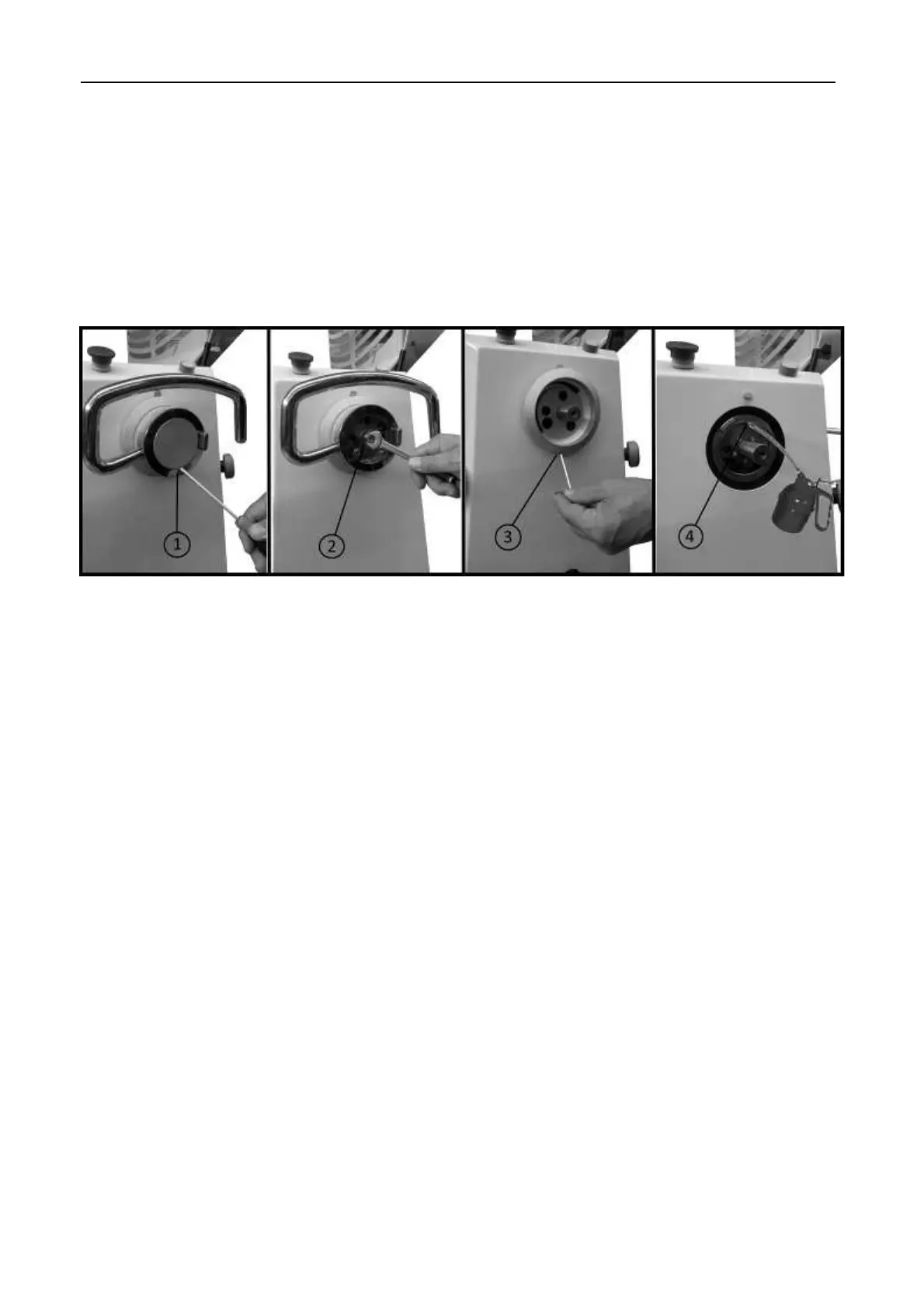

In case of friction of the handle, refer to Figure 19 and proceed as follows:
1. Insert the tip of a screwdriver in the slot and lever the lid up until the front lid Ref. 1 comes
out
2. Loosen nut Ref. 2 completely and slide out the handle from the shaft
3. Use an Allen wrench to loosen the grub screw ref. 3 to remove the graded sector
4. Use an oil pump to lubricate the area
5. Re-assemble the handle.
Figure 19
4.7 INTERVENTIONS TO BE CARRIED OUT EXCLUSIVELY BY AUTHORIZED ENGINEERS
Any maintenance intervention that does not fall within the types described until now, should be
considered as extraordinary maintenance operation and must be carried out exclusively by
engineers appointed by the manufacturing company or authorized by the same.
