30
R62 / R62T / R65 / R65T - Rev. A
5.3 INFORMATION ON NOISE
On the basis of sound measurements carried out on the machine using a Class 1 sound level meter
and a microphone positioned on the front part of the machine, that is where the operator should
normally stand, (at approximately 200 mm horizontally from the front part of the machine and at 1.6
m from the floor), while working without load and in normal conditions, the equivalent continuous
A-weighted sound pressure (LAeq) level is lower than 70 dB(A), even when considering a maximum
error equal to + 2.0 dB(A)
5.4 SAFETY SIGNS

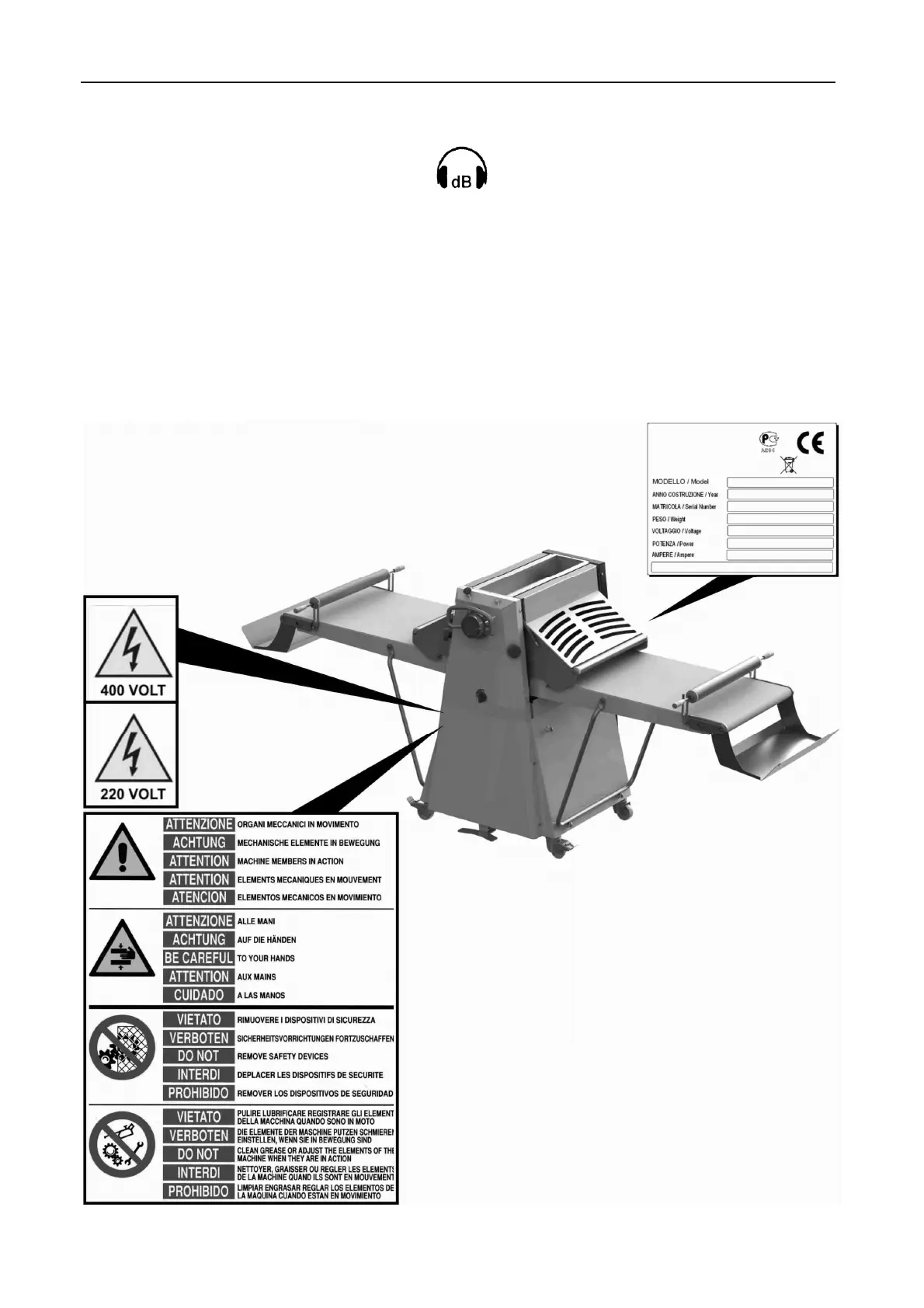

The safety signals illustrated in Figure 22is affixed on the machine::
Figure 22
