R62 / R62T / R65 / R65T - Rev. A

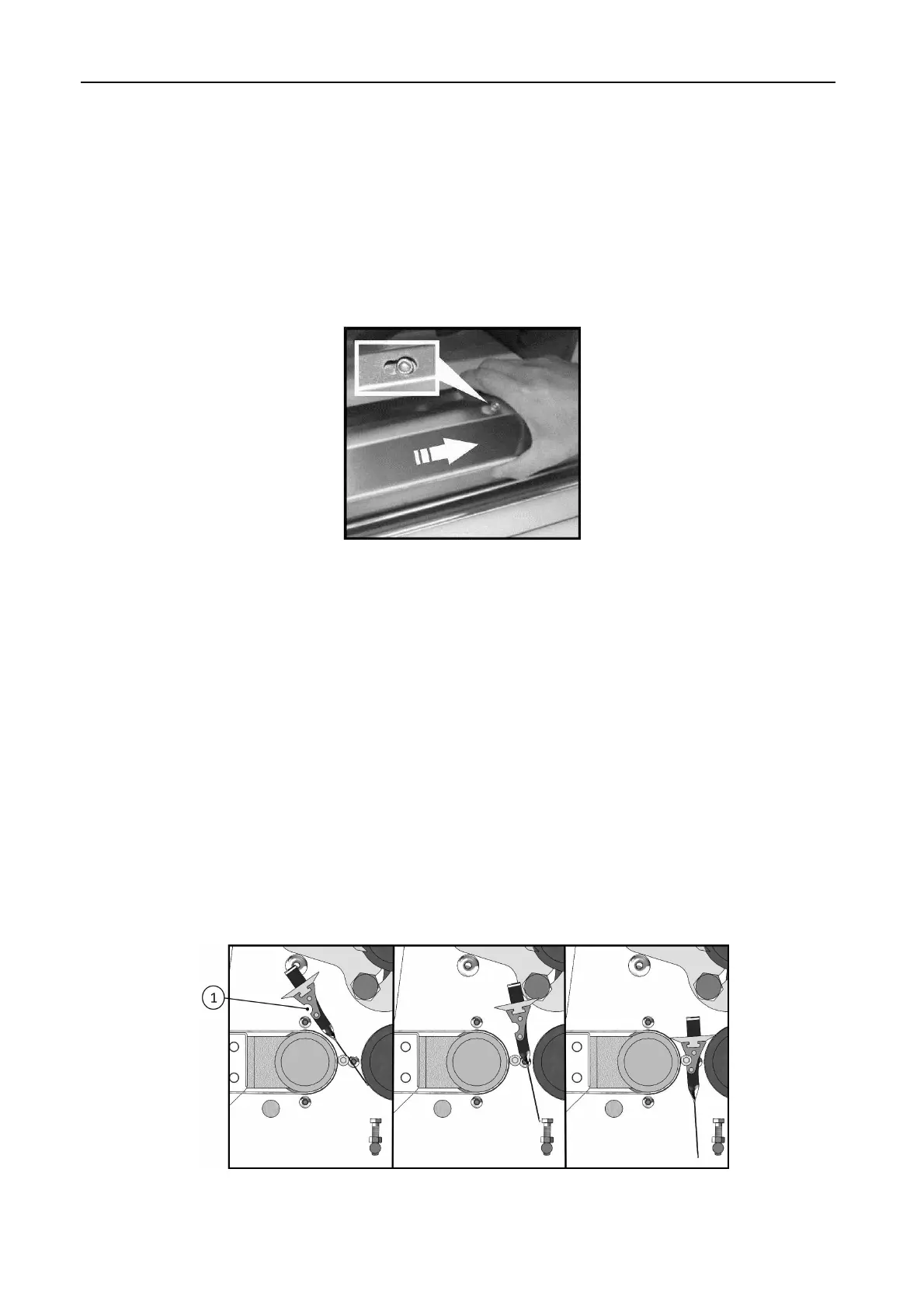

4.10.3 CLEANING THE SCRAPERS
UPPER ROLLER SCRAPER
Before assembling or disassembling the work tables, take the main switch to O (OFF) and unplug the
power plug, to prevent the machine from starting
To carry out this operation, refer to the following procedure and to Figure :
• Open the mobile guards ref. 3 Figure 1
• Grab the body of the scraper and push it against the roller and slide it into position so that
the head of the screw reaches the widened eyelet
• The scraper is now free and it is possible to remove it and clean it
Figure 22
• After cleaning it, take the machine back to its original condition
LOWER ROLLER SCRAPER
Before any assembly and disassembly operation, take the main switch to O (OFF) and unplug the
power plug, to prevent the machine from starting.
To carry out this operation, refer to the following procedure and to Figure 20:
• Open the mobile guards ref. 3 Figure 1
• Rotate the handle/handwheel ref. 11 Figure 1 and take the cylinders to their maximum
opening position
• Rotate the knob that locks the scrapers ref. 15 Figure 1anti-clockwise
• Remove the two scrapers by lifting them using the relative side flaps to make cleaning easier
• To reposition the scrapers, correctly insert them between the pins fastened to the shoulders
and the lower roller: the recess (ref. 1 Figure 20) must be on the opposite side of the cylinder
ATTENTION: the scraper must be inserted so that the two side blades are located as vertical
as possible (see Figure 23)
• Rotate the knob (ref. 15 Figure 1) clockwise and lock the scrapers in place
Figure 20
• After cleaning it, take the machine back to its original condition
