R62 / R62T / R65 / R65T - Rev. A 7

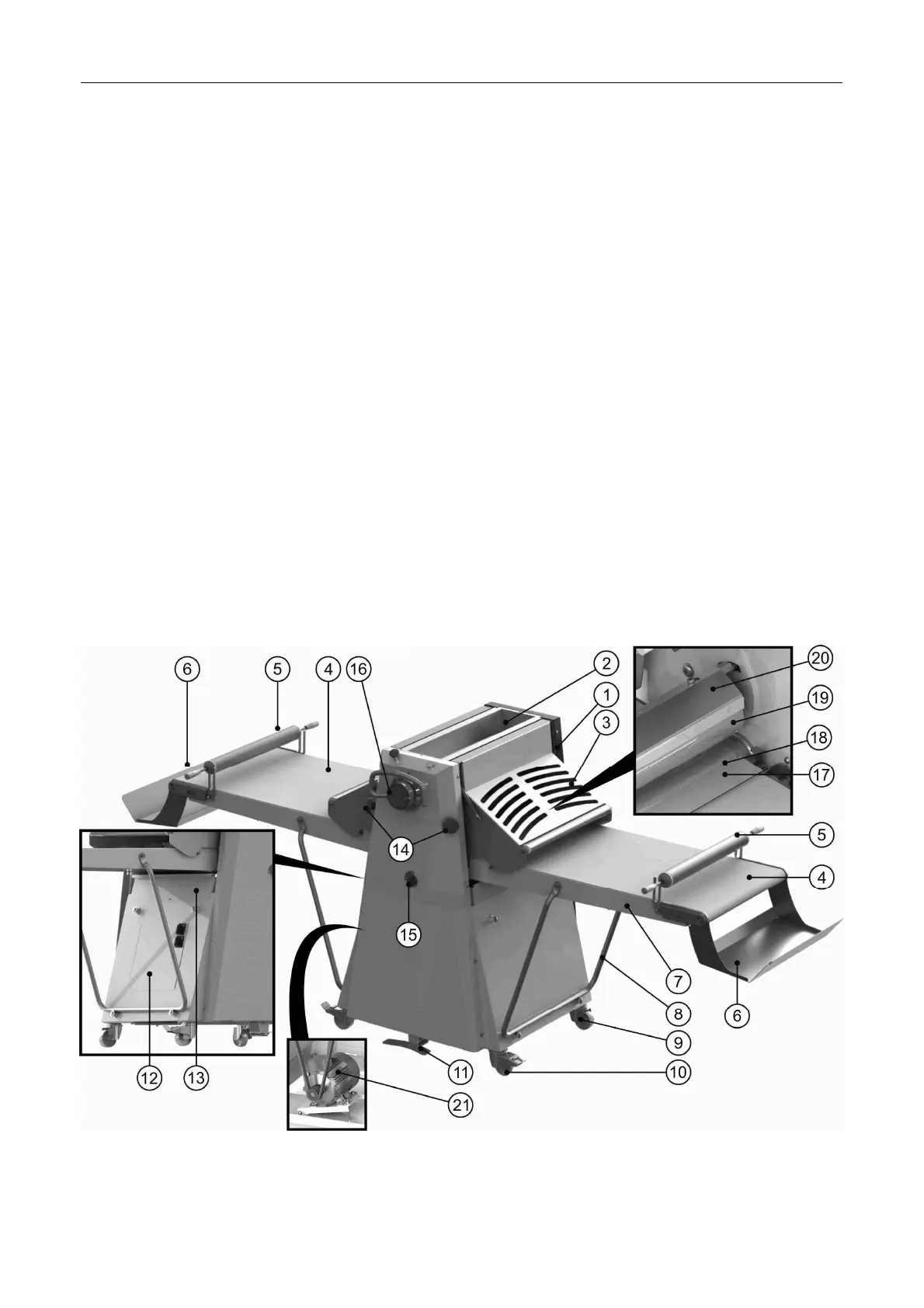

In addition to the main structure, the standard R62 machine consists of (Figure 1):
1. Guard
2. Flour tray
3. Mobile guards with safety microswitch
4. Belt
5. Rolling pin to manually process the dough
6. Dough collecting trays
7. Work table
8. Work table support
9. Back pivoting wheel
10. Front pivoting and braking wheel
11. Belt direction reversal pedal (option)
12. Electric board
13. Flour collection drawer with safety microswitch
14. Belt reversal push-buttons
15. Scraper locking knob
16. Roller opening adjustment handle/handwheel (dough thickness)
17. Lower roller scraper
18. Lower roller
19. Upper roller
20. Upper roller scraper
21. Motor
Figure 1
