Ropex 740303 - Wiring for Temperature Signals (MOD 40;46)

Installation
Version 1 RES-403 Page 15
MOD 26 cannot be used in combination with MOD 40 ("Temperature OK" signal) manufactured up
to September 2005.

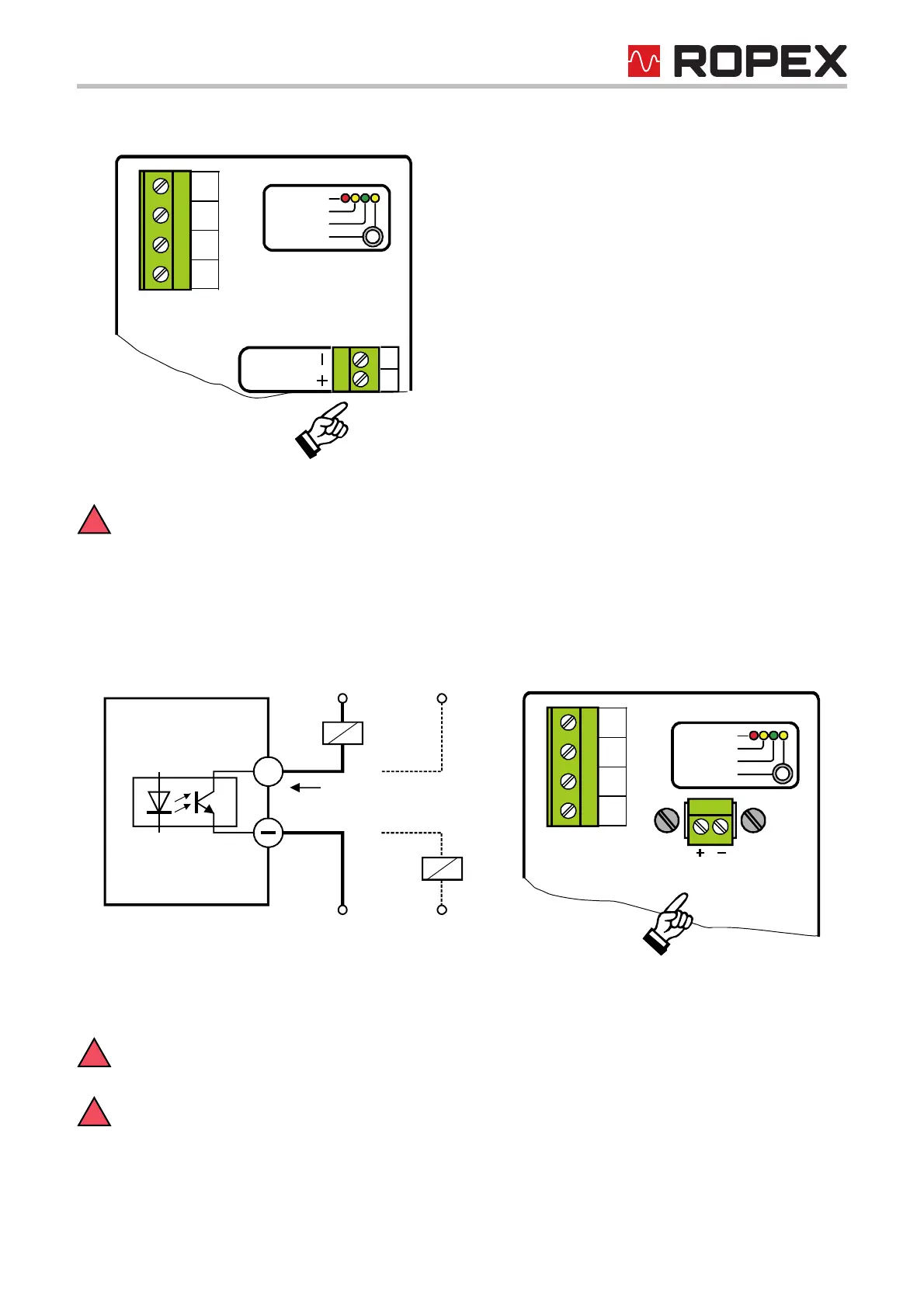

5.8 Wiring diagram with "Temp-
erature reached" signal (MOD 40)
or „Temp. OK“ signal (MOD 46)
MOD 40 cannot be used in combination with MOD 26 (booster connection) manufactured prior to
September 2005.
MOD 46 cannot be used in combination with MOD 40.
Additional terminals
in housing cover
for MOD 26 (Booster connection)
BOOSTER
19 20
4
3
2
1
AUTOCAL
OUTPUT
HEAT
ALARM
!
+
RES- 403
I max. 50mA
+24VDC
GND
GND
+24VDC
4
3
2
1
A
dditional terminals
in housing cover
for MOD 40 (”Temp. reached” signal)
or MOD 46 (”Temp. OK” signal)
AUTOCAL
OUTPUT
HEAT
ALARM
!
!
