Technical data
Version 1 RES-403 Page 43
Digital logic levels
„Temp. reached“
signal
(MOD 40)
or "Temp. OK" signal
(MOD 46)
U
max
=30VDC
I
max
=50mA
U
ON
< 2V (saturation voltage)
Alarm relay U
max
= 30V (DC/AC), I
max
= 0.2A, potential-free
Maximum load
(primary current of
impulse
transformer)
I
max
= 5A (duty cycle = 100%)
I
max
= 25A (duty cycle = 20%)
Power dissipation max. 20W
Ambient
temperature
+5…+45°C
Degree of protection IP20

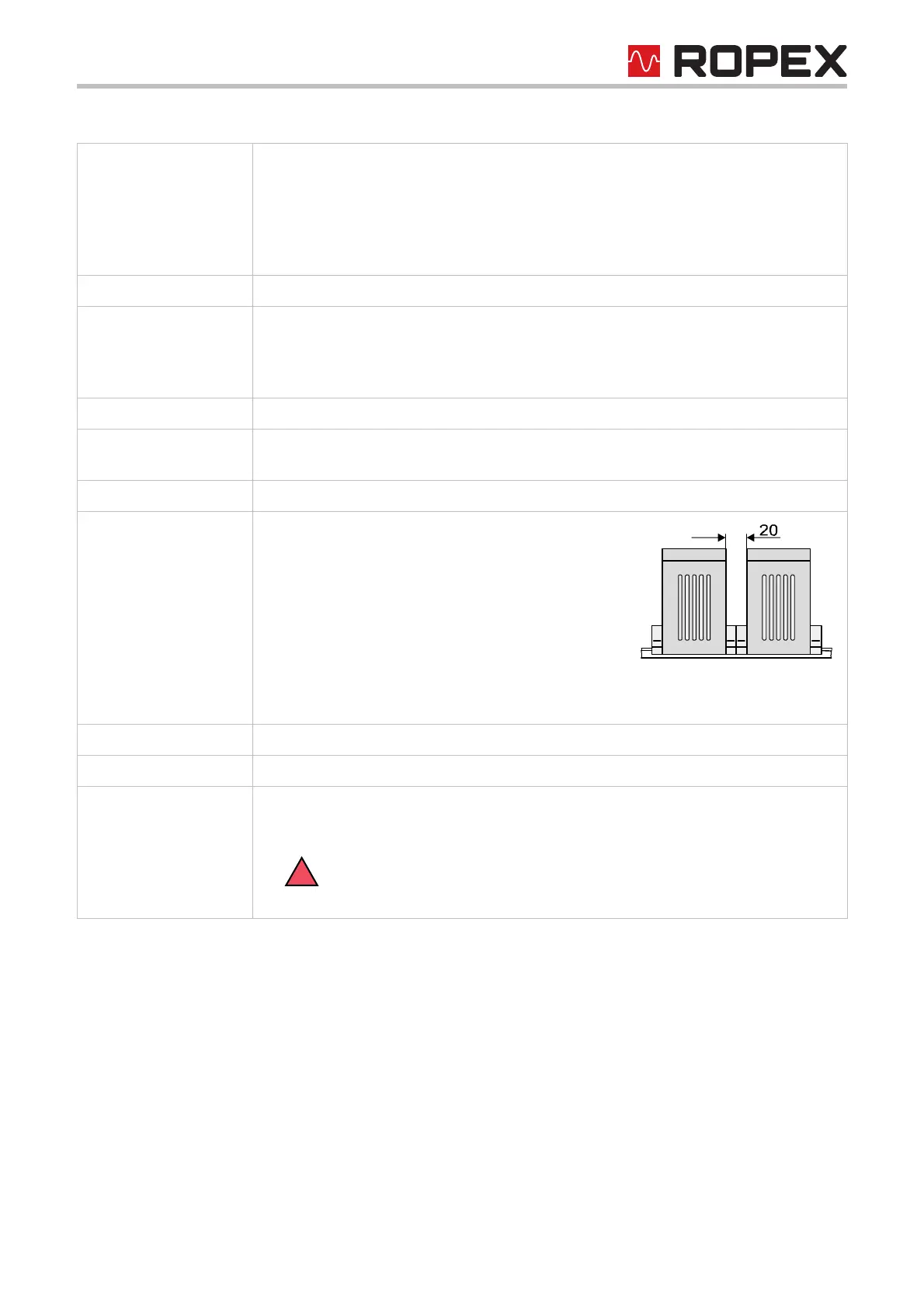

Installation If several controllers are installed on one top hat
rail (DIN TS35 rail), a clearance of at least 20mm
should be allowed between them.
The moving clip required for fastening must be
facing down for mounting on a horizontal top hat
rail.
End holders to mechanical fix the controller must be fitted at both ends for
mounting on a vertical top hat rail.
Weight Approx. 0.7kg (incl. connector plug-in parts)
Housing material Plastic, polycarbonate, UL-94-V0
Connecting cables
Type / cross-sections
Rigid or flexible; 0.2…2.5mm² (AWG 24…12)
Plug-in
If ferrules are used, they must be crimped in accordance with
DIN 46228 and IEC/EN 60947-1.
This is essential for proper electrical contact in the terminals.
