4.2 Modifications (MODs)
Owing to its universal design, the CIRUS temperature
controller UPT-606 is suitable for a very wide range of
heatsealing applications.
One modification (MOD) is available for the CIRUS
temperature controller UPT-606 for implementing spe-
cial applications.
MOD 01
Amplifier for low secondary voltages
(U
R
= 0.25…16VAC). This modification is necessary,
for example, for very short or low-resistance heating
elements.

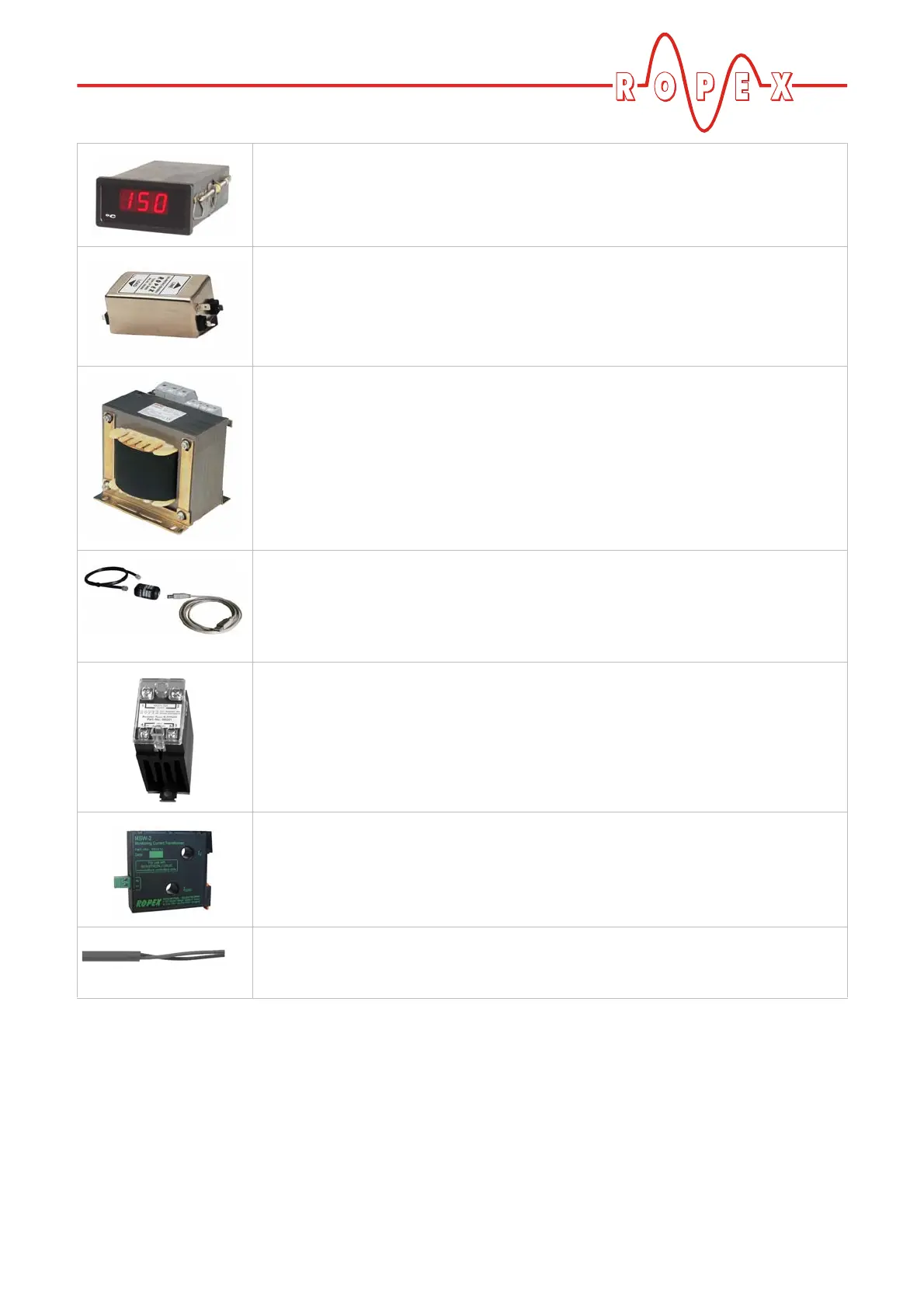

Digital temperature meter DTR-x
For front panel mounting or mounting on a top hat rail (DIN TS35 rail).
Digital indication of the ACTUAL temperature of the heating element in °C, with
HOLD function.
Line filter LF-xx480
Essential in order to ensure CE conformity.
Optimized for the CIRUS temperature controller.
Impulse transformer ITR-x
Designed according to VDE 0570/EN 61558 with a one section bobbin.
Optimized for impulse operation with CIRUS temperature controllers.
Specified according to the heatsealing application
( ROPEX Application Report).
Communication interface CI-USB-1
Interface for connecting a RESISTRON temperature controller with diagnostic inter-
face (DIAG) to the PC (USB port). Associated PC visualization software for dis-
playing setting and configuration data, and for recording SET and ACTUAL tempe-
ratures in real time.
Booster B-xxx400
External switching amplifier, necessary for high primary currents (continuous
current > 5A, pulsed current > 25A).
Monitoring current transformer
For detecting frame short-circuits on the heating element.
Used as an alternative to the standard PEX-W2/-W3 current transformer.
Measurement cable UML-1
twisted measurement cable for the U
R
-voltage measurement.
Trailing cable, halogene und silicone free.
