HART Tri-Loop HART-to-Analog Signal Converter
2-4
INSTALLATION
CONSIDERATIONS
• Install the Tri-Loop in a location where it will be within the
operating temperature specification of 50 to 104 °F (10 to 40 °C).
• A Tri-Loop can
NOT
be installed in hazardous areas.
• Wiring need not be shielded, but twisted pairs should be used for
best results. Wiring should be between 24–12 AWG (solid or
stranded) and not exceed 1,000 feet (305 meters).
MECHANICAL
CONSIDERATIONS
The Tri-Loop may be rail mounted on any of the DIN rails shown in
Figure 2-3. Simply snap the Tri-Loop onto the rail in the desired location.

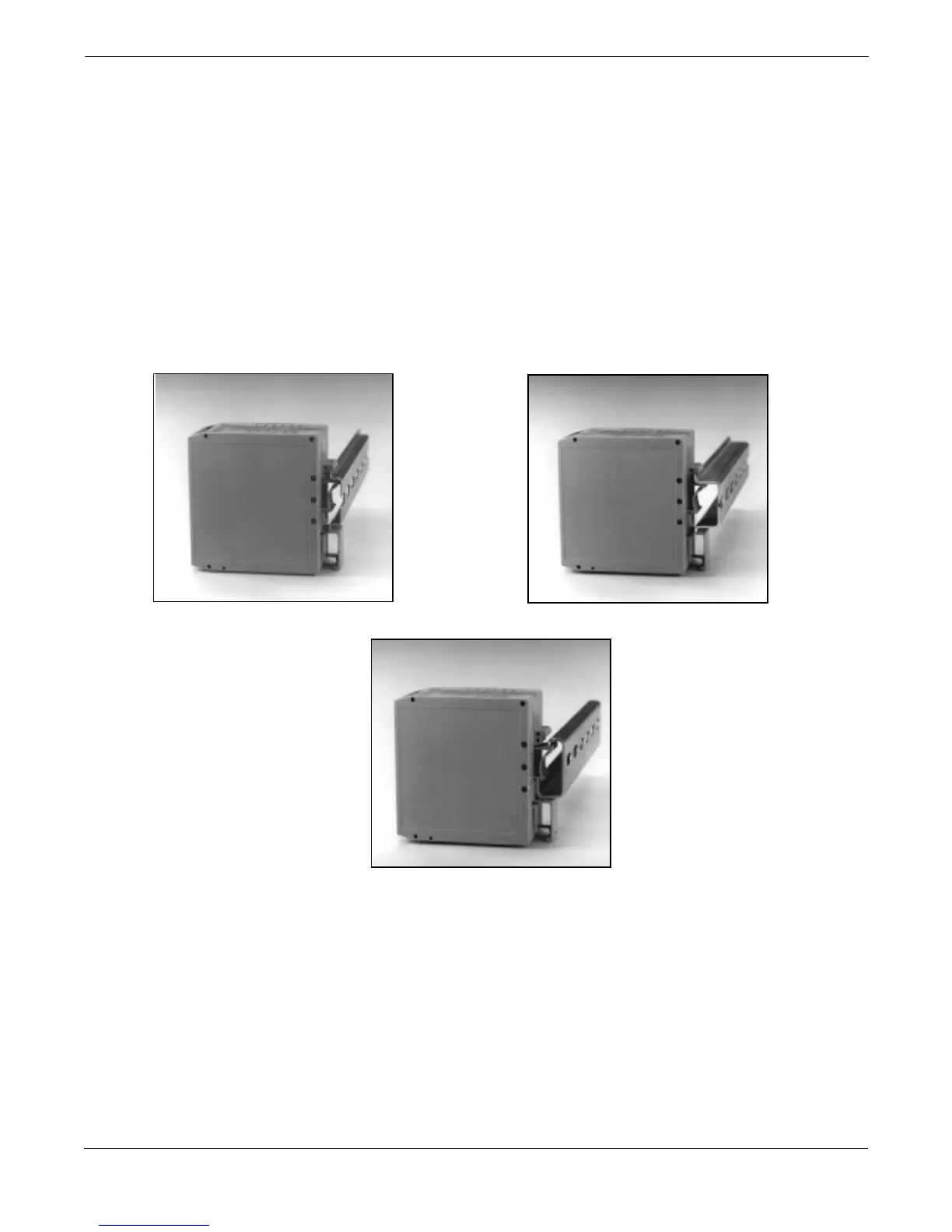

FIGURE 2-3. DIN Rail Mounting Options.
SYMMETRICAL 35 X 7.5 MM TOP HAT RAIL
SYMMETRICAL 35 X 15 MM TOP HAT RAIL
ASYMMETRICAL 32MM G RAIL
3095-060AB
3095-058AB
3095-059AB
