Rosemount 333 HART Tri-Loop - Record Model 3095 MV Units

2-9
Installation
Record Model 3095 MV
Units
NOTE
The Tri-Loop will alarm if there is a unit mismatch between the Model
3095 MV and the Tri-Loop Channel.
To assist in Tri-Loop commissioning, (Section 3), we recommend that
you record the Model 3095 MV process variables and units in Table 2-1.
T
ransmitter
U
nits
This screen sets the units for the five process variables:
Differential Pressure, Absolute Pressure, Gage Pressure, Process
Temperature, and Flow Applications.
1. Using the Model 3095 MV Engineering Assistant, access the
T
ransmitter, Units Screen.
2. If desired, change the displayed units. Modifying the information
on this screen and selecting OK immediately changes the
connected transmitter.
3. Record in Table 2-1 the selected units for each process variable.

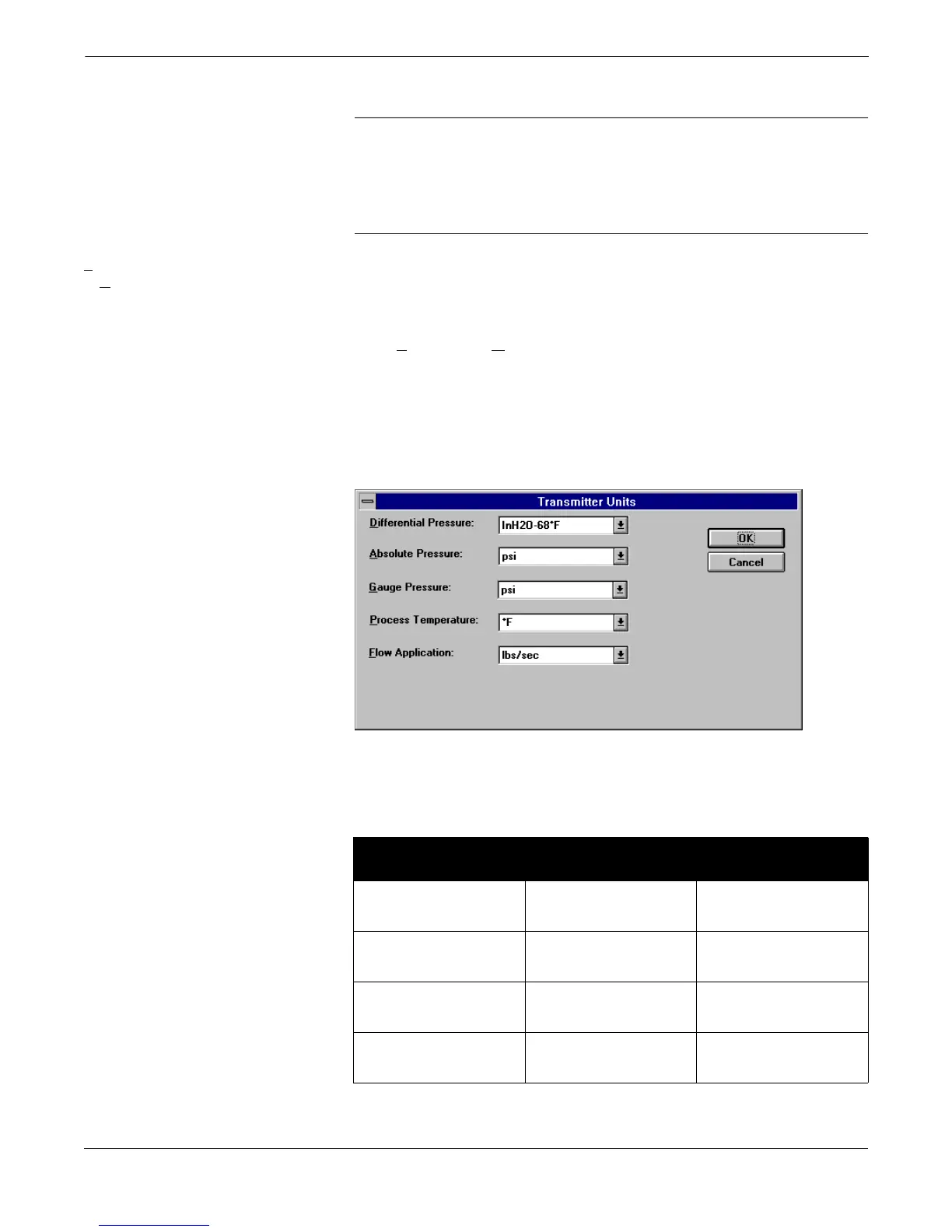

FIGURE 2-9. Units Screen.
3095-30950092
TABLE 2-1. Table for entering Model 3095 MV Process Variables and Units.
Model 3095 MV
Process Variable
User-Assigned
Variables
User-Assigned
Units
Primary
Secondary
Ter ti ary
Fourth
3095-30950097
