Rosemount 8732E - PRE-INSTALLATION; Mechanical Considerations

Quick Installation Guide
00825-0100-4663, Rev BC
December 2012
Rosemount 8732
3
STEP 1: PRE-INSTALLATION
Before installing the Rosemount 8732 Magnetic Flowmeter Transmitter, there are several
pre-installation steps that should be completed to make the installation process easier:
• Identify the options and configurations that apply to your application
• Set the hardware switches if necessary
• Consider mechanical, electrical, and environmental requirements
Mechanical Considerations
The mounting site for the Rosemount 8732 transmitter should provide enough room for
secure mounting, easy access to conduit ports, full opening of the transmitter covers, and
easy readability of the display screen (see Figure 1).
If the Rosemount 8732 is mounted separately from the sensor, it is not subject to limitations
that might apply to the sensor.

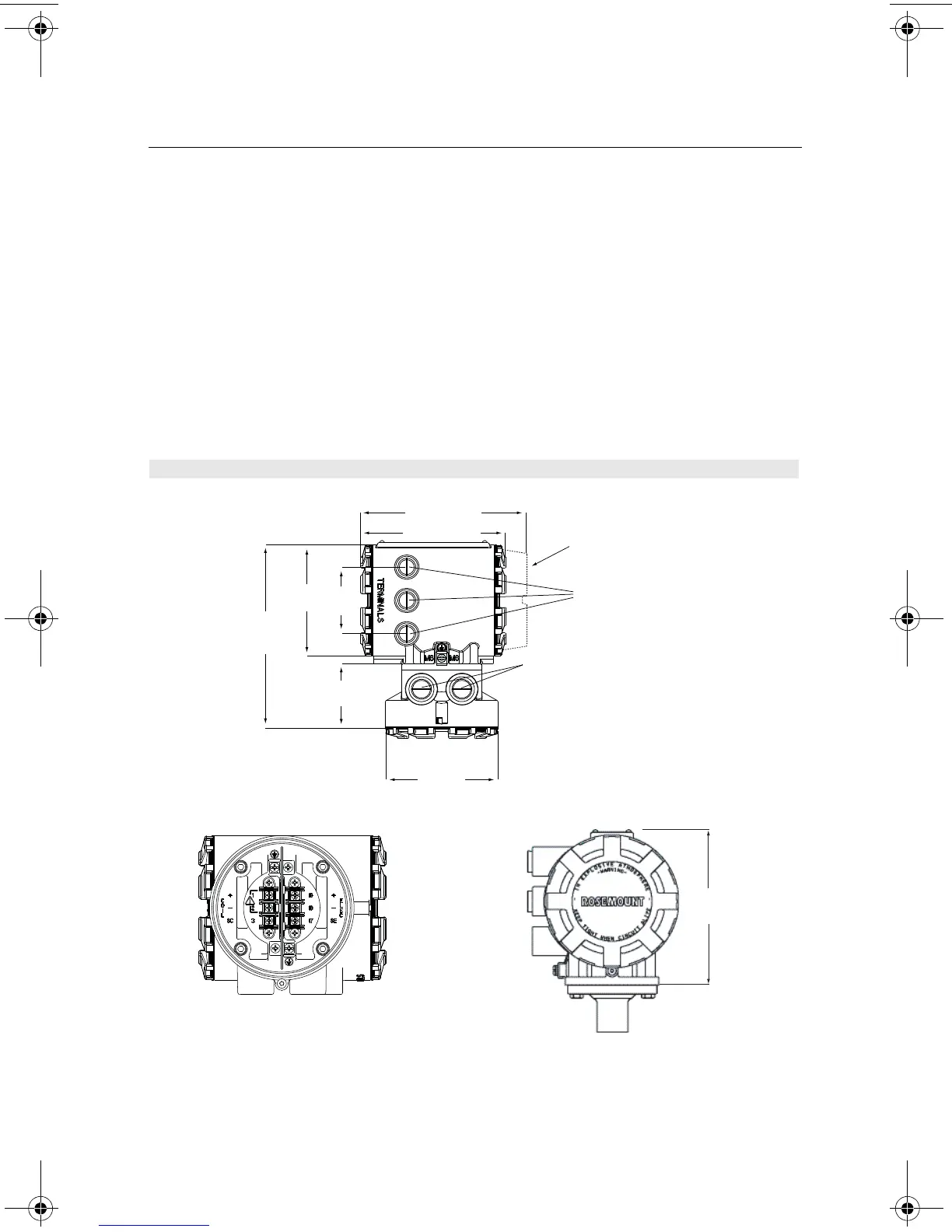

Figure 1. Rosemount 8732 Dimensional Drawing
NOTE:
* M20 and PG 13.5 connections are available with the use of threaded conduit adapters.
5.82
(148)
6.48 (165)
7.49 (190)
LOI Cover
4.97
(126)
8.81
(224)
3.00
(76)
3.07
(78)
4.97
(126)
1
/2”-14 NPT, (3 places)*
1
/2”-14 NPT, (2 places)*
