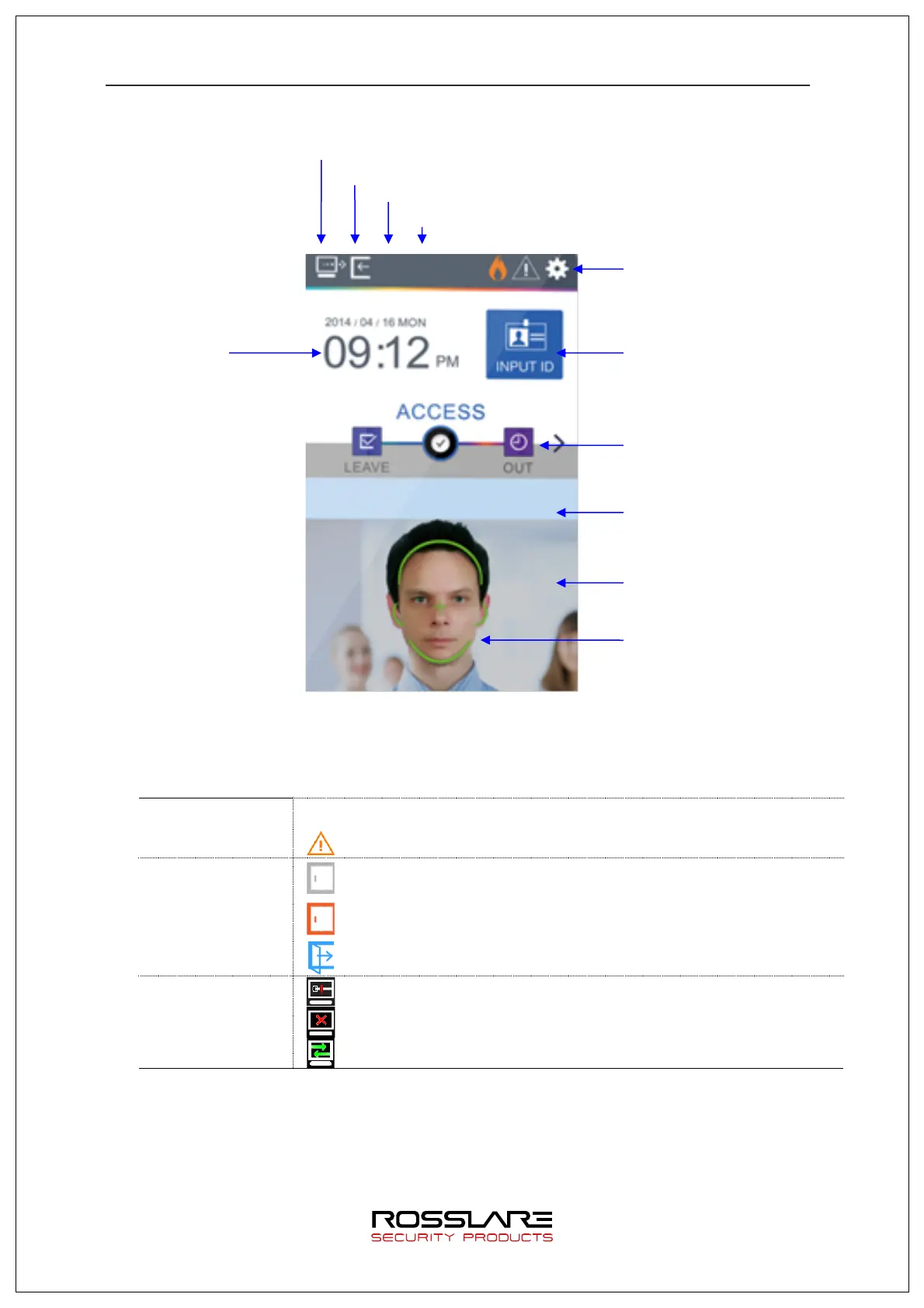

1.3. Screen Information during Operation
1.3.1. Icon Information
① Warning
display
None
: Normal
: Terminal is disassembled or abnormal status like door error
② Door status
: Door status is not known
: Door is closed
: Door is open
③ Server
connection
status
: LAN cable is not connected
: Not connected to server program
: Not connected to server program
④ Fire sensor
③ Warning signals such as terminal separation
② Current state of the entrance
① Connection state with the server
Menu button
ID input button
Entrance mode selection
button (Indication of the
state of the entrance)
User guidance message
Camera movie display
Face registration location
guide
Current time
