Wiring Instructions
AYC-Qx4 family manual Page 13

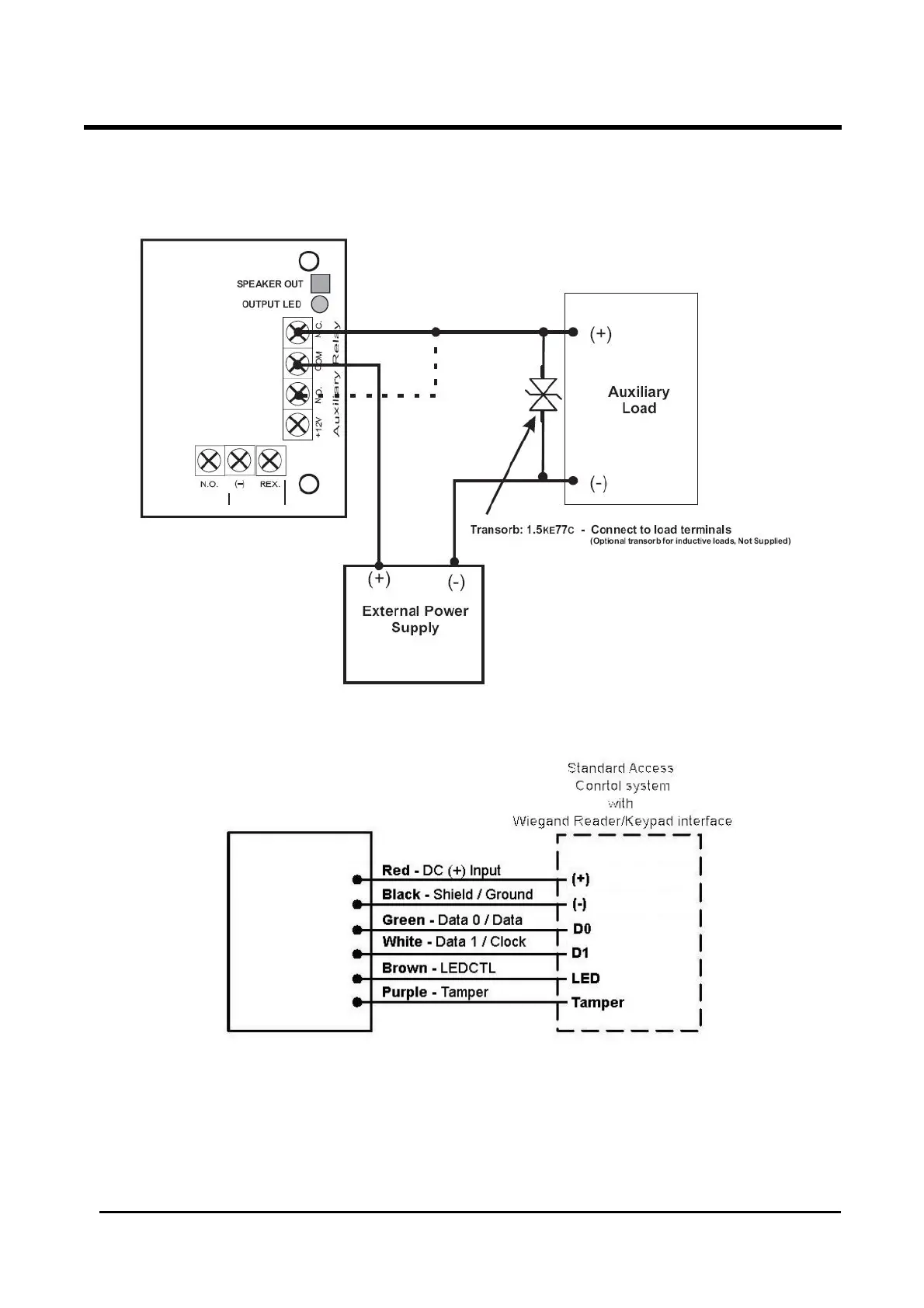

Wiring diagram #3 (below) shows the auxiliary output connection
using the external power.
Figure 4 Controller Application Wiring Diagram #3
Figure 5: Reader Application Wiring Diagram #4
Rosslare
PS-X25
AYC-Qx4B
