ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo

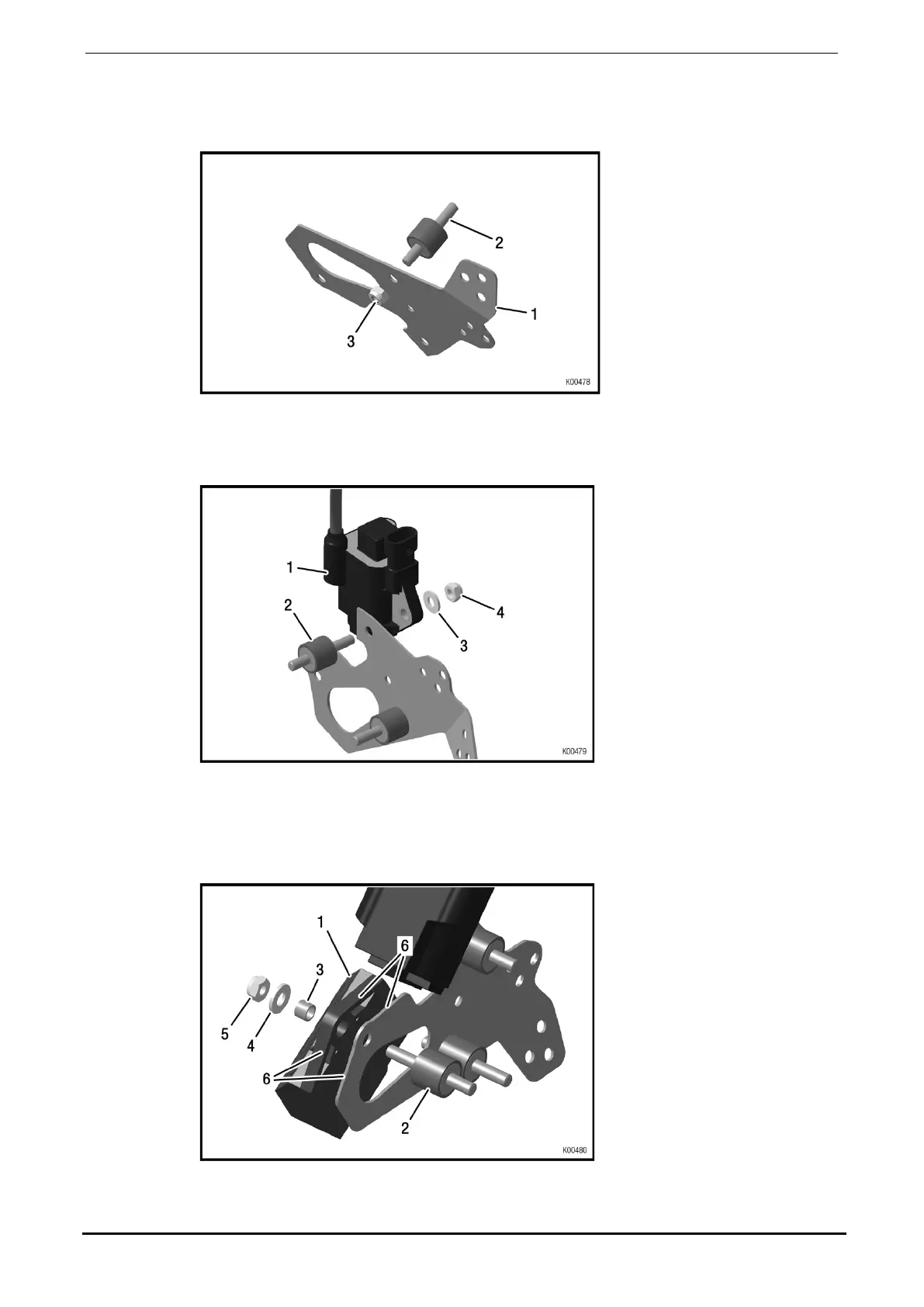

6. Finalizing of mounting plate
 Mount rubber buffer M6 (pos. 2) with the shorter threaded end to the mounting plate
(pos. 1) and fix with lock nut M6 (pos. 3).
Fig. 13
 Fix ignition coil (pos. 1) with rubber buffer M6 (pos. 2), washer (pos. 3) and lock nut
M6 (pos. 4) onto the mounting plate.
 Note: Use the long threaded end of the rubber buffer.
Fig. 14
 Fix ECU (pos. 1) with rubber buffer M6 (pos. 2), distance sleeve (pos. 3), washer
(pos. 4) and lock nut M6 (pos. 5) onto the mounting plate.
 Note: Use the long threaded end of the rubber buffer.
 Note: ECU and mounting plate have the same shape in this area (pos. 6).
Fig. 15
Page 11/53 Edition 07/2016
