For some units, the wired controller connects to the unit HA and HB ports through the HA
and HB ports. There is no polarity between HA and HB. SeeFig. 3-7

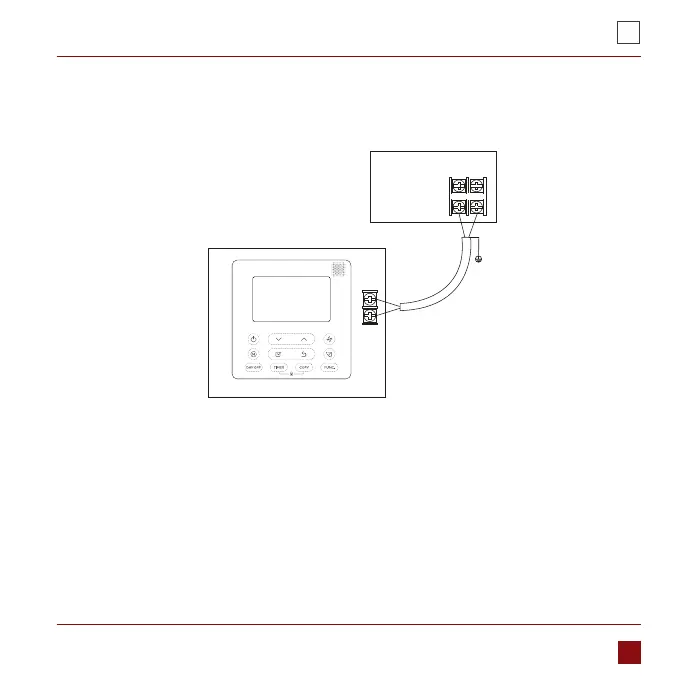

Fig. 3-7
HA HB
Indoor Unit
Wired Controller
HA HB
HAHB
HAHB
Indoor Unit
Wired Controller 1
Wired Controller 2
