Installation
24
FA ROTEX Solaris - 08/2007

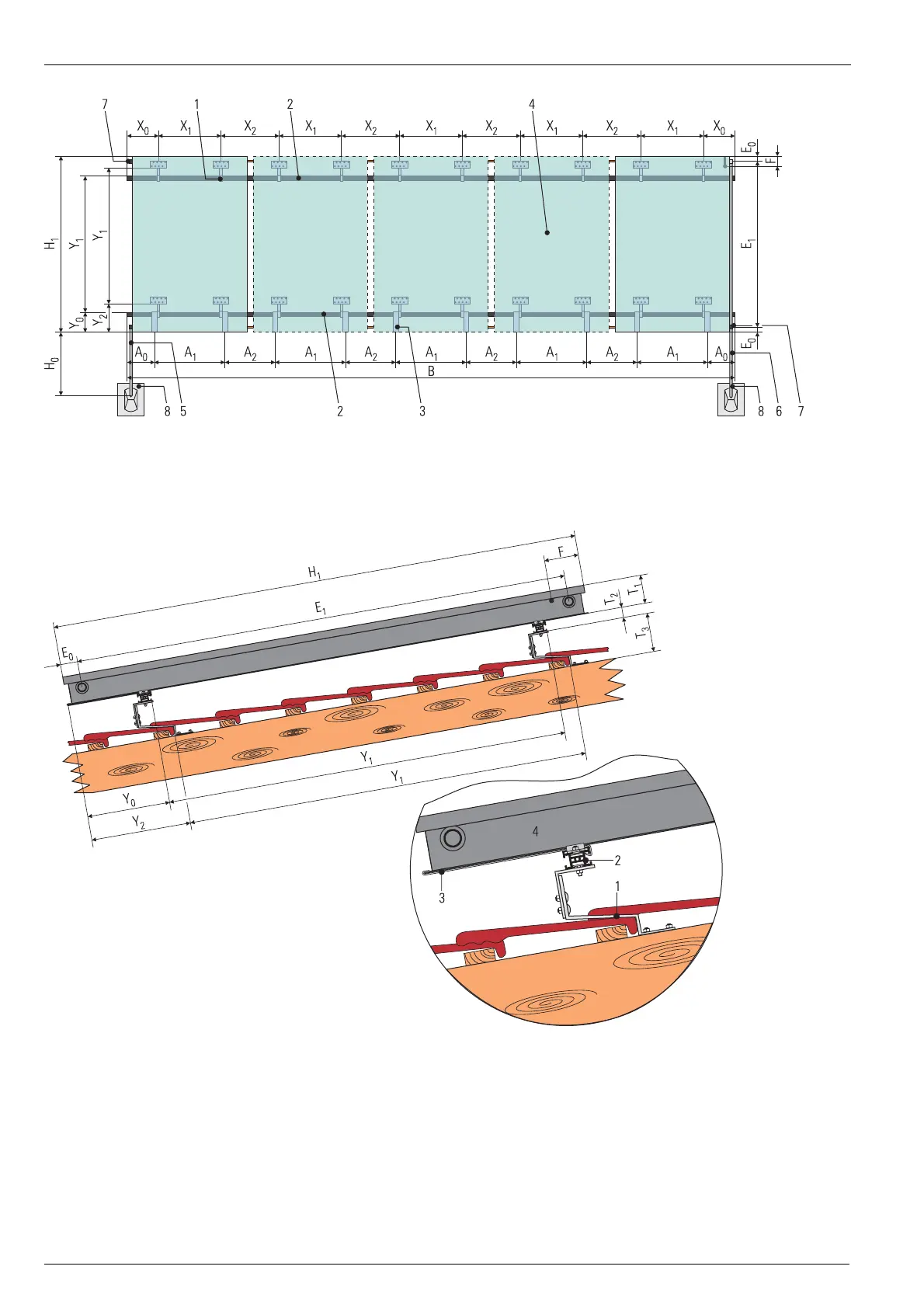

Fig.
3-47
Main dimensions of a Solaris solar panel array for on-roof mounting (example sh
ows V26A solar panels)
1
Roof mounting bracket
2
Mounting rail
3
Solar panel securing clip
4
Solaris V26 flat solar panel
5
Return flow connection pipe
6
Feed connection pipe
7
Solar panel drain plug
8
Universal roof duct
Fig.
3-48
Side view of Solaris solar panel mounted on a ro
of
23
25
