Rotex Solaris User Manual

7 x Hydraulic system integration
53
FA ROTEX Solaris - 08/2007
7 Hydraulic system integration
1) The stainless steel corrugated pipe exchanger for heating support in the Sanicube Solaris can transfer approx. 0.2 kW per Kelvin excess temperature
compared with the average temperature in the solar area of the storage tank.
2) The second stainless steel corrugated pipe exchanger in the Sanicube Solaris can transfer approx. 1.0 kW per Kelvin excess temperature compared with the
average temperature in the hot water area of the storage tank.
WARNING!
High temperatures can arise in the solar storage tank. The hot water installation must be fitted with an
adequate anti-scald protection (e.g. an automatic hot water mixer).
CAUTION!
As option, the ROTEX devices can be equipped with gravity brakes ( 16 50 70) made of plastic. These
are suitable for operating temperatures of maximum 95°C. If a heat exchanger is to be operated at higher
than 95°C, another gravity brake must be installed on site.
Shown below is a selection of the most frequently installed system arrangements. The arrangements shown
are only examples, and are no substitute for careful system planning. Additional arrangements are shown on
the ROTEX website.

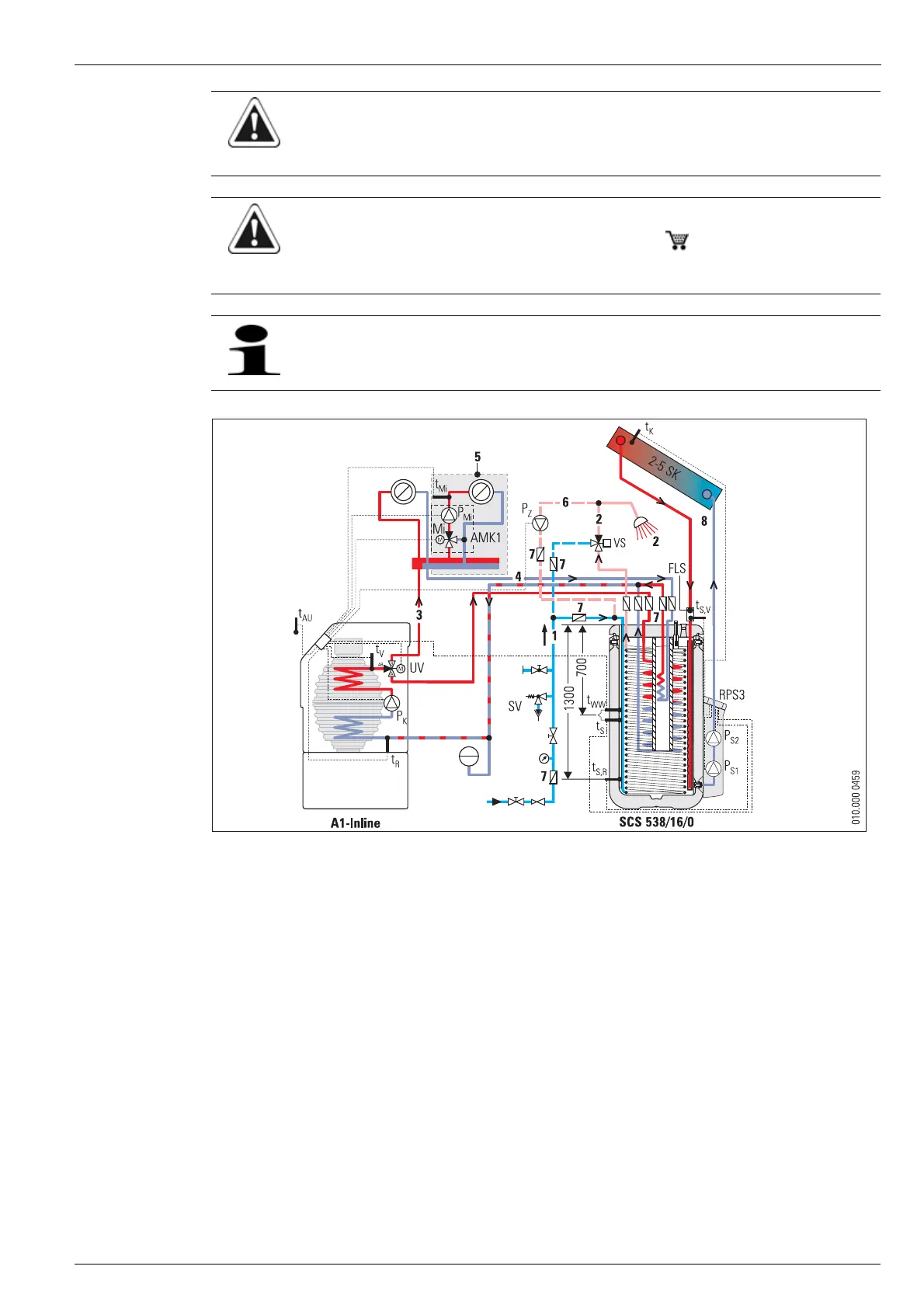

Fig. 7-1 Standard Solaris installation with SCS 538/16/0
1) 2)
