Rotex Solaris User Manual

7 x Hydraulic system integration
54
FA ROTEX Solaris - 08/2007
1) The stainless steel corrugated pipe exchanger for heating support in the Sanicube Solaris can transfer approx. 0.2 kW per Kelvin excess temperature
compared with the average temperature in the solar area of the storage tank.
2) The second stainless steel corrugated pipe exchanger in the Sanicube Solaris can transfer approx. 1.0 kW per Kelvin excess temperature compared with the
average temperature in the bottom half of the storage tank.

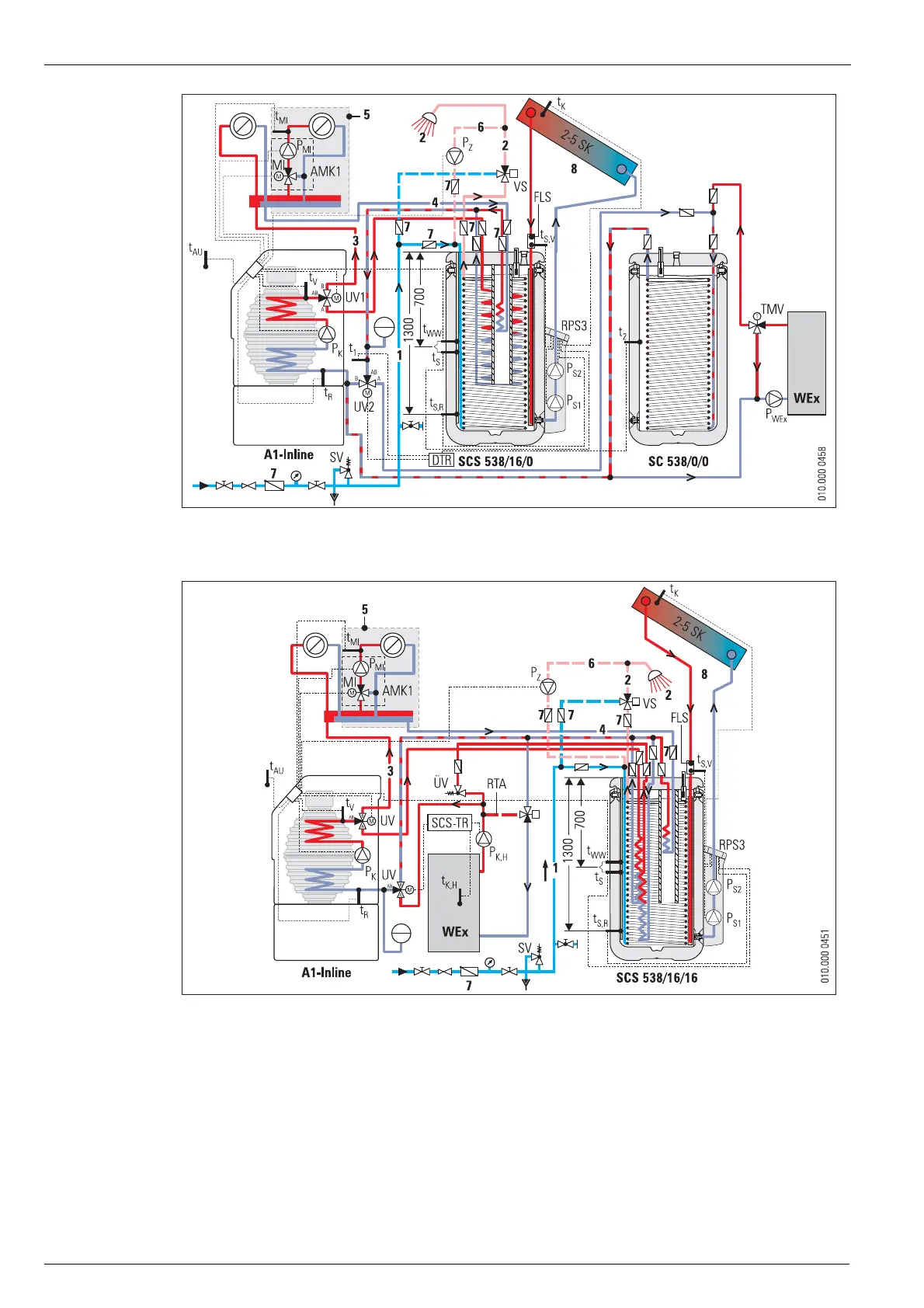

Fig. 7-2 Wood-fired boiler combined with a standard Solaris system via a storage tank
Fig. 7-3 Wood-fired boiler combined with SCS 538/16/16
1) 2)
