Rotex Solaris User Manual

8 x Technical data
62
FA ROTEX Solaris - 08/2007
Temperature sensor
Solaris sensor Sensor type Measured temperature in °C
–20 –10 0 10 20 30 40 50 60 70 80 90 100 110 120
Sensor resistance in Ohm according to standard or manufacturer's indications
TR, TS PTC 1386 1495 1630 1772 1922 2080 2245 2418 2598 2786 2982 3185 3396
TK Pt 1000 922 961 1000 1039 1077 1116 1155 1194 1232 1270 1308 1347 1385 1423 1461
FlowSensor Sensor voltage in V acc. to manufacturer
TV (0.5–3.5 V) 0.5 0.80 1.10 1.40 1.70 2.00 2.30 2.60 2.90 3.20 3.50
Flow rate
Solaris sensor Sensor type Measured flow in l/min
FlowSensor
0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0
Sensor resistance in Ohm according to standard or manufacturer's indications
V (0.36–3.5 V) 0.36 0.67 0.99 1.30 1.62 1.93 2.24 2.56 2.87 3.19 3.50

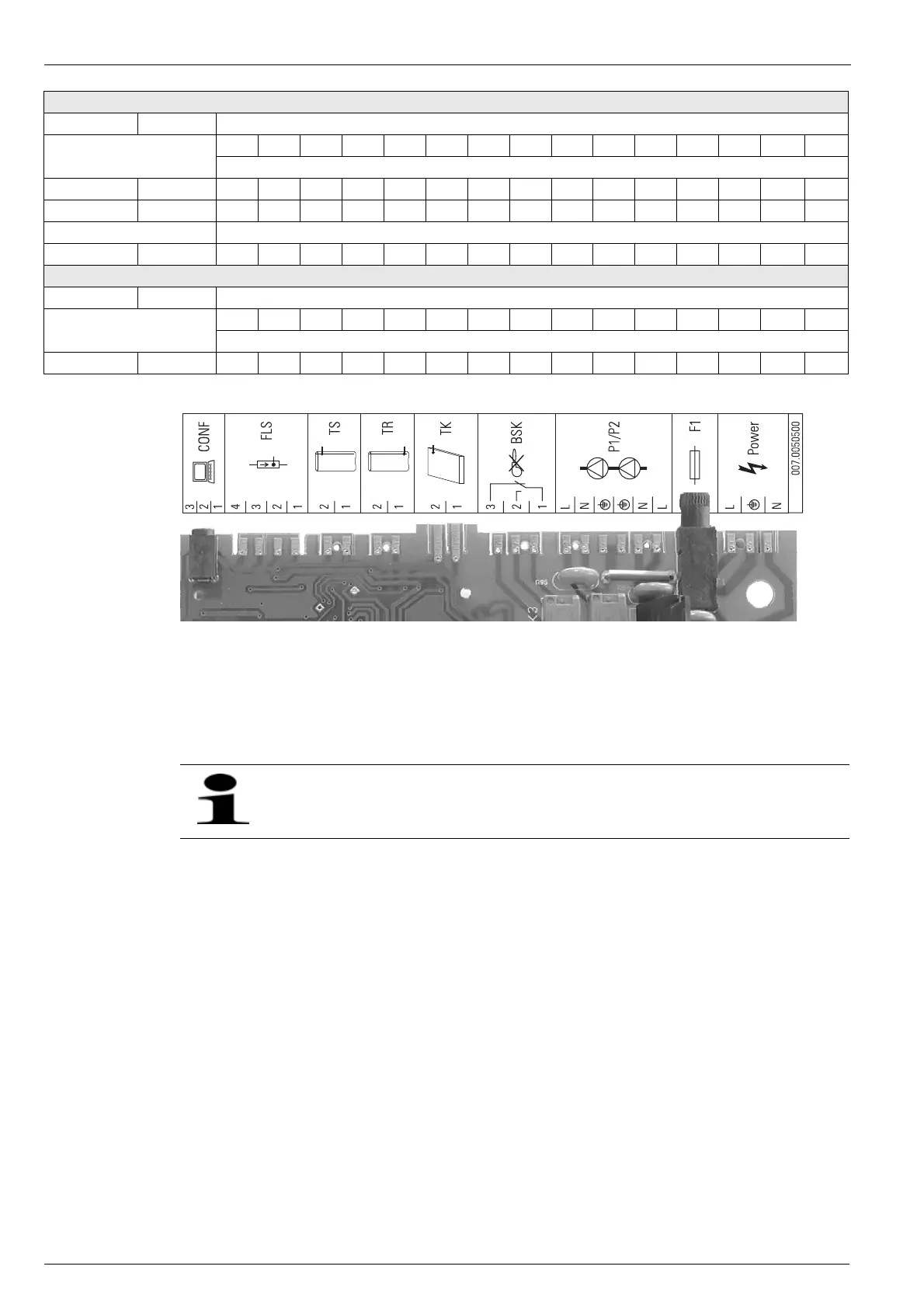

Tab. 8-3 Table of the Solaris sensors
Fig. 8-3 Terminal assignment
CONF Programming connector for control
unit update
FLS Flow sensor
TS Storage tank temperature sensor
TR Return flow temperature sensor
TK Solar panel temperature sensor
BSK Burner inhibit contact
P1/P2 Operation and booster pump
F1 Fuse
Power Mains supply
Technical data of the E-Solar Unit, Gas Solar Unit, and Sanicube series are given in the ROTEX price list and
the corresponding technical documents of the products.
