Pakscan Classic Field Network

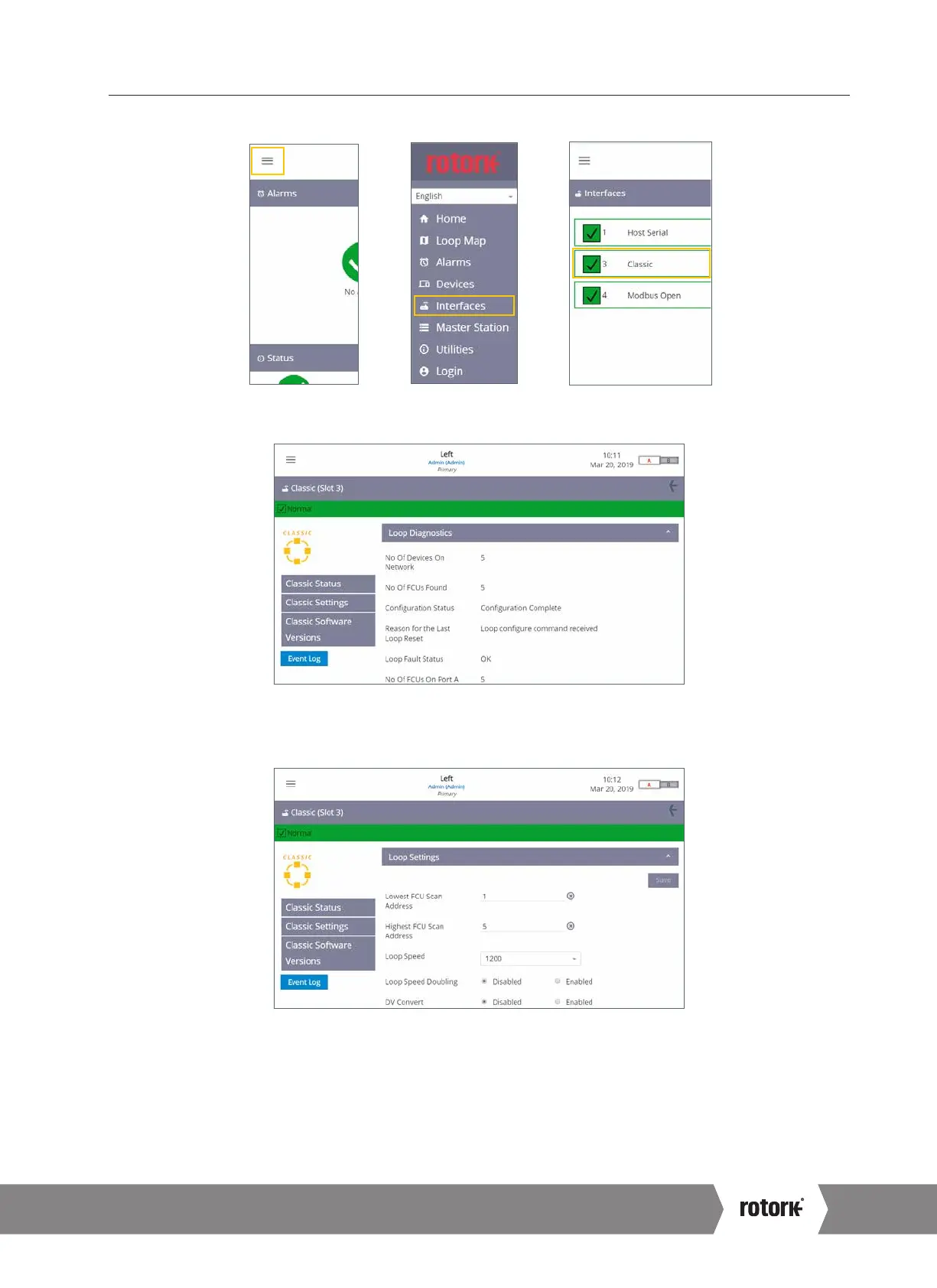

Fig. 6.15 Select menu Fig. 6.16 Select Interfaces Fig. 6.17 Select Classic
Fig. 6.18
Pakscan Classic Loop Diagnostics
Classic Status details the current state of the classic loop and the connected FCUs.
Fig. 6.19
Pakscan Classic Loop Settings
The Lowest FCU Scan Address and Highest FCU Scan Address must be set*. If multiple classic field networks are installed, address ranges
must not overlap ensuring each FCU has a unique address on the Master Station. Loop Speed must be configured to an appropriate
value taking into account loop distance, cable specification and number of connected FCUs. Refer to PUB059-011 for guidance on loop
speed calculation.
*These settings define how many FCUs (field control units) the classic AIM should scan for and which addresses they are. The individual FCUs must be
configured with a unique address within this range.
6. Basic Commissioning continued
