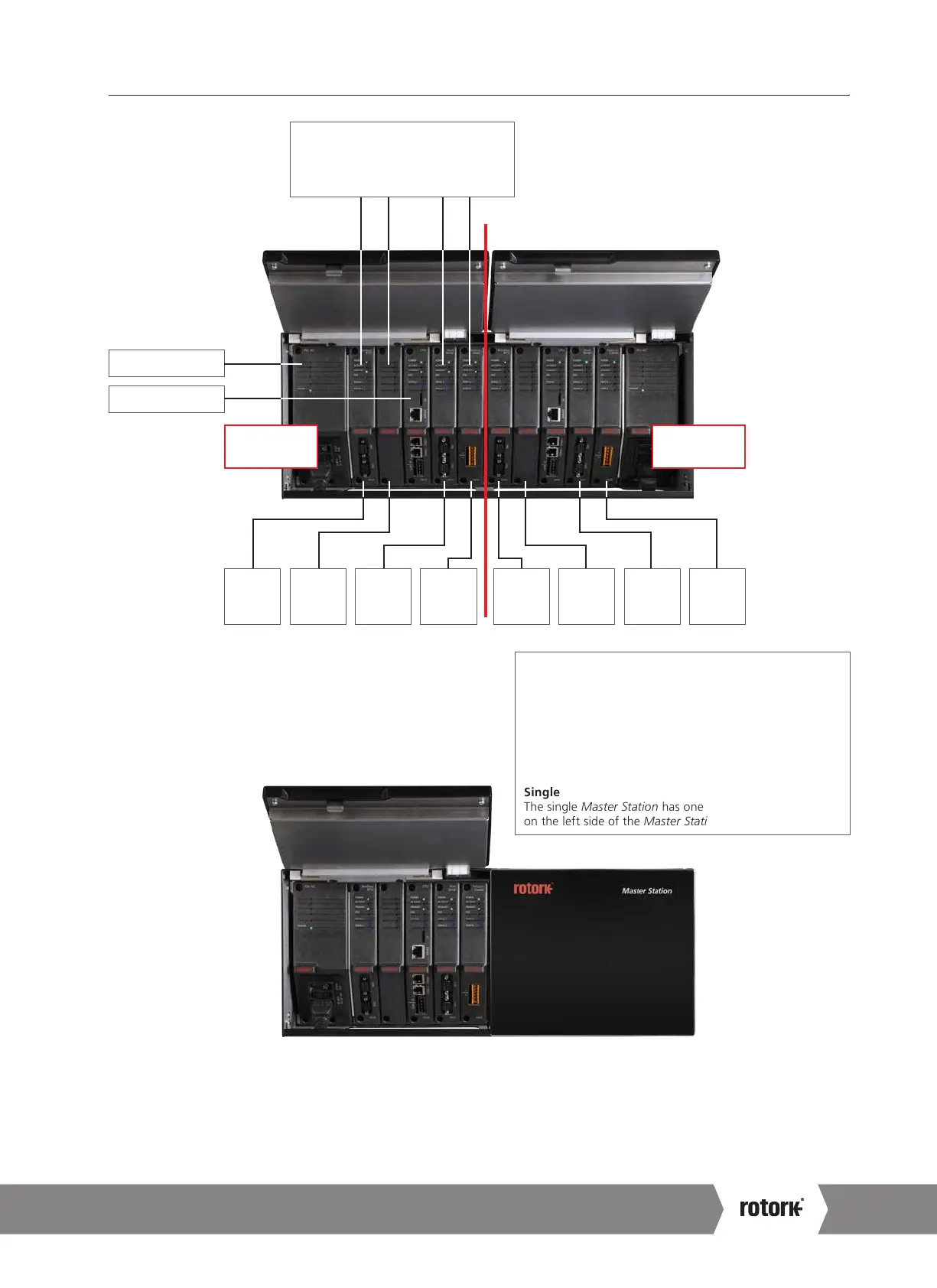

2. Know your Rotork Master Station continued
Hot Standby
The hot standby Master Station contains a duplicate set of
modules on the right hand side. The position of AIMs fitted
on the right must match the modules fitted on the left.
Dual
The dual Master Station has two separate sides that can
accommodate different modules. A dual Master Station
operates as two single Master Stations.
Single
The single Master Station has one set of modules installed
on the left side of the Master Station chassis.
Single
Rotork Master Station
Option Slot 1, 2, 3, 4
Four slots are available for AIM
installation. Empty slots will have a
blank cover fitted.
PSU module
Side A
AIM
Slot 1
Side A
AIM
Slot 2
Side A
AIM
Slot 3
Side A
AIM
Slot 4
Side B
AIM
Slot 1
Side B
AIM
Slot 2
Side B
AIM
Slot 3
Side B
AIM
Slot 4
CPU module
Hot Standby and Dual
Rotork Master Station
Hot Standby
Side A
Hot Standby
Side B
A4 US
US
A4
US
A4
A4 US
