rotork Remote Control Series User Manual

- 4 -
E4L E4
H L H L
RC210 90 68 120 68
RC220-RC265 90 110 120 110
RC270-RC280,
RC88
100 160 130 160
RCG90-RCG100 155* 200* 185* 200*
Tabell 14pt bold
Bold på rubriker uppe, allt under ska vara regular.
Allt utom spalten med RC-förteckningar ska vara
centrerat i våg och lodrätt. RC-spalten ska vara
vänsterlagd.
Strl på texten varierar beroende på utrymme men
10pt är standard
www.rotork.com www.remotecontrol.se
What is DEAD BAND ?
It’s an area/band where no action occurs due to the actuator input.
If the user inputs 12mA (50%), the actuator is supposed to stop exactly at 50% poaition. The actuator repeats from open to close in
order to stop at 50% position at this point.
This is what we call hunting, and if the hunting effect repeatedly occurs the motor can be damage. Therefor a dead band is set to have
some area in order to prevent this from happening.
It’s set to have 0.05mA per gradation. If it is at 1PH when shipped from the factory, it is set to have a 0.2mA dead band. If it is at 3PH,
on the other hand, it is set to have a 0.3mA dead band.
ex) If it is set to have a 0.2mA dead band, the actuator is positioned between 11.8mA to 12.2mA.
In case the actuator stops at the position of 12.1mA, the second least movement area will be at 12.3mA. At this position no action
occurs even when there is the input signal.

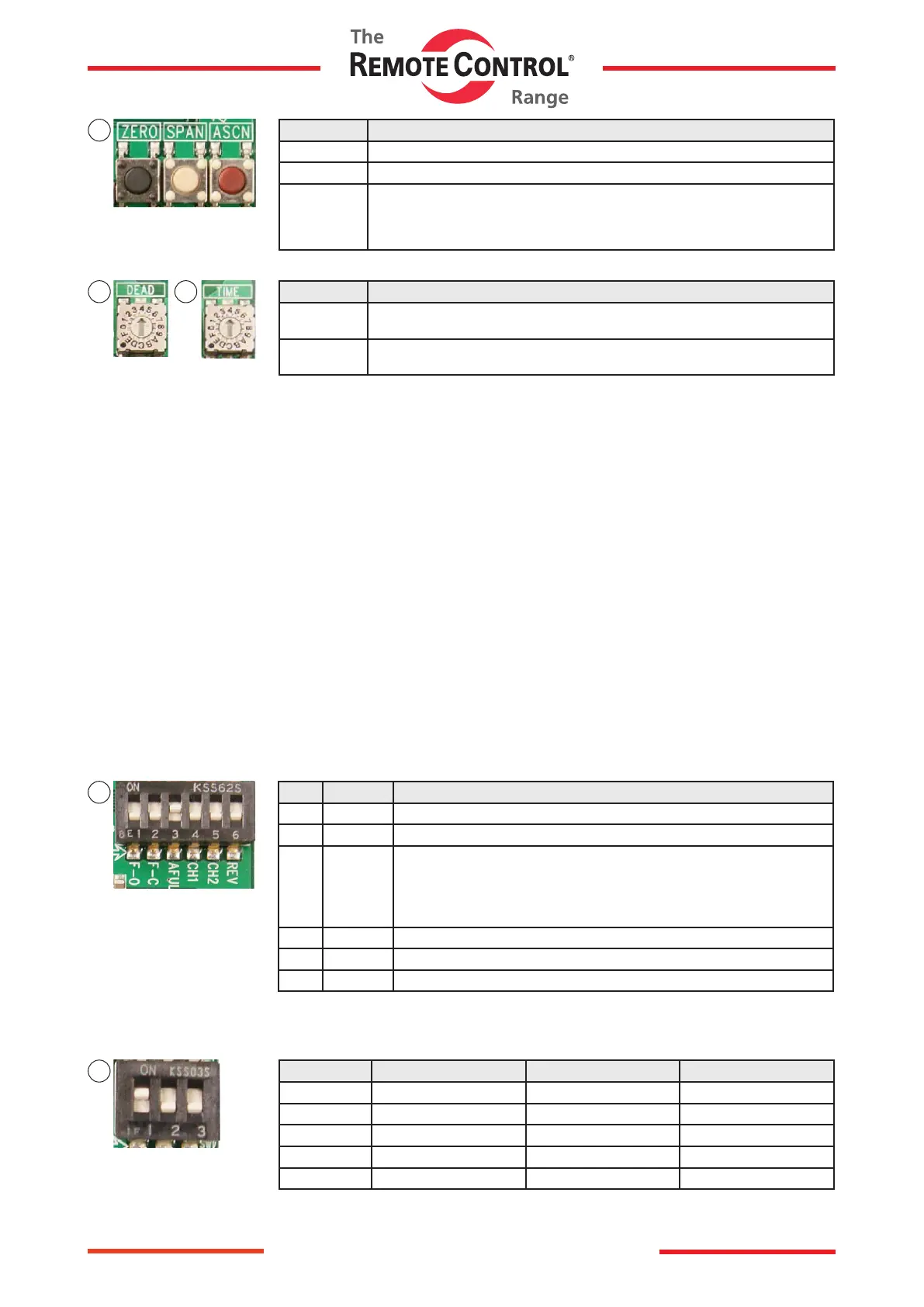

Name Spec.
ZERO Close manual control button / Input module button
SPAN Open manual control button / Input module button
ASCN AUTO SCAN BUTTON (ACTUATOR automatic control button) delivered from
the factory the resistance value of potentiometer may can be changed if the user
modies its limit setting. Please make sure to press the autoscan button for at
least 2 seconds before operating proportional control.
1
32
Name Spec.
DEAD
BAND
Mechanical steps at least
(0.2ma)
TIME
DELAY
Modulating starting time
(1sec)
What is DELAY TIME ?
This is when there is an instant noise or disturbance from the outside affectin the input signal and therefore the ACTUATOR can’t
function. The delay time setting is to prevent this from happening. If the input signal does not change for more than the time set, the
ACTUATOR will kick in. The setting for the delay time is 0.5 seconds per gradation. When shipped from the factory the delay time is set
at 1 second.
DIP SWITCH
4
No. Name Spec.
1 F O Fail Open
2 F C Fail Close
3 A FULL
A Full
3.8 ~ 4.3
Input Fully Close
19.7 ~ 20.2
Input Fully Open
4 CH1 Discretion Setting
5 CH2 Manual Setting
6 REV Reverse Action
INPUT SIGNAL SELECTION
5
INPUT 1 2 3
4-20mA ON OFF OFF
2 - 10V OFF ON OFF
0 - 5V OFF OFF ON
0 - 10V OFF ON ON
1 - 5V OFF OFF OFF
