rotork Remote Control Series User Manual

- 8 -
E4L E4
H L H L
RC210 90 68 120 68
RC220-RC265 90 110 120 110
RC270-RC280,
RC88
100 160 130 160
RCG90-RCG100 155* 200* 185* 200*
Tabell 14pt bold
Bold på rubriker uppe, allt under ska vara regular.
Allt utom spalten med RC-förteckningar ska vara
centrerat i våg och lodrätt. RC-spalten ska vara
vänsterlagd.
Strl på texten varierar beroende på utrymme men
10pt är standard
www.rotork.com www.remotecontrol.se
5

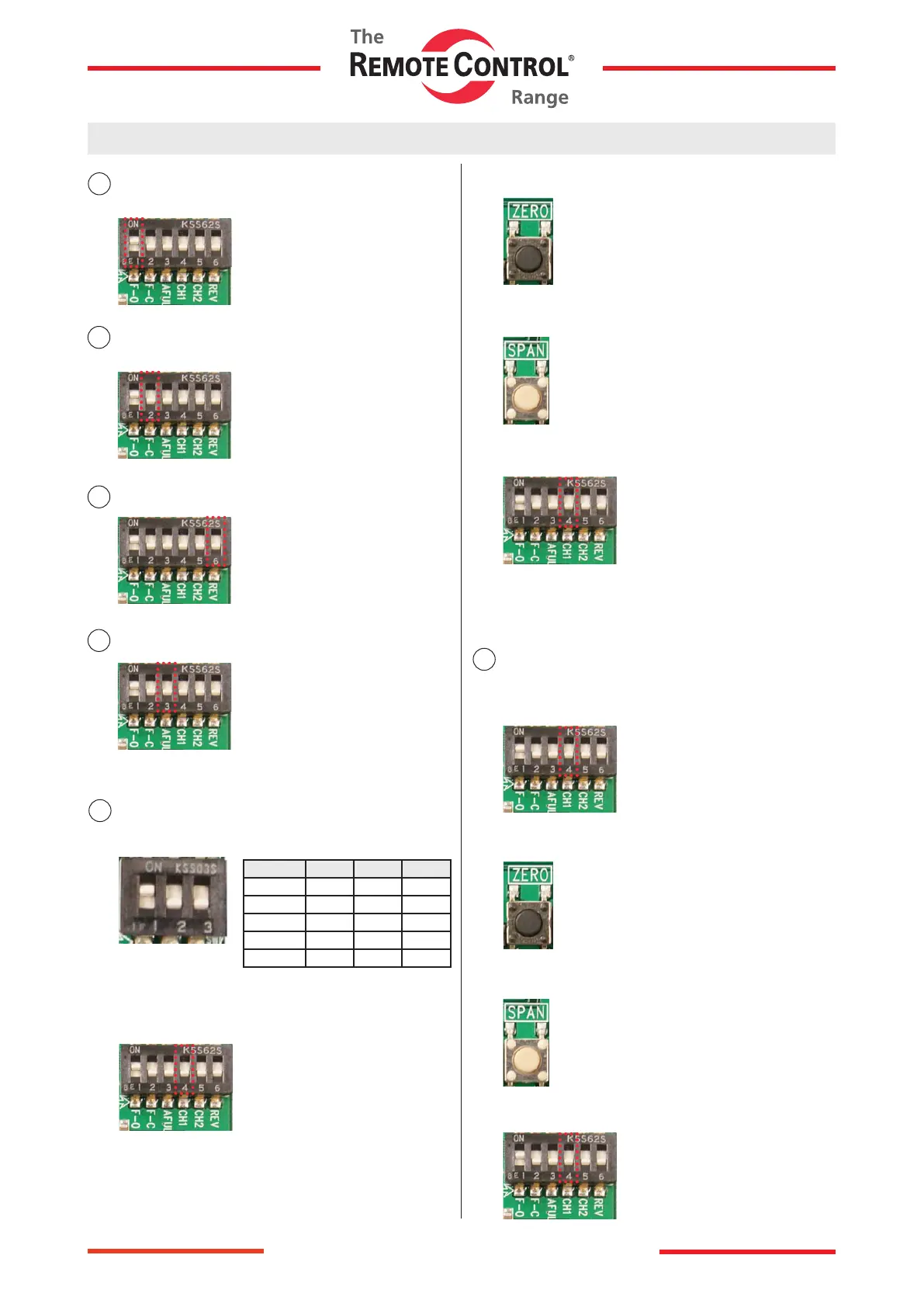

INPUT is at 4-20mA 0-10V or 0-5V when change
DIP SWITCH setting to change to t the table
1. DIP SWITCH Change
INPUT 1 2 3
4-20mA ON OFF OFF
2 - 10V OFF ON OFF
0 - 5V OFF OFF ON
0 - 10V OFF ON ON
1 - 5V OFF OFF OFF
2. Optional Modulation
DIP SWITCH No.4 Button ON
3. 0V input, Push the ZERO BUTTON
ACTUATOR CLOSE
4. After the 5V or 10V input, SPAN BUTTON push
ACTUATOR OPEN
5.
DIP SWITCH No.4 Button OFF
6. 0-10V or 0-5V input, to verify that the normal operation.
6
INPUT 4-20mA (0-10V) or 0-5V and 6-18mA (1-9V)
If you want to change a current signal
1. Optional Modulation
DIP SWITCH No.4 Button ON
2. 6mA input, Push the ZERO BUTTON
ACTUATOR CLOSE
4. After the 18mA input, SPAN BUTTON push
ACTUATOR OPEN
5.
DIP SWITCH No.4 Button OFF
Other Settings
1
INPUT in case of error, ACTUATOR FULL OPEN
automatically when
DIP SWITCH No.1 Button ON
2
INPUT in case of error, ACTUATOR FULL CLOSE
automatically when
DIP SWITCH No.2 Button ON
3
When the ACTUATOR reverse setting
DIP SWITCH No.6 Button ON
4
A FULL function is used
DIP SWITCH No.3 Button ON
If the input signal is at 3.8~4.3mA,
the ACTUATOR turns to a FULL
CLOSE.
If the input signal is at 19.7~20.2mA,
the ACTUATOR turns to a FULL
OPEN.
