Operating Instructions 2 SG9M Manual
Operating Instructions
Mounting Tool Sharpener:
Mount tool sharpener on right hand side of
machine using the cap screw provided with
machine.

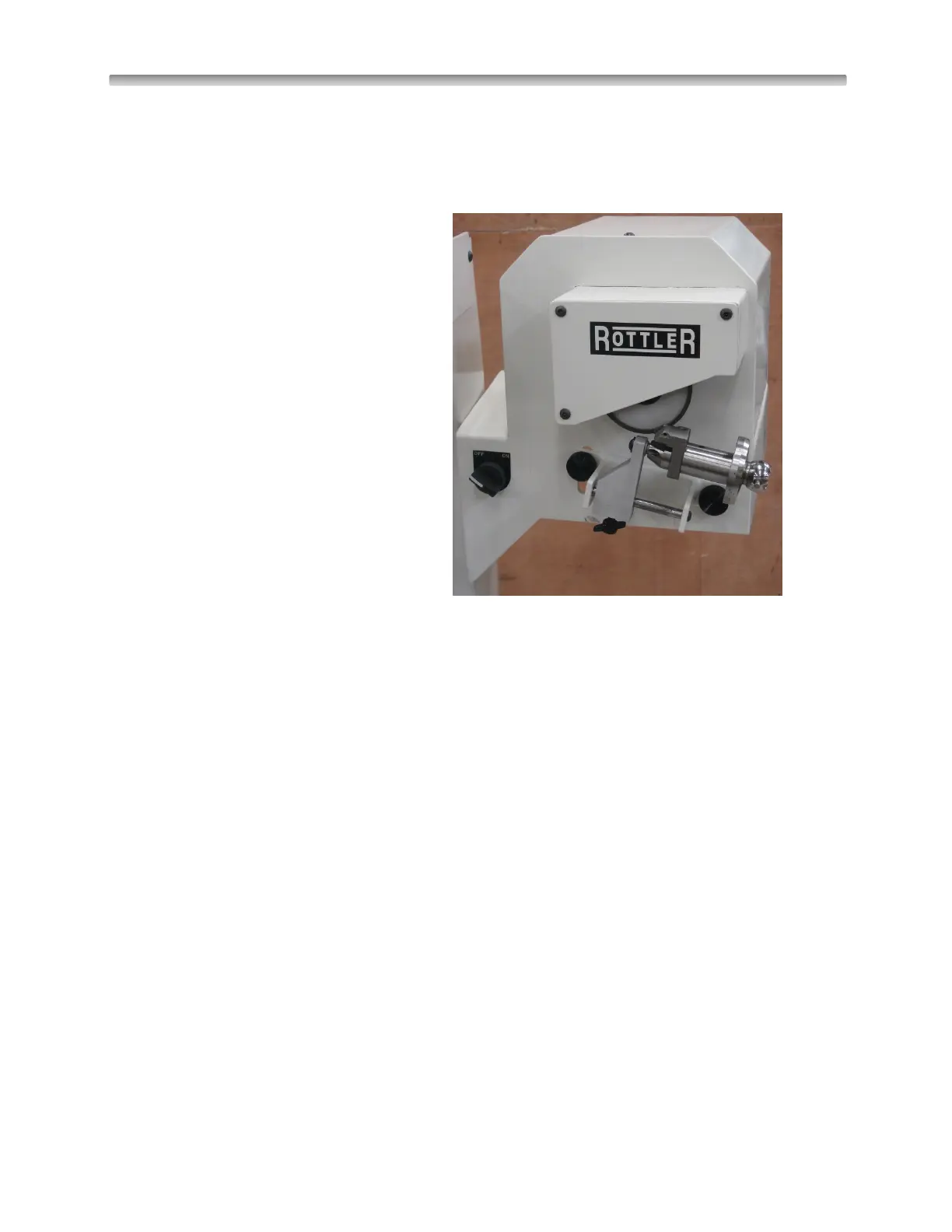

Rottler Tool Bit Sharpener
When you sharpener the Rottler form Carbide
bits, consists in restoring the tool cutting angle
by grinding the face.
To sharp the carbide bit must be fitted on the bit
holder also fitted on the tool holder.
The tool holder will be placed on the adjustable
3/8 fixture of the tool sharpener.
Slide the tool holder on the fixture, and release
the adjusting knob.
Adjust the fixture to bring the carbide bit flat
against the grinding wheel.
Make sure the carbide tip face is perfectly
parallel to the wheel face by pushing it with the
thumb. Once a good setting is achieved, lock
the adjusting knob.
Before to start the grinding motor, move the
carbide bit away from the wheel by rotating the
tool holder. The motor should then be started
and the carbide tip face will just be cleaned.
There is no need to remove a lot of stock from the carbide bit. Sharpening only consists in providing a
new cutting face.
