Operating Instructions 5 SG9M Manual
Overhead Cam U Clamp System

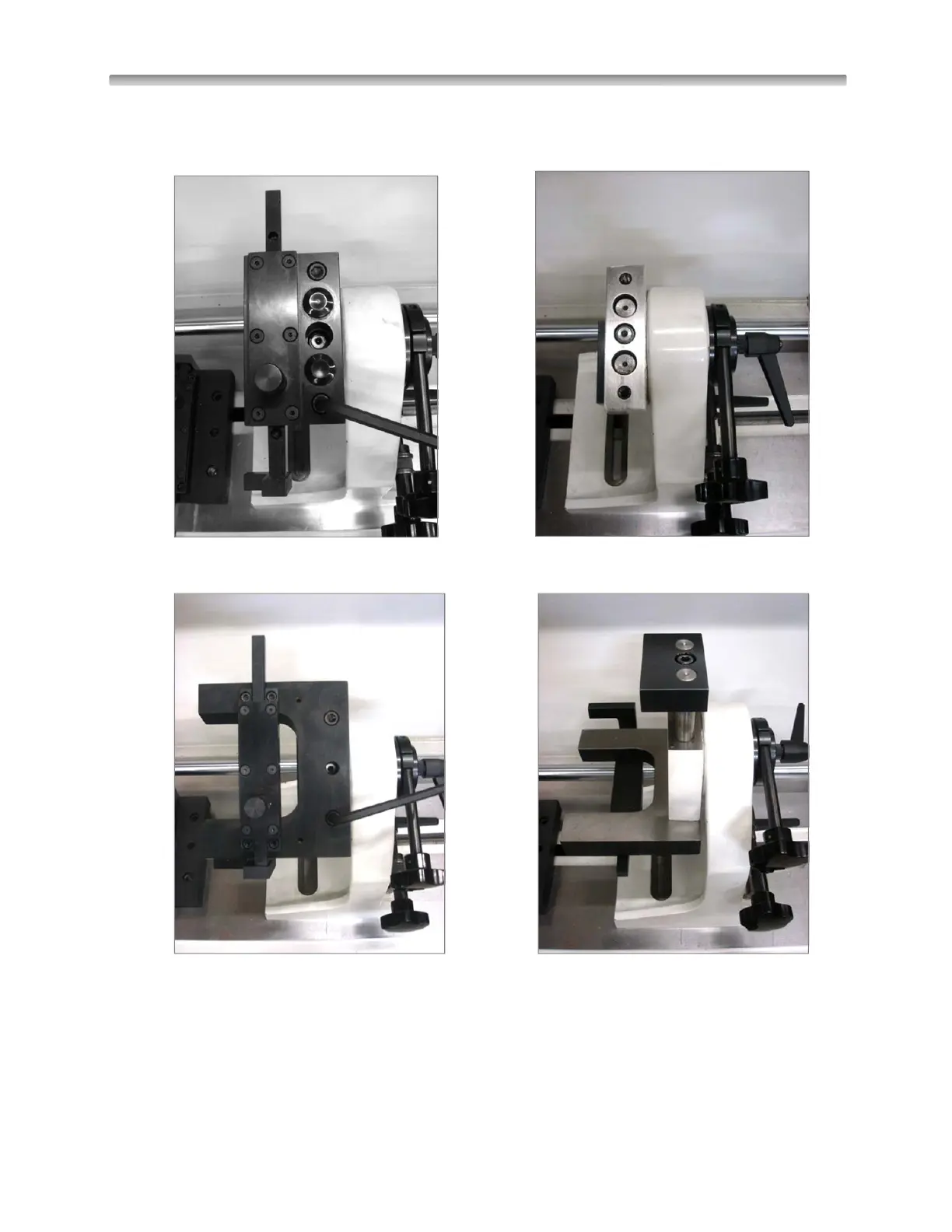

Using 5/15” Allen wrench, remove the existing lower fixed plate on the 360 degree fixture (left and right)
Install the U Clamp, you must use the two bolts included with the fixture and make sure is good and tight
The cylinder head gasket surface must be against the machined surface of the U Clamp Fixture; Slide the
stopper rod equally and push the cylinder heads against the stopper rods
Note: for some cylinder heads, you make need a spacer against between the cylinder head and
the stopper rod (not included)
