6.96mm (.2740”). In order for the pilot to fit most all valve guides, the first choice could be FCP0699 to
give .01mm (0.0004”) clearance. If the valve guide is used and has some wear, then the second choice of
pilot could be FCP0700(0.2756”).
Rottler makes 3 sizes of shanks of pilots:
6.00mm (0.2362”) for small valves guides 6mm (0.236”) and below. The part number for these pilots is
FCPM.
0.375” (9.52mm) for common size valve guides, 6-14mm (.236-.625”). The part number for these pilots is
FCP.
20mm (0.7874mm) for large valve guides for SG80A machine. These pilots are made to order
specifications.

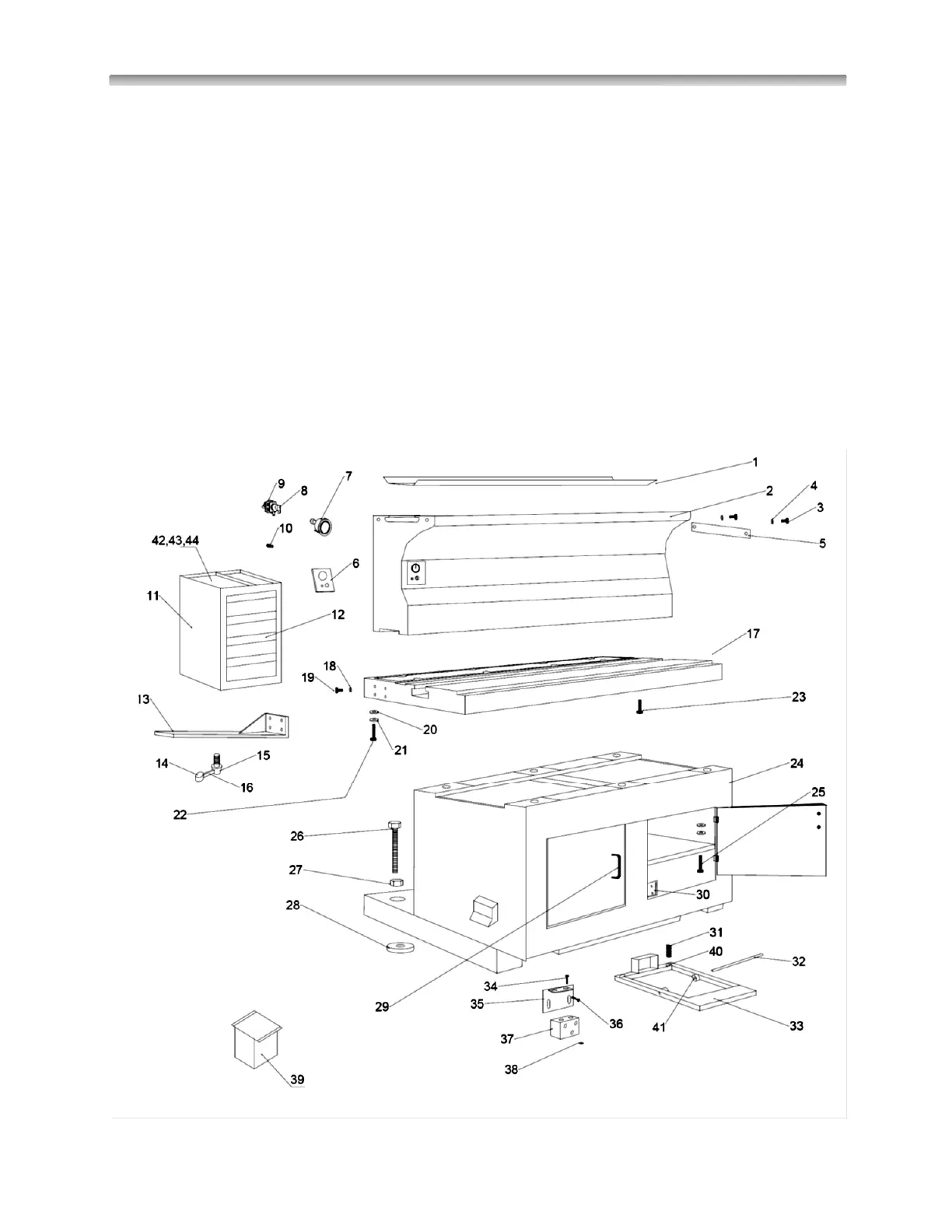

Base, Table and Riser Assembly
