Machine Parts 16 SG9M Manual

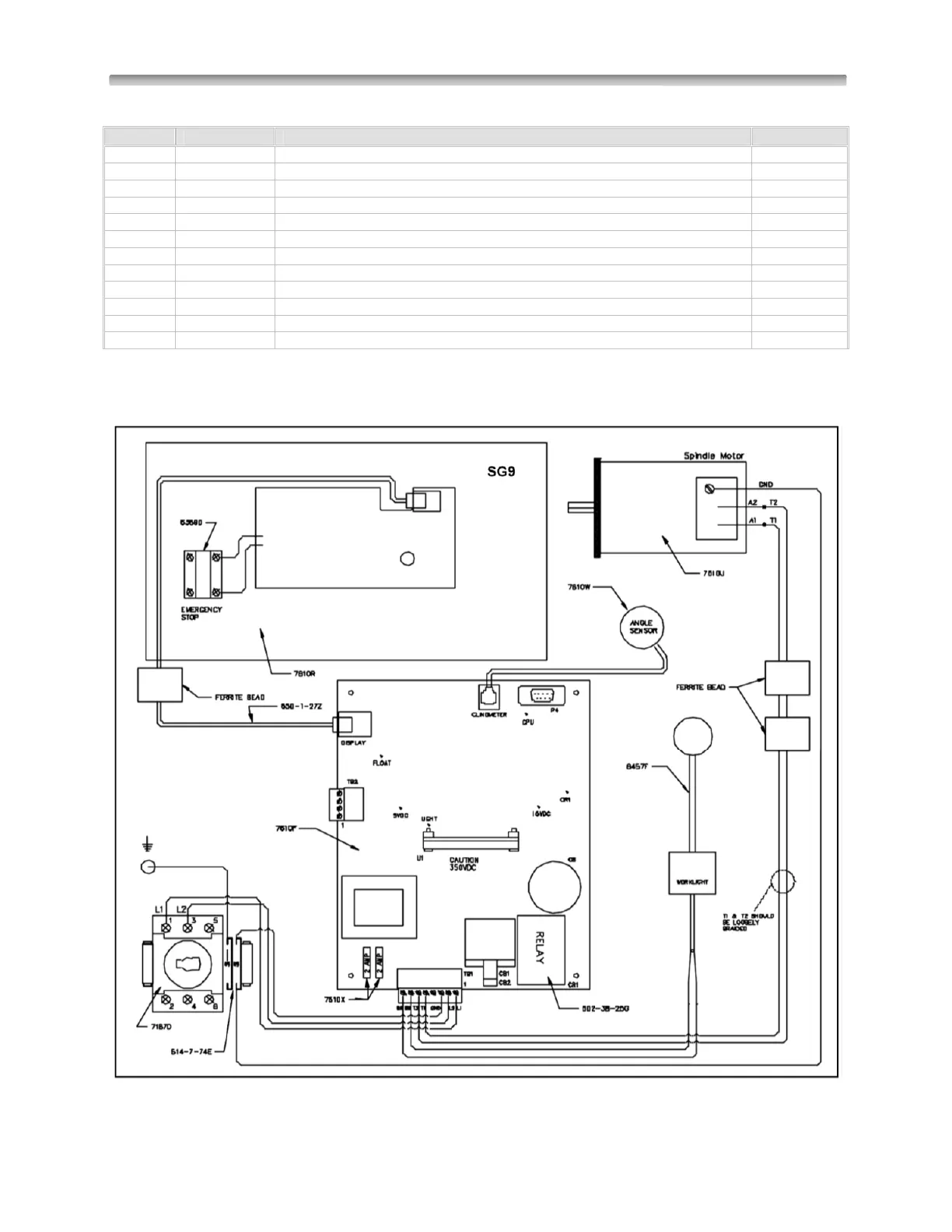

SG9M Electric Drawing
S. NO. PART NO. DESCRIPTION QTY/M/C
55 430-948 TAKE UP ROD 2
56 430-948A TAKE UP ROD ( 1/4” ) 2
57 430-943S TUBE (SMALL) 2
58 430-944S PARALLEL FLAT 2
59 DOWEL PIN (1/4” X 1”) (PURCHASED) 2
60 VGS-968 WASHER 2
61 430-942-A KNOB 2
62 430-944-II LOCATING BLOCK 2
63 430-935-I STOP PLATE R. H. 1
64 430-937-I STOP PLATE L. H. 1
65 430-962-2 KNOB 2
66 430-903 SCREW 5/16” X 1/2” LONG 2
