Operating Instructions 6 SG9M Manual

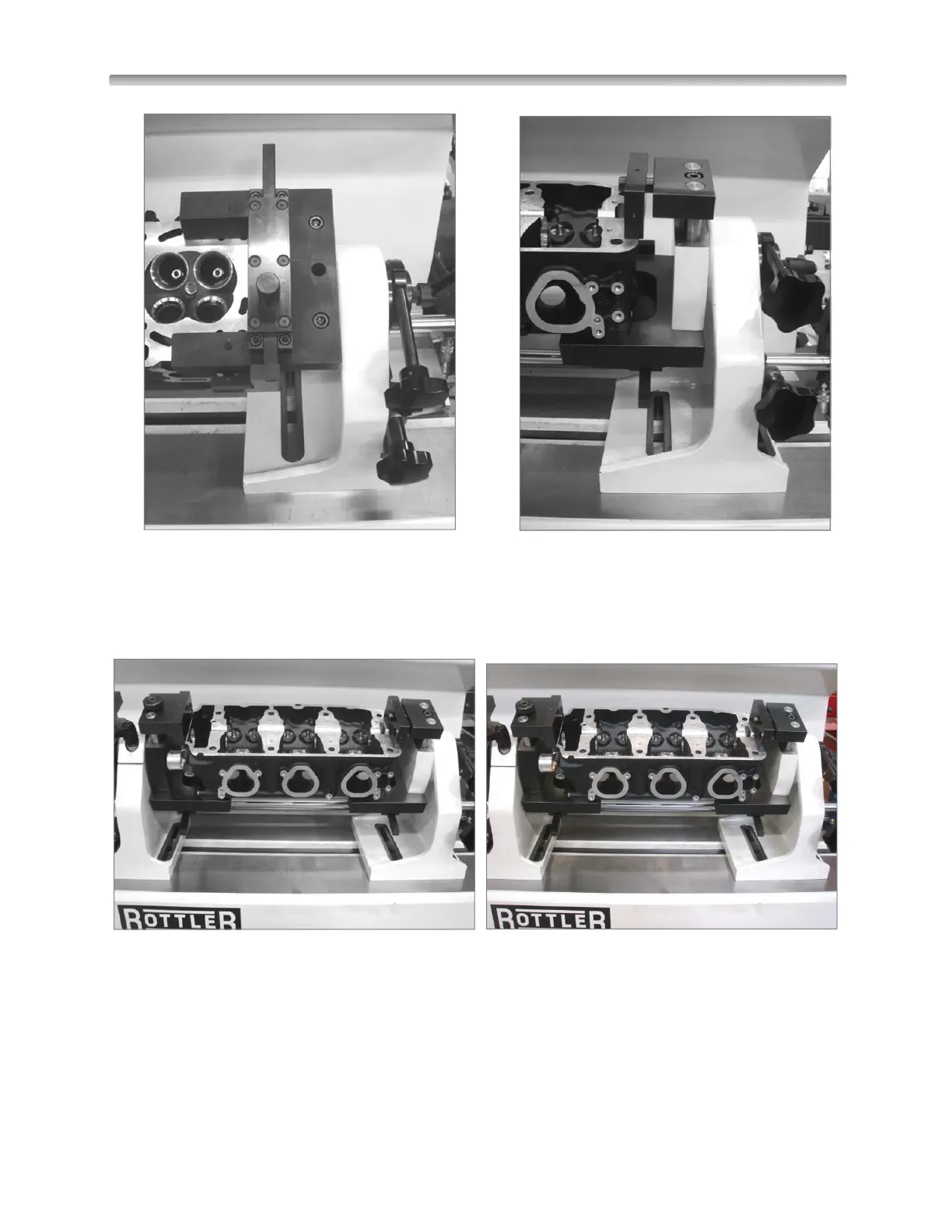

The Quick-Clamp frame is mounted between the trunions and clamped using the clamping plates. (See
Pictures) The cylinder head is then held to the frame with the swivel clamp assemblies through the
appropriate head bolt holes or used the standard clamp plates.
