Troubleshooting 4 SG9M Manual
Adjusting and aligning the outer spindle on SG models
There are 2 brass guide shoes located on the guide plate on top of the spindle that align the rack gear on
the back of the spindle with the pinion gear that moves the spindle up and down.
Lower the spindle to the center position of travel.
Clean and lightly lubricate sliding guide surfaces with grease. Adjust brass guide shoes on guide plate so
that there is no twisting movement. Run the spindle through its full travel to confirm that there is no
binding.

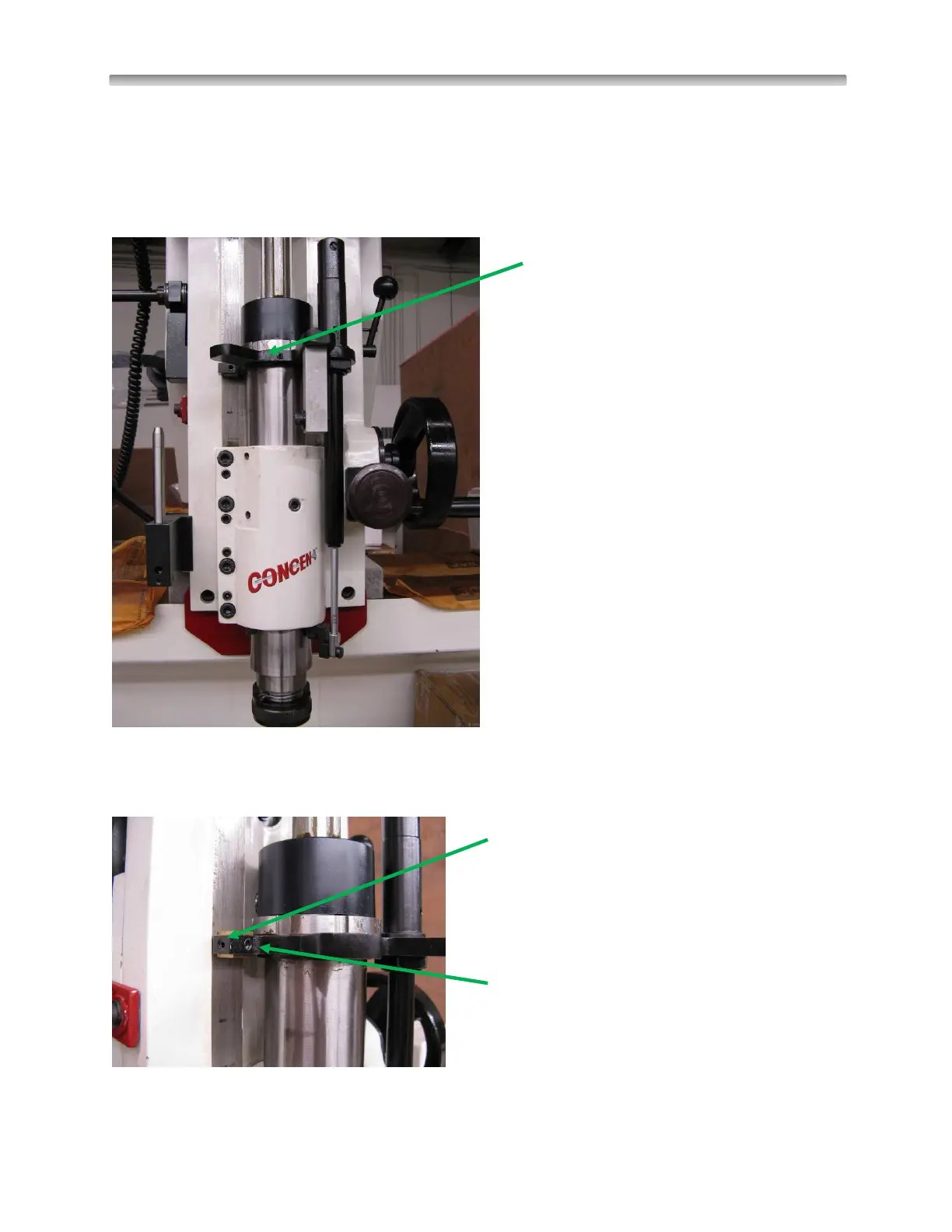

Check the guide plate at the top of the
spindle, tighten if necessary.
Loosen locking screw to adjust brass guide
shoe. Tighten after adjusting.
Use adjusting screw to adjust brass guide
shoe.
