RuiDa RDC644XG User Manual

User
’
s Manual of RDC644XG Control System
SHENZHEN RUIDA TECHNOLOGY
33
 Graph Display Area: To display the whole file’s track, and display the running track.
 Running parameters: To display the running file
’
s file number, speed, max power
etc.;
 Coordinate: To display the current coordinate of X,Y and Z axes
 Graph layer parameters: To display the layers
’
information of the current file, such
as max or min power, speed etc.. When system is idle, dblclick the layer, then users can
change the layer’s parameters and the changing would be saved.
 Running Status: To display the current status of the machine, such as Idle, Run,
Pause, Finish, etc.;
 Running Progress Bar: To display the progress bar of the current running file;
 Working Number: To accumulate the work number of the current file.
 File Dimension: To display the dimension of the current file;
 Net status: To display the connecting status of the Ethernet.
When work is Idle or finished, all keys can be pushed, users can select a file to run, set some
parameters, preview to a select file etc. But, when work is running or paused, some keys don’t
respond when they are pushed.

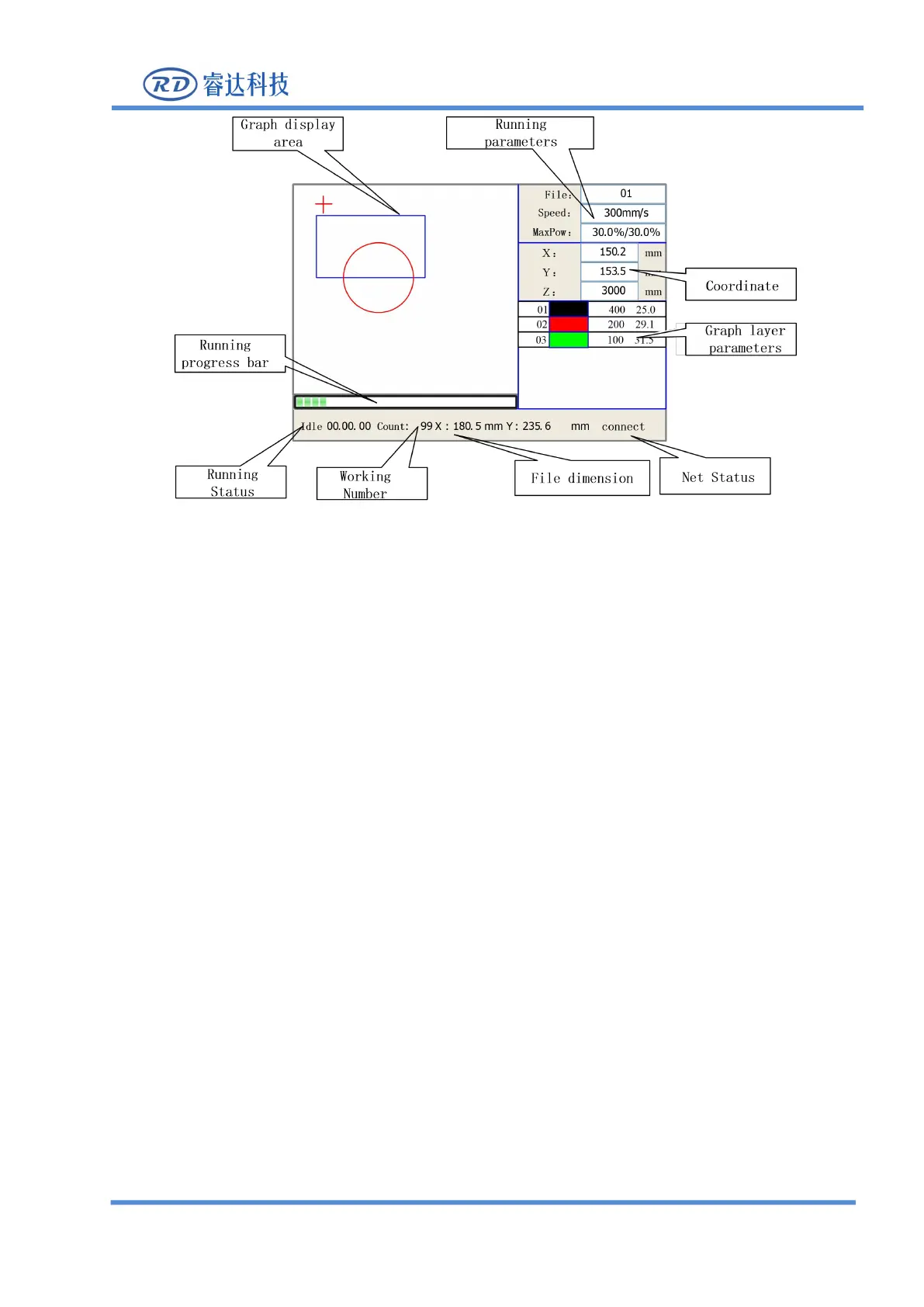

Figure 8.2-1
